CAM CHAIN

GSXR1100 1988 (J) (E02 E04 E06 15 16 17 18 21 22 24 25 34 39 53)

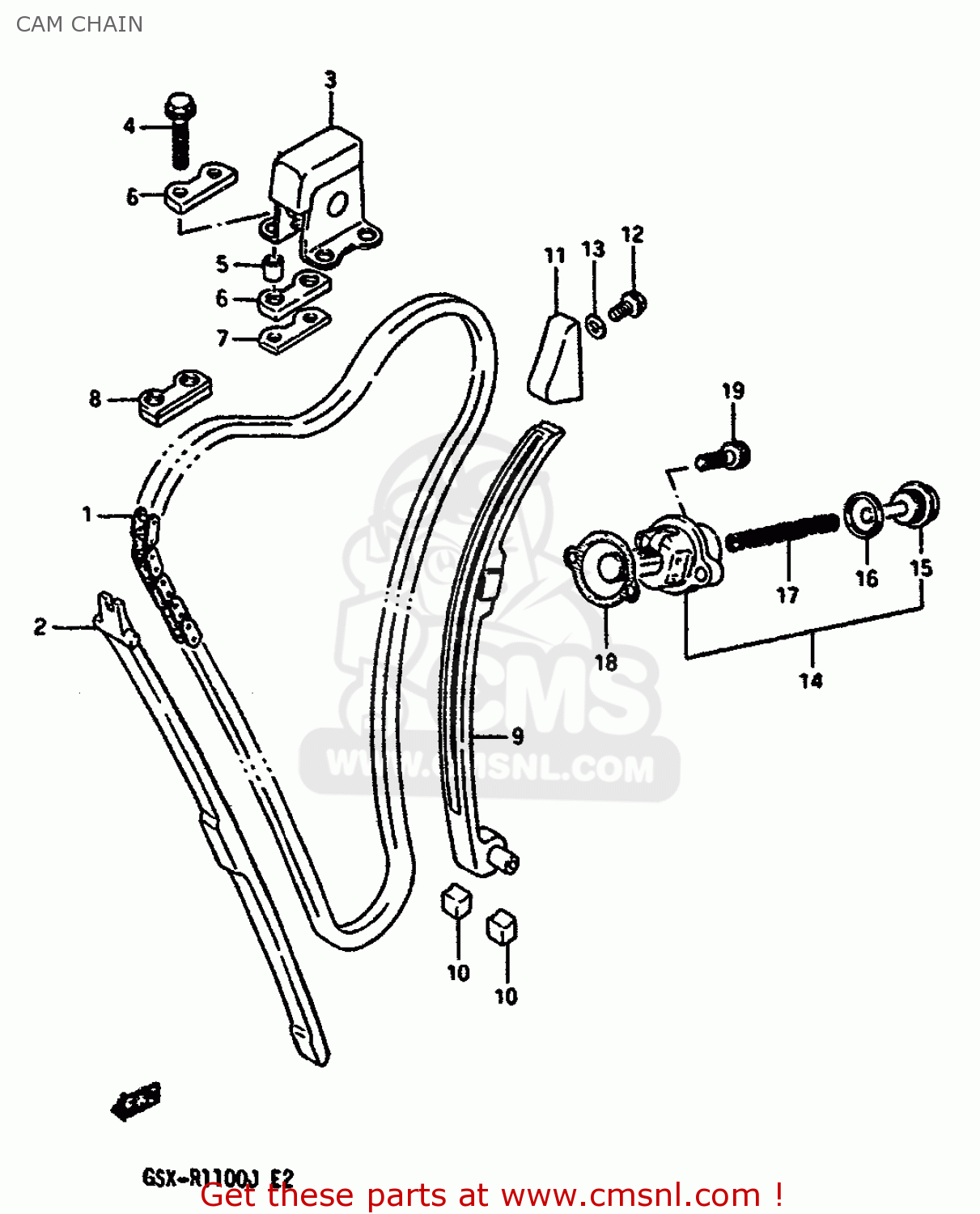

Cam chain diagram GSXR1100 1988 (J) (E02 E04 E06 15 16 17 18 21 22 24 25 34 39 53)

prices are in EUR

ref

part #

description

quantity

1276006B00
ref: 1

CHAIN,CAMSHAFT DRIVE

€ 114.50

1277106B01
ref: 2

GUIDE,CAM CHAIN NO.1

€ 37.00

1278006B00
ref: 3

IDLER,CAM CHAIN

€ 606.50

0151706307
ref: 4

BOLT

€ 2.00

0918006167
ref: 5

SPACER (6,8X10X9.4)

€ 2.50

6-1

1278827A00
ref: 6-1

GUIDE,CAM CHAIN

€ 15.00

6-2

1278827A00
ref: 6-2

GUIDE,CAM CHAIN

€ 15.00

1278906B00
ref: 7

PLATE,CAM CHAIN IDLER

€ 2.00

1278806B10
ref: 8

GUIDE,CAM CHAIN

€ 14.50

1281006B02
ref: 9

TENSIONER,CAM CHAIN

€ 66.00

1281434200
ref: 10

CUSHION,CAM CHAIN TENSIONER

€ 6.50

1279106B01
ref: 11

GUIDE,CAM CHAIN NO.2

€ 59.00

0151706105
ref: 12

BOLT

€ 2.50

0916806023
ref: 13

GASKET(5.8X13X1.2) (NAS)

€ 2.00

1283006B00
ref: 14

ADJUSTER ASSEMBLY,TENSIONER

€ 622.00

1283427A00
ref: 15

PLUG

€ 20.50

1283227A00
ref: 16

GASKET (NAS)

€ 5.50

1283306B00
ref: 17

SPRING

€ 17.00

1283727A00
ref: 18

GASKET,TENSIONER ADJUSTER (NAS)

€ 8.50

0711006255
ref: 19

BOLT

€ 3.00
