HEADLAMP (MODEL J E34)

GSXR1100 1988 (J) (E02 E04 E06 15 16 17 18 21 22 24 25 34 39 53)

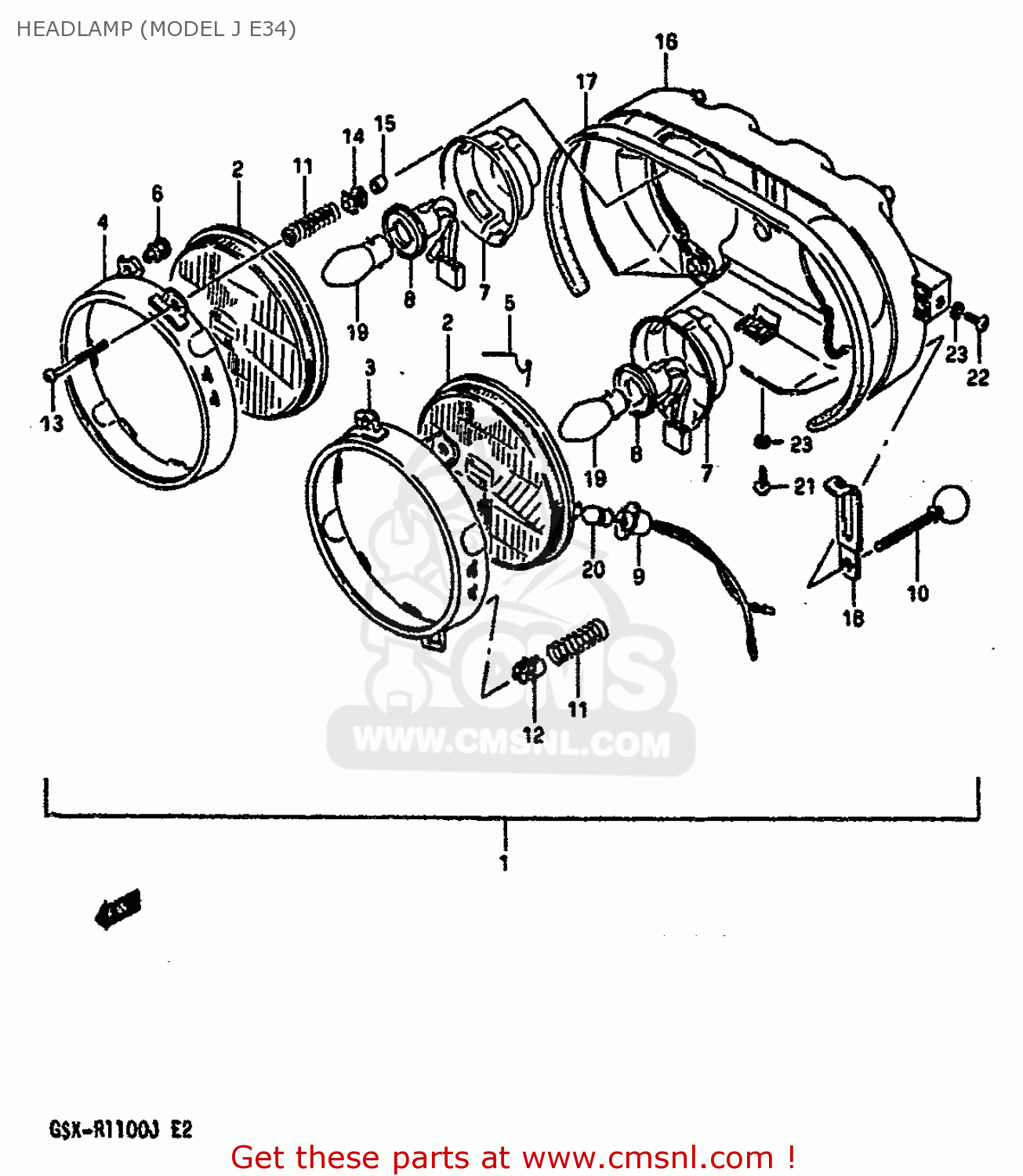

Headlamp (model j e34) diagram GSXR1100 1988 (J) (E02 E04 E06 15 16 17 18 21 22 24 25 34 39 53)

prices are in EUR

ref

part #

description

quantity

3510007B20999
ref: 1

HEADLAMP ASSY

€ 0.00

3512107B00
ref: 2

UNIT

€ 0.00

3512627A00
ref: 3

RING,RETAINING,LEFT

€ 30.50

3512727A00
ref: 4

RING,RETAINING,RIGHT

€ 24.00

3512846720
ref: 5

SPRING

€ 4.50

3516204A00
ref: 6

SCREW,SPHERICAL

€ 2.00

3517348540
ref: 7

COVER, SOCKET

€ 16.00

3517136650
ref: 8

SOCKET

€ 27.00

3611833670
ref: 9

SOCKET & CORD

€ 11.50

3515304A00
ref: 10

SCREW,ADJUSTER

€ 3.50

3515407B20
ref: 11

SPRING

€ 5.50

3515227A00
ref: 12

NUT

€ 3.00

3515104A00
ref: 13

SCREW,ADJUSTER

€ 4.00

3515504A00
ref: 14

NUT

€ 5.50

3515843400
ref: 15

CAP,SCREW

€ 2.00

3524006B00
ref: 16

HOUSING,HEADLAMP

€ 76.50

3524227A00
ref: 17

GASKET (NAS)

€ 12.50

0940405401
ref: 18

CLAMP

€ 2.50

0947112020
ref: 19
EXECUTED LOCALLY

BULB(12V35/35W)

€ 108.50

0947112051
ref: 20
EXECUTED LOCALLY

BULB (12V,3W)

€ 0.00

0211206166
ref: 21

SCREW

€ 2.00

0211206106
ref: 22

SCREW

€ 1.50

0832121066
ref: 23

WASHER,LOCK

€ 2.00
