CARBURETOR (MODEL J)

GSXR1100 1988 (J) (E02 E04 E06 15 16 17 18 21 22 24 25 34 39 53)

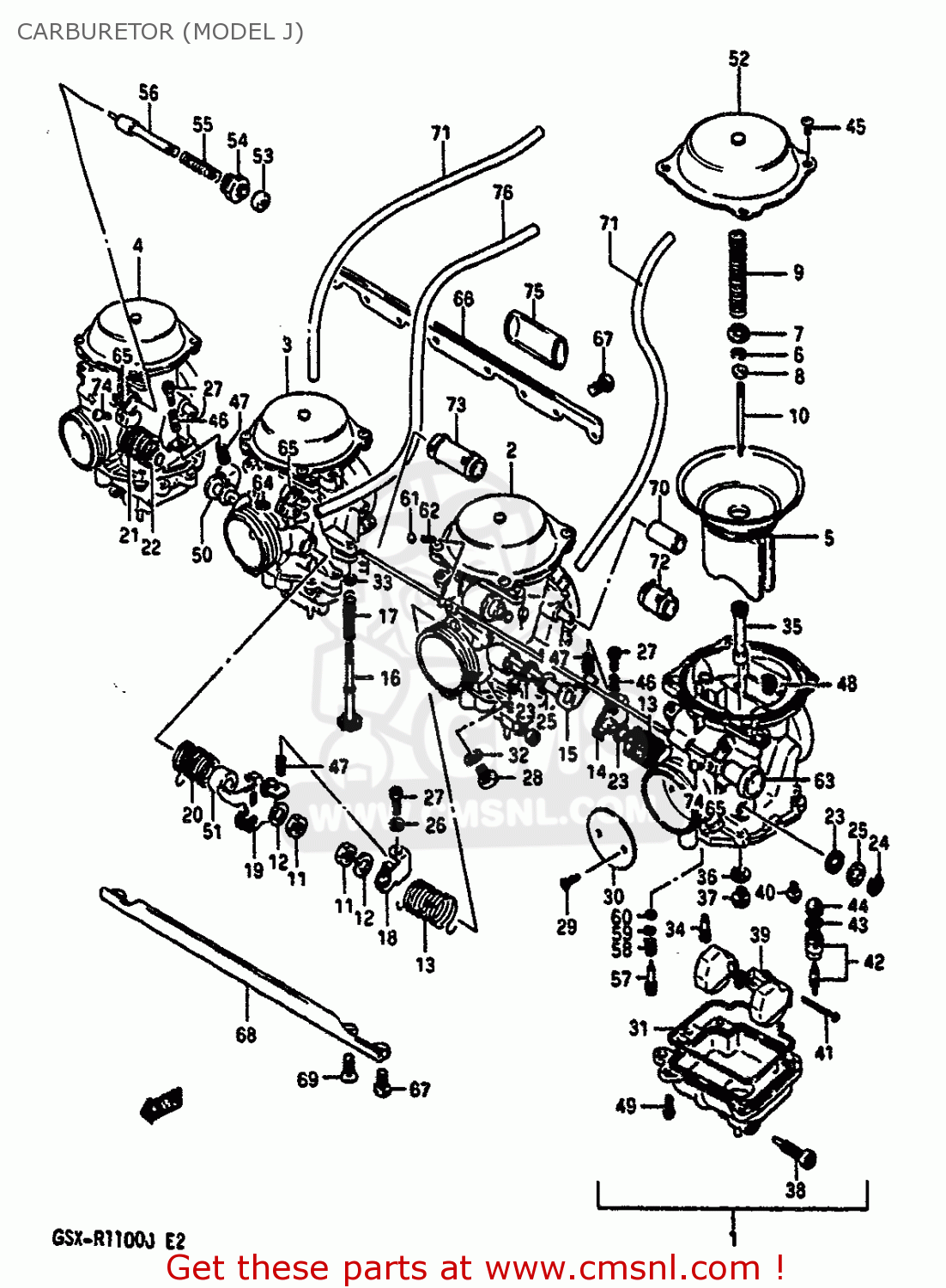

Carburetor (model j) diagram GSXR1100 1988 (J) (E02 E04 E06 15 16 17 18 21 22 24 25 34 39 53)

CARBURETOR (MODEL J) GSXR1100 1988 (J) (E02 E04 E06 15 16 17 18 21 22 24 25 34 39 53)
CARBURETOR (MODEL J) GSXR1100 1988 (J) (E02 E04 E06 15 16 17 18 21 22 24 25 34 39 53)
CARBURETOR (MODEL J) GSXR1100 1988 (J) (E02 E04 E06 15 16 17 18 21 22 24 25 34 39 53)
prices are in EUR
ref
part #
description
quantity
1-1
1320106B60
ref: 1-1
CARBURETOR ASSY,LH
€ 376.00
1-2
1320106B80
ref: 1-2
E18
CARBURETOR ASSY,LH
€ 0.00
1-3
1320106B90
ref: 1-3
E22
CARBURETOR ASSY,LH
€ 376.00
1-4
1320107B00
ref: 1-4
E39
CARBURETOR ASSY,LH
€ 0.00
2-1
1320206B60
ref: 2-1
CARBURETOR ASSY,ML
€ 376.00
2-2
1320206B80
ref: 2-2
E18
CARBURETOR ASSY,ML
€ 0.00
2-3
1320206B90
ref: 2-3
E22
CARBURETOR ASSY,ML
€ 376.00
2-4
1320207B00
ref: 2-4
E39
CARBURETOR ASSY,ML
€ 376.00
3-1
1320306B60
ref: 3-1
CARBURETOR ASSY,MR
€ 376.00
3-2
1320306B80
ref: 3-2
E18
CARBURETOR ASSY,MR
€ 0.00
3-3
1320306B90
ref: 3-3
E22
CARBURETOR ASSY,MR
€ 376.00
3-4
1320307B00
ref: 3-4
E39
CARBURETOR ASSY,MR
€ 376.00
4-1
1320406B60
ref: 4-1
CARBURETOR ASSY,RH
€ 376.00
4-2
1320406B80
ref: 4-2
E18
CARBURETOR ASSY,RH
€ 0.00
4-3
1320406B90
ref: 4-3
E22
CARBURETOR ASSY,RH
€ 376.00
4-4
1320407B00
ref: 4-4
E39
CARBURETOR ASSY,RH
€ 376.00
5-1
1350006B00
ref: 5-1
DIAPHRAGM ASSY
1350006B00
€ 141.00
5-2
1350006B31
ref: 5-2
E18
DIAPHRAGM ASSY
€ 141.00
5-3
1350048B00
ref: 5-3
E39
DIAPHRAGM,CARBURETOR
€ 180.00
6
1339410010
ref: 6
CLIP
1339410010
€ 4.50
7
1338242A00
ref: 7
RING
1338242A00
€ 3.50
8
1338747010
ref: 8
RING
1338747010
€ 7.50
9
1341742A00
ref: 9
SPRING
1341742A00
€ 6.00
10-1
1338306B00
ref: 10-1
NEEDLE,JET
1338306B00
€ 17.00
10-2
1338306B20
ref: 10-2
E18
NEEDLE,JET (5D36-3)
€ 0.00
11
0831021086
ref: 11
ML,MR
NUT
€ 1.50
12
1360647070
ref: 12
ML,MR
WASHER
1360647070
€ 3.00
13
1357328A10
ref: 13
LH,ML
SPRING
€ 0.00
14
1355028A30
ref: 14
LH
SHAFT ASSEMBLY
€ 0.00
15
1355028A00
ref: 15
ML
SHAFT ASSEMBLY
€ 0.00
16
1356728A10
ref: 16
MR
ADJUSTER
€ 0.00
17
1327128A10
ref: 17
MR
SPRING
€ 6.00
18
1355328A00
ref: 18
ML
LEVER
€ 0.00
19
1355528A00
ref: 19
MR
LEVER ASSEMBLY
€ 0.00
20
1357328A00
ref: 20
MR
SPRING
€ 0.00
21
1357328A20
ref: 21
RH
SPRING
€ 0.00
22
1355028A20
ref: 22
RH
SHAFT ASSEMBLY
€ 0.00
23
1365151010
ref: 23
SEAL
1365151010
€ 4.00
24
1361744080
ref: 24
LH,RH
E RING
1361744080
€ 3.50
25
1355747070
ref: 25
GASKET,THROTTLE SHAFT (NAS)
1355747070
€ 4.00
26
1358295216
ref: 26
ML
NUT,THROTTLE ROD
1358295216
€ 6.50
27
1326752012
ref: 27
LH,ML,RH
SCREW
1326752012
€ 3.00
28
1360573000
ref: 28
SCREW
1360573000
€ 10.50
29
1360442A00
ref: 29
SCREW
€ 3.50
30-1
1355106B00
ref: 30-1
VALVE,THROTTLE (130)
€ 0.00
30-2
1355106B10
ref: 30-2
E18
VALVE,THROTTLE (125)
€ 0.00
31
1325142A00
ref: 31
O RING,FLOAT CHAMBER
1325142A00
€ 7.50
32
1324978100
ref: 32
WASHER
1324978100
€ 4.00
33
1343247090
ref: 33
MR
WASHER
1343247090
€ 2.50
34-1
0949242010
ref: 34-1
JET,PILOT(42.5)
0949242010
€ 8.50
34-2
0949232006
ref: 34-2
E18
JET,PILOT(32.5)
0949232006
€ 8.50
35-1
0949400536
ref: 35-1
JET,NEEDLE (O-9)
0949400536
€ 17.50
35-2
0949400535
ref: 35-2
E18
JET,NEEDLE (P-2)
0949400535
€ 19.50
36
1333244080
ref: 36
WASHER,NEEDLE NOZZLE
€ 2.50
37-1
0949126011
ref: 37-1
JET,MAIN(130)
0949126011
€ 11.50
37-2
0949125011
ref: 37-2
E22
JET,MAIN(127.5)
0949125011
€ 10.00
38
1324728A00
ref: 38
SCREW
1324728A00
€ 7.00
39
1325028A00
ref: 39
FLOAT
1325028A00
€ 33.00
40
1360243410
ref: 40
SCREW
1360243410
€ 2.50
41
1325492311
ref: 41
PIN,FLOAT
1325492311
€ 2.00
42
1337044500
ref: 42
VALVE ASSY,NEEDLE
1337044500
€ 40.50
43
1337444080
ref: 43
O-RING,NEEDLE VALVE
1337444080
€ 6.00
44
1337684110
ref: 44
FILTER
€ 6.50
45
0211204085
ref: 45
SCREW
0211204085
€ 2.00
46
1327128A00
ref: 46
LH,RH
SPRING
1327128A00
€ 4.00
47
1326896110
ref: 47
LH,ML,RH
SPRING,THROTTLE SCREW
€ 4.50
48-1
0949330003
ref: 48-1
JET,AIR(150)
0949330003
€ 13.00
48-2
0949325001
ref: 48-2
E18
JET,AIR(125)
€ 11.50
49
1360227A10
ref: 49
SCREW
€ 1.50
50
1355028A10
ref: 50
MR
SHAFT ASSEMBLY
€ 0.00
51
1357428A00
ref: 51
MR
RING
1357428A00
€ 4.50
52
1350228A00
ref: 52
COVER,DIAPHRAGM
€ 35.00
53
1368231210
ref: 53
CAP,STARTER VALVE
1368231210
€ 5.00
54
1341844080
ref: 54
GUIDE SCREW,PLUNGER
1341844080
€ 8.00
55
1341743010
ref: 55
SPRING
1341743010
€ 3.50
56
1341105320
ref: 56
PLUNGER ASSY
1341105320
€ 18.00
57
1327947070
ref: 57
EXCEPT E18
SCREW,PILOT
1327947070
€ 11.50
58
1326847070
ref: 58
EXCEPT E18
SPRING
1326847070
€ 5.00
59
1329129900
ref: 59
EXCEPT E18
WASHER
1329129900
€ 2.00
60
1329529900
ref: 60
EXCEPT E18
O RING,PILOT AIR SCREW
1329529900
€ 4.00
61
1359693010
ref: 61
BALL,CARBURETOR
1359693010
€ 3.50
62
1343406B00
ref: 62
SPRING
€ 6.50
63
1341028A00
ref: 63
SHAFT ASSEMBLY
€ 28.00
64
1360549330
ref: 64
SCREW
1360549330
€ 5.50
65
1342228A00
ref: 65
LEVER
€ 7.50
66
1362819C10
ref: 66
PLATE
€ 19.50
67
0211205128
ref: 67
SCREW
€ 2.50
68
1362819C00
ref: 68
PLATE
€ 21.00
69
0212205148
ref: 69
SCREW
€ 2.00
70
1368349160
ref: 70
L:400 18
HOSE,CARBURETOR
€ 26.00
71
1368428A00
ref: 71
ML,L:425 400 MR,L:42
HOSE
€ 13.00
72
1368027A00
ref: 72
HOSE SET (3X5X18)
€ 6.00
73
1368028A00
ref: 73
HOSE ASSY
1368028A00
€ 6.00
74
1360534390
ref: 74
SCREW
€ 3.50
75
1368428A10
ref: 75
HOSE
€ 6.50
76
1368306A20
ref: 76
HOSE
€ 6.50
