FUEL COCK

GSXR1100 1988 (J) (E02 E04 E06 15 16 17 18 21 22 24 25 34 39 53)

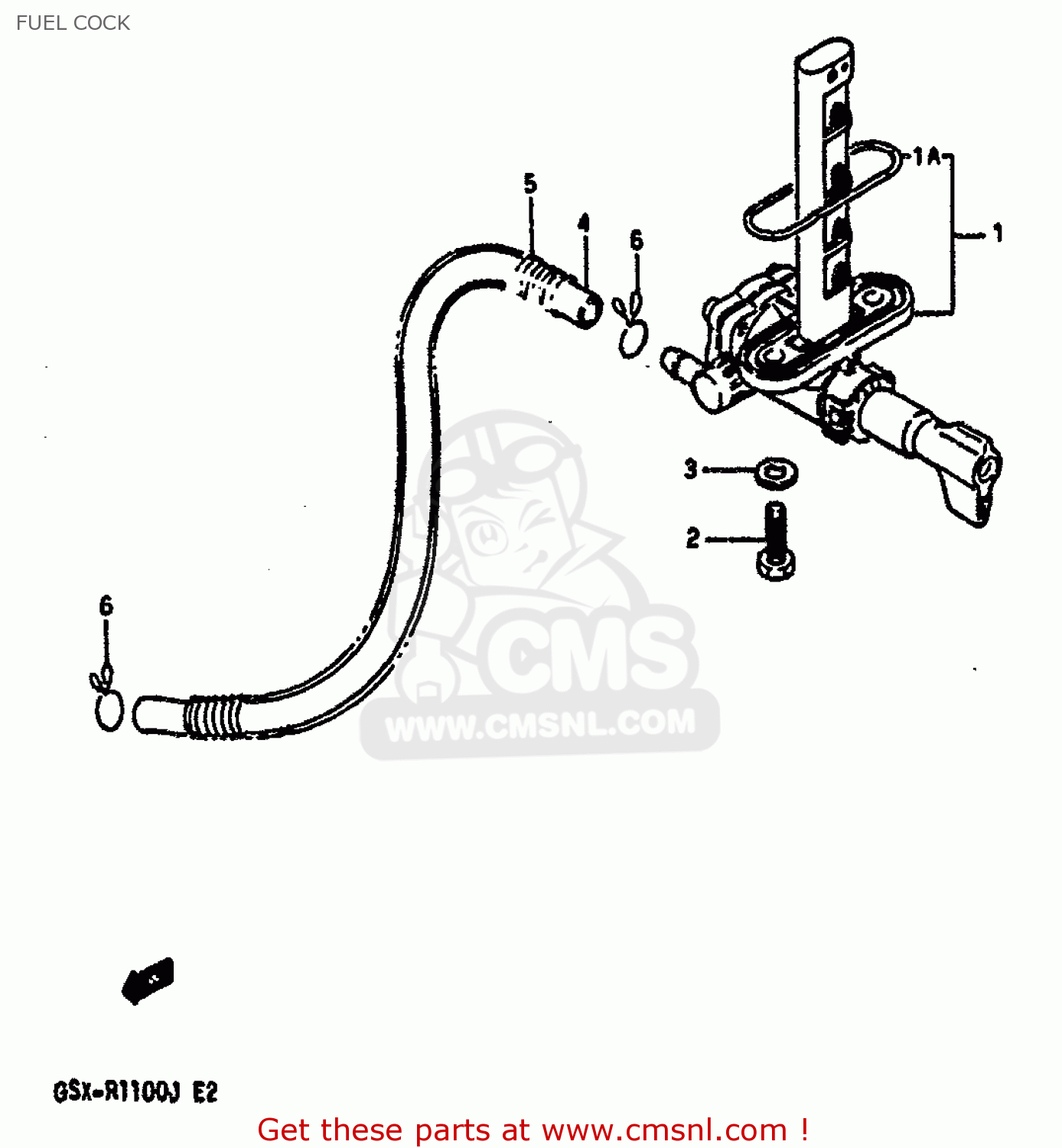

Fuel cock diagram GSXR1100 1988 (J) (E02 E04 E06 15 16 17 18 21 22 24 25 34 39 53)

FUEL COCK GSXR1100 1988 (J) (E02 E04 E06 15 16 17 18 21 22 24 25 34 39 53)

FUEL COCK GSXR1100 1988 (J) (E02 E04 E06 15 16 17 18 21 22 24 25 34 39 53)

prices are in EUR

ref

part #

description

quantity

1-1

4430028A01
ref: 1-1
MODEL G/H

COCK ASSEMBLY,FUEL

€ 131.50

1-2

4430028A02
ref: 1-2
MODEL J

COCK ASSY,FUEL

€ 131.50

1A

4434849170
ref: 1A

O RING

€ 3.50

2

0912806006
ref: 2

BOLT(6X20)

€ 2.00

3

0916806010
ref: 3

GASKET

€ 2.00

4-1

0934307073
ref: 4-1
MODEL G/H

HOSE

€ 17.50

4-2

093527010328A
ref: 4-2
MODEL J

HOSE

€ 17.50

5

0944013020
ref: 5

SPRING

€ 14.50

6-1

0940111410
ref: 6-1
MODEL G

(CA) CLIP

€ 2.50

6-2

0940110402
ref: 6-2
MODEL H/J

CLIP

€ 7.00
