CRANKSHAFT

GSXR1100 1988 (J) (E02 E04 E06 15 16 17 18 21 22 24 25 34 39 53)

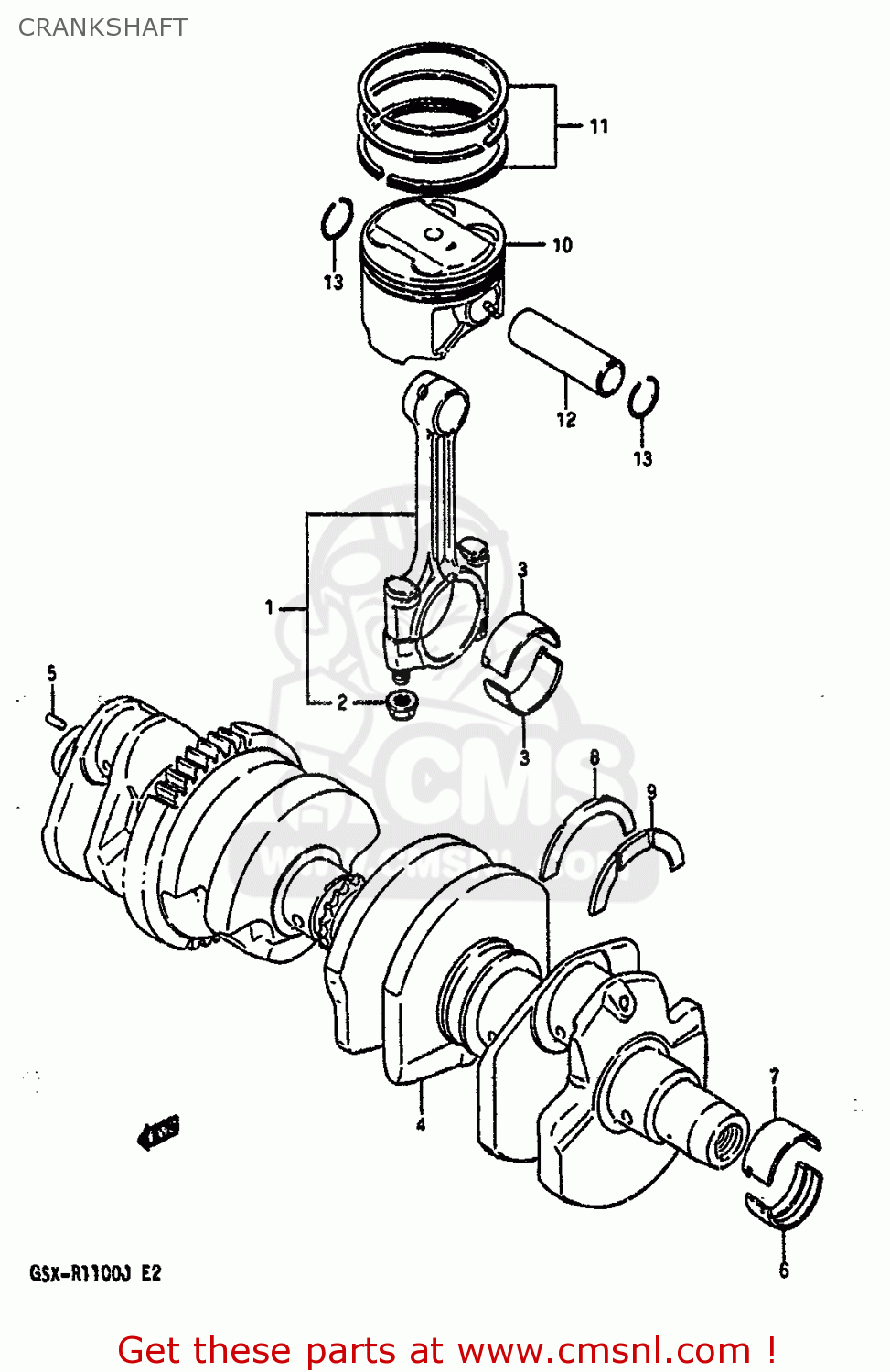

Crankshaft diagram GSXR1100 1988 (J) (E02 E04 E06 15 16 17 18 21 22 24 25 34 39 53)

CRANKSHAFT GSXR1100 1988 (J) (E02 E04 E06 15 16 17 18 21 22 24 25 34 39 53)
CRANKSHAFT GSXR1100 1988 (J) (E02 E04 E06 15 16 17 18 21 22 24 25 34 39 53)
CRANKSHAFT GSXR1100 1988 (J) (E02 E04 E06 15 16 17 18 21 22 24 25 34 39 53)
prices are in EUR
ref
part #
description
quantity
1
1216006B03
ref: 1
CONNECTING ROD ASSEMBLY
€ 167.00
2
0915909001
ref: 2
NUT
0915909001
€ 4.50
3-1
1216406B000A0
ref: 3-1
BEARING,CRANK PIN
1216406B000A0
€ 17.50
3-2
1216406B000B0
ref: 3-2
BEARING,CRANK PIN
1216406B000B0
€ 16.50
3-3
1216406B000C0
ref: 3-3
BEARING,CRANK PIN
1216406B000C0
€ 17.50
3-4
1216406B000D0
ref: 3-4
BEARING,CRANK PIN
1216406B000D0
€ 16.50
4
1222006B03
ref: 4
CRANKSHAFT
€ 1,849.50
5
0422104089
ref: 5
PIN
0422104089
€ 1.50
6-1
1222906B000A0
ref: 6-1
LOWER
BEARING,CRANKSHAFT LWR
1222906B000A0
€ 12.00
6-2
1222906B000B0
ref: 6-2
LOWER
BEARING,CRANKSHAFT LWR
1222906B000B0
€ 12.50
6-3
1222906B000C0
ref: 6-3
LOWER
BEARING,CRANKSHAFT LWR
1222906B000C0
€ 12.00
6-4
1222906B000D0
ref: 6-4
LOWER
BEARING,CRANKSHAFT LWR
1222906B000D0
€ 12.50
7-1
1222906B100A0
ref: 7-1
UPPER
BEARING,CRANKSHAFT UPR
1222906B100A0
€ 12.00
7-2
1222906B100B0
ref: 7-2
UPPER
BEARING,CRANKSHAFT UPR
1222906B100B0
€ 12.50
7-3
1222906B100C0
ref: 7-3
UPPER
BEARING,CRANKSHAFT UPR
1222906B100C0
€ 12.00
7-4
1222906B100D0
ref: 7-4
UPPER
BEARING,CRANKSHAFT UPR
1222906B100D0
€ 11.50
8
1222806B000B0
ref: 8
RH
PLATE,CRANK THRUST
€ 8.00
9-1
1222806B000A0
ref: 9-1
LH
PLATE,CRANK THRUST
€ 7.50
9-2
1222806B000B0
ref: 9-2
LH
PLATE,CRANK THRUST
€ 8.00
9-3
1222806B000C0
ref: 9-3
LH
PLATE,CRANK THRUST
€ 7.50
10-1
1211106B06
ref: 10-1
FROM 12111-06B05
PISTON (76.00MM)
1211106B06
€ 79.00
10-2
1211106B06050
ref: 10-2
OPT FROM 12111-06B05
PISTON (OS:0.5)
1211106B06050
€ 128.50
10-3
1211106B06100
ref: 10-3
OPT FROM 12111-06B05
PISTON (OS:1.0)
1211106B06100
€ 119.50
11-1
1214006B11
ref: 11-1
RING SET,PISTON
1214006B11
€ 81.50
11-2
1214006B11050
ref: 11-2
OPT
RING SET,PISTON (OS:0.5)
€ 75.50
11-3
1214006B11100
ref: 11-3
OPT
RING SET,PISTON (OS:1.0)
1214006B11100
€ 65.00
12
1215105A00
ref: 12
PIN,PISTON
1215105A00
€ 12.00
13
0938120004
ref: 13
CIRCLIP,PISTON PIN
0938120004
€ 2.00
