CYLINDER HEAD

GSXR1100 1988 (J) (E02 E04 E06 15 16 17 18 21 22 24 25 34 39 53)

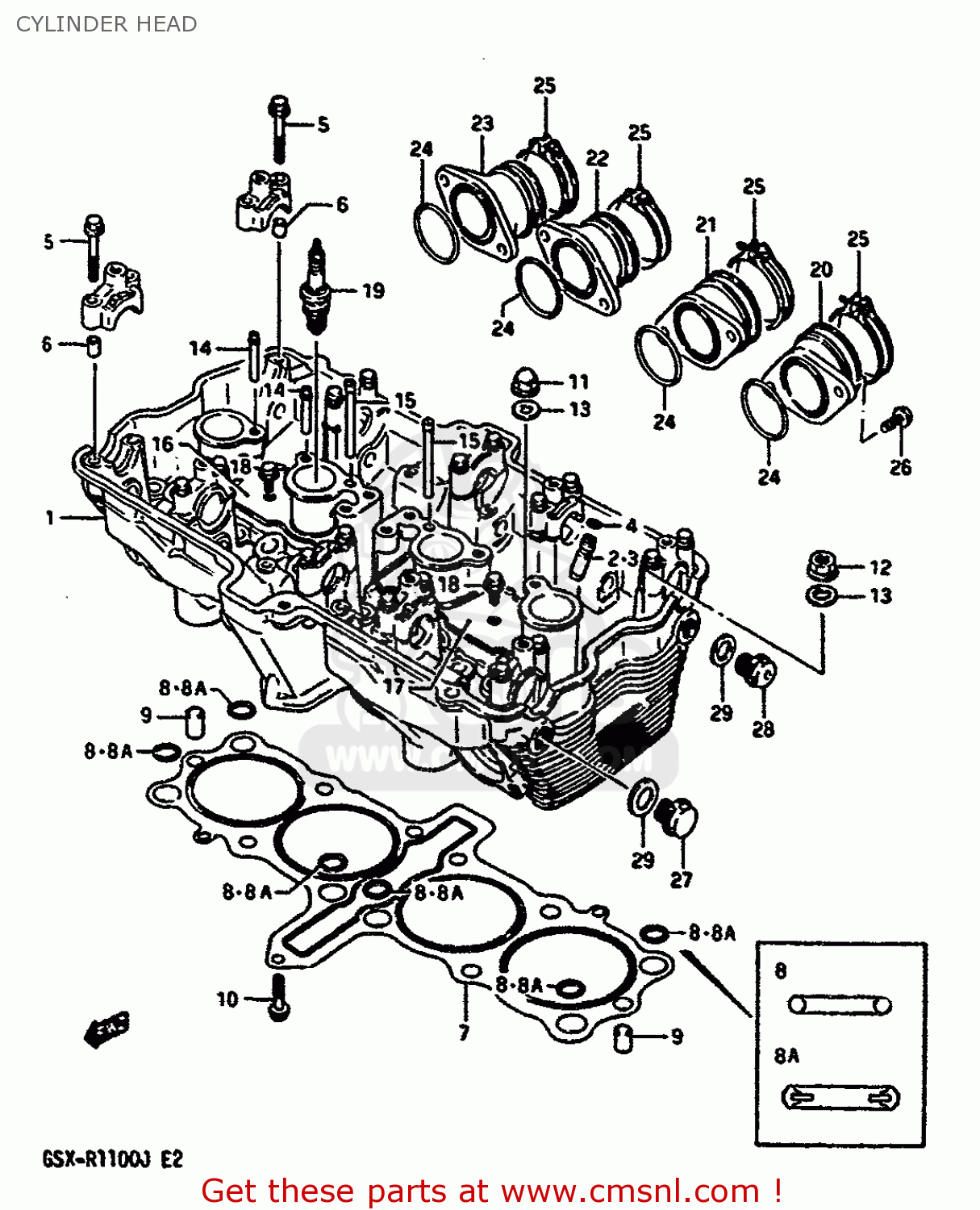

Cylinder head diagram GSXR1100 1988 (J) (E02 E04 E06 15 16 17 18 21 22 24 25 34 39 53)

CYLINDER HEAD GSXR1100 1988 (J) (E02 E04 E06 15 16 17 18 21 22 24 25 34 39 53)
CYLINDER HEAD GSXR1100 1988 (J) (E02 E04 E06 15 16 17 18 21 22 24 25 34 39 53)
CYLINDER HEAD GSXR1100 1988 (J) (E02 E04 E06 15 16 17 18 21 22 24 25 34 39 53)
prices are in EUR
ref
part #
description
quantity
1
1110006B05
ref: 1
HEAD ASSEMBLY,CYLINDER
€ 1,224.00
2
1111527A70
ref: 2
GUIDE,VALVE
1111527A70
€ 43.00
3
1111606B70
ref: 3
GUIDE,VALVE
1111606B70
€ 43.00
4
0938110004
ref: 4
RING,SNAP
0938110004
€ 1.50
5
0910306026
ref: 5
BOLT(6X39)
0910306026
€ 2.00
6
0920608001
ref: 6
PIN(6.2X8X11)
0920608001
€ 2.00
7-1
1114106B00
ref: 7-1
MODEL G/H
GASKET,CYLINDER HEAD (NAS)
1114106B00
€ 72.00
7-2
1114106B11
ref: 7-2
MODEL J
GASKET,CYLINDER HEAD (NAS)
1114106B11
€ 72.00
8
1114327A51
ref: 8
TO 11143-06B00
O RING,HEAD GASKET
1114327A51
€ 8.00
8A
1114306B00
ref: 8A
O RING,HEAD GASKET
1114306B00
€ 8.00
9
0920911006
ref: 9
PIN
€ 16.00
10
0151706254
ref: 10
BOLT
€ 2.50
11
0915910054
ref: 11
NUT
0915910054
€ 7.50
12
0831616106
ref: 12
NUT
€ 2.00
13
0916810031
ref: 13
GASKET(10.2X20X2).3 (NAS)
0916810031
€ 2.00
14
1113127A00
ref: 14
PIPE,OIL NO.1
1113127A00
€ 6.00
15
1113327A00
ref: 15
PIPE,OIL NO.3
1113327A00
€ 7.00
16
1113527A02
ref: 16
PLATE,OIL PIPE,R
1113527A02
€ 4.00
17
1113627A02
ref: 17
PLATE,OIL PIPE,L
1113627A02
€ 4.00
18
0151706128
ref: 18
BOLT
€ 2.50
19-1
0948200365
ref: 19-1
E1,E24,MODEL G E25,E
SPARK PLUG
0948200365
€ 8.00
19-2
0948200371
ref: 19-2
OPT,E1,E24,E25,E34,M
SPARK PLUG
€ 9.00
19-3
0948200366
ref: 19-3
E2,E4,E6,E15,E16,E17
SPARK PLUG (NGK,JR9A)
€ 8.00
19-4
0948200372
ref: 19-4
OPT E2,E4,E6,E15,E16
SPARK PLUG (NGK,JR10A)
0948200372
€ 9.00
20-1
1311006B00
ref: 20-1
PIPE,INTAKE
1311006B00
€ 32.50
20-2
1311006B10
ref: 20-2
E18
PIPE,INTAKE LH
€ 30.00
21-1
1312006B00
ref: 21-1
PIPE,INTAKE
1312006B00
€ 33.50
21-2
1312006B10
ref: 21-2
E18
PIPE,INTAKE ML
€ 43.50
22-1
1313006B00
ref: 22-1
NET,INTAKE
1313006B00
€ 33.50
22-2
1313006B10
ref: 22-2
E18
PIPE,INTAKE MR
€ 43.00
23-1
1314006B00
ref: 23-1
PIPE,INTAKE
1314006B00
€ 33.50
23-2
1314006B10
ref: 23-2
E18
PIPE,INTAKE RH
€ 43.00
24
1311527A01
ref: 24
O RING(D:2.4,ID:39.7)
1311527A01
€ 3.50
25
0940250208
ref: 25
CLAMP
0940250208
€ 5.00
26
0215206165
ref: 26
SCREW
€ 2.00
27
0924714034
ref: 27
PLUG
0924714034
€ 3.50
28
0924714032
ref: 28
PLUG
0924714032
€ 5.00
29
0916814004
ref: 29
GASKET(14X19.2X2) (NAS)
0916814004
€ 2.50
