FRAME COVER (MODEL J)

GSXR1100 1988 (J) (E02 E04 E06 15 16 17 18 21 22 24 25 34 39 53)

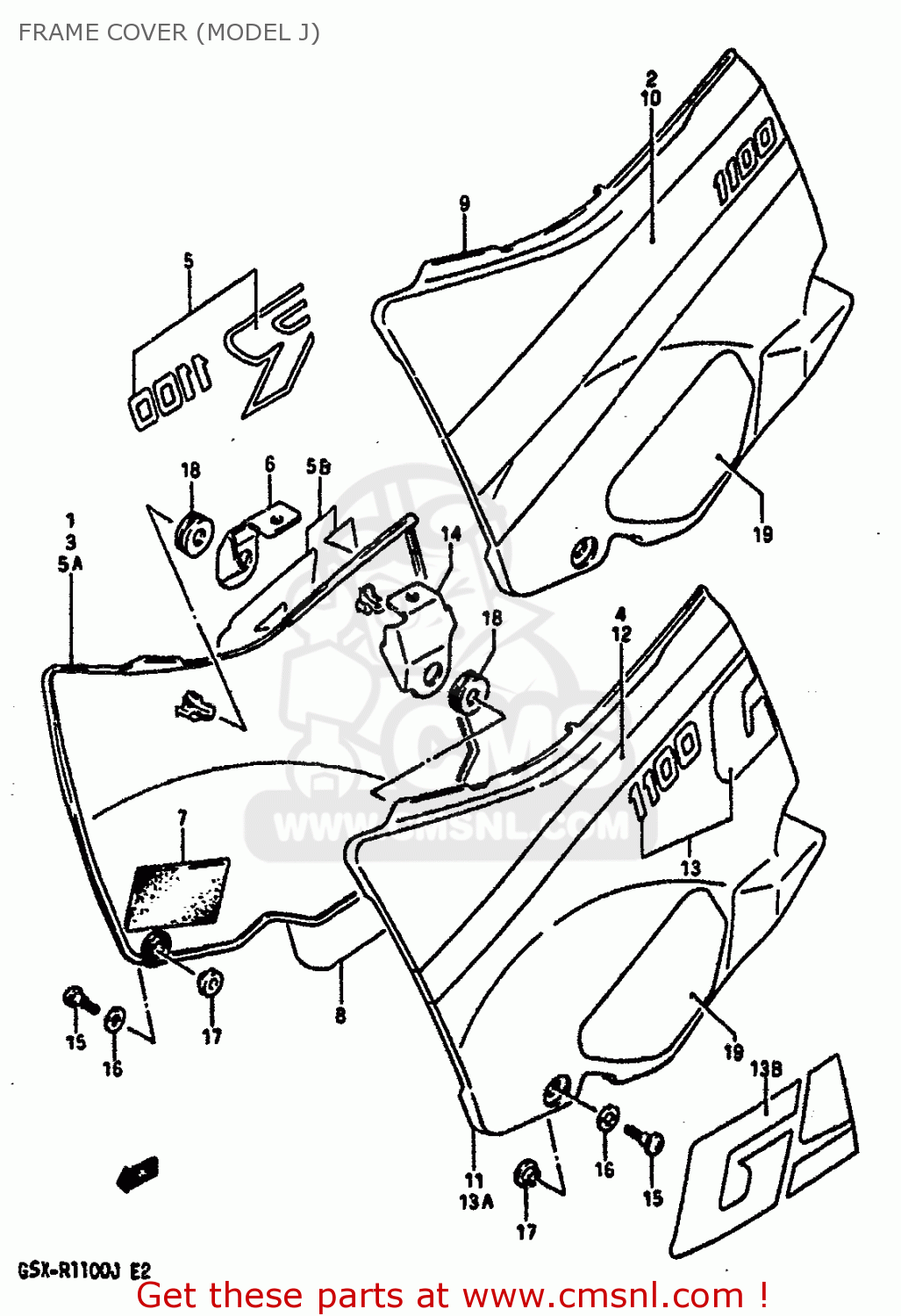

Frame cover (model j) diagram GSXR1100 1988 (J) (E02 E04 E06 15 16 17 18 21 22 24 25 34 39 53)

FRAME COVER (MODEL J) GSXR1100 1988 (J) (E02 E04 E06 15 16 17 18 21 22 24 25 34 39 53)
FRAME COVER (MODEL J) GSXR1100 1988 (J) (E02 E04 E06 15 16 17 18 21 22 24 25 34 39 53)
FRAME COVER (MODEL J) GSXR1100 1988 (J) (E02 E04 E06 15 16 17 18 21 22 24 25 34 39 53)
prices are in EUR
ref
part #
description
quantity
1
4711006B2022P
ref: 1
FOR 9HD
COVER,FRAME,RIGHT
4711006B2022P
€ 160.50
2
6813506B002GL
ref: 2
FOR 22P
TAPE,FRAME COVER,RIGHT
€ 33.00
3
4711006B302FF
ref: 3
FOR 9SR
COVER,FRAME,RIGHT
4711006B302FF
€ 145.50
4
6813506B1022R
ref: 4
FOR 2FF
TAPE,FRAME COVER,RIGHT
€ 0.00
5
6813106B0022R
ref: 5
FOR 2FF
EMBLEM,RIGHT
6813106B0022R
€ 15.50
5A
4711027B1013Z
ref: 5A
COVER FRAME RH
€ 160.50
5B
6813127B1039B
ref: 5B
FOR 13Z
EMBLEM,RH (GOLD)
6813127B1039B
€ 10.00
6
4714106B01
ref: 6
HOLDER,FRAME COVER,RIGHT
€ 4.50
7
4716127A00
ref: 7
RUBBER,FRAME COVER,RIGHT
€ 8.00
8
4726106B00
ref: 8
PROTECTOR,FRAME COVER
€ 19.00
9
4721006B2022P
ref: 9
FOR 9HD
COVER,FRAME,LEFT
4721006B2022P
€ 160.50
10
6814506B002GL
ref: 10
FOR 22P
TAPE,FRAME COVER,LEFT
€ 33.00
11
4721006B302FF
ref: 11
FOR 9SR
COVER,FRAME,LEFT
€ 167.50
12
6814506B1022R
ref: 12
FOR 2FF
TAPE,FRAME COVER,LEFT
€ 17.00
13
6814106B0022R
ref: 13
FOR 2FF
EMBLEM,LEFT
€ 15.00
13A
4721027B1013Z
ref: 13A
COVER FRAME LH
€ 160.50
13B
6814127B1039B
ref: 13B
FOR 13Z
EMBLEM,FRAME COVER,L(GOLD)
6814127B1039B
€ 15.50
14
4717106B01
ref: 14
HOLDER, FRAME COVER LH
€ 4.00
15
0913906044
ref: 15
SCREW(6X23)
0913906044
€ 7.00
16
0932008043
ref: 16
CUSHION
0932008043
€ 5.50
17
0832211084
ref: 17
WASHER
0832211084
€ 1.50
18
0932008018
ref: 18
CUSHION
0932008018
€ 4.00
19
4726127A00
ref: 19
PROTECTOR,FRAME COVER LH
4726127A00
€ 19.00
14-2
6814027A309HT
ref: 14-2
MODEL H,FOR 9HJ
TAPE SET,FRAME COVER,LEFT
€ 0.00
15-1
6823540A1060K
ref: 15-1
MODEL H,FOR 9HD
EMBLEM
€ 6.00
15-2
6823540A1095K
ref: 15-2
MODEL H,FOR 9HJ
EMBLEM
€ 4.00
16-1
4717106B00
ref: 16-1
MODEL G
HOLDER,FRAME COVER,LEFT
€ 4.00
16-2
4717106B01
ref: 16-2
MODEL H
HOLDER, FRAME COVER LH
€ 4.00
17
0913906044
ref: 17
SCREW(6X23)
0913906044
€ 7.00
18
0932008043
ref: 18
CUSHION
0932008043
€ 5.50
19
0832211084
ref: 19
WASHER
0832211084
€ 1.50
20
0932008018
ref: 20
CUSHION
0932008018
€ 4.00
21
4726127A00
ref: 21
PROTECTOR,FRAME COVER LH
4726127A00
€ 19.00
