CRANKCASE COVER

GSXR1100 1988 (J) (E02 E04 E06 15 16 17 18 21 22 24 25 34 39 53)

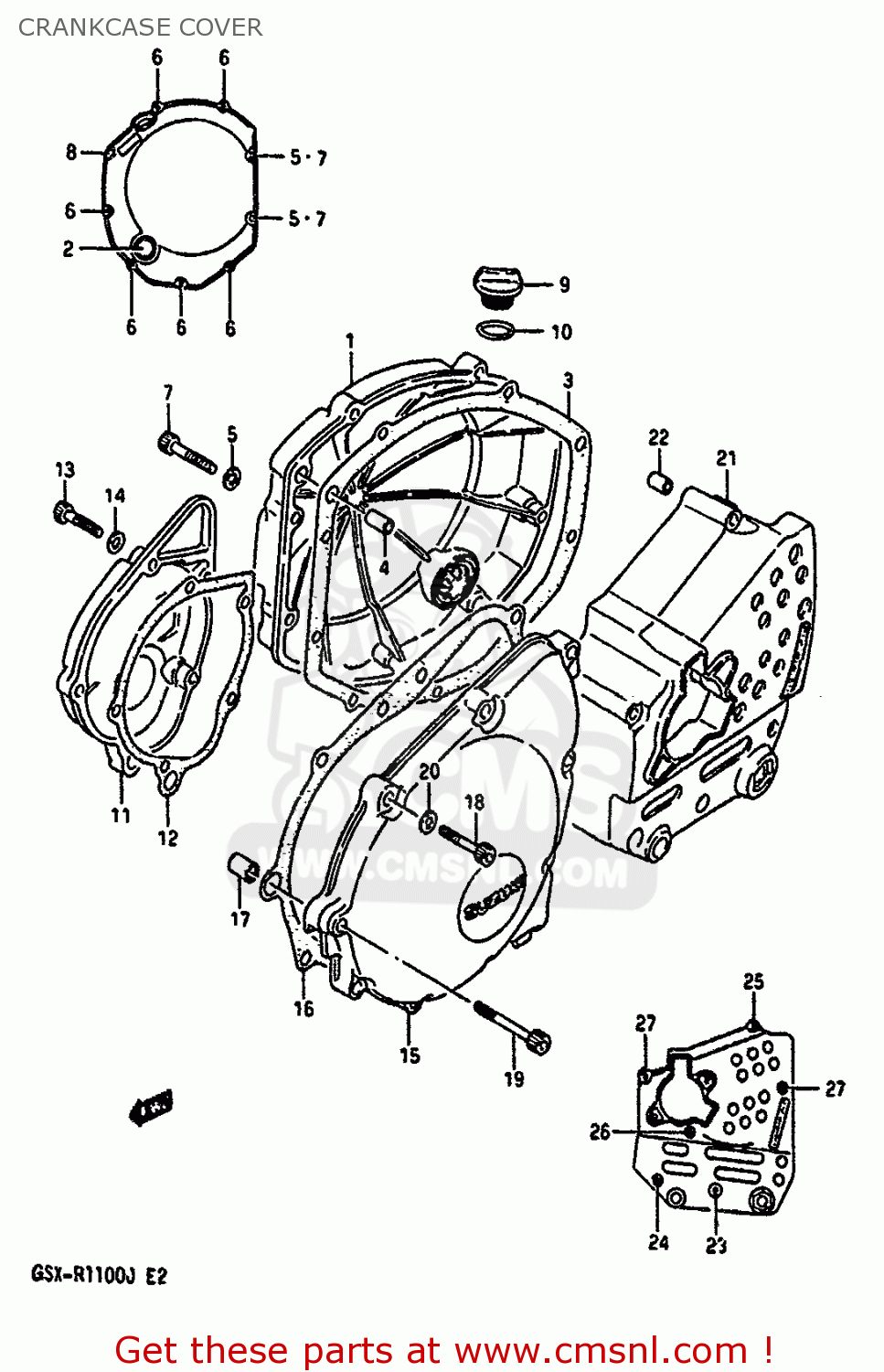

Crankcase cover diagram GSXR1100 1988 (J) (E02 E04 E06 15 16 17 18 21 22 24 25 34 39 53)

CRANKCASE COVER GSXR1100 1988 (J) (E02 E04 E06 15 16 17 18 21 22 24 25 34 39 53)
CRANKCASE COVER GSXR1100 1988 (J) (E02 E04 E06 15 16 17 18 21 22 24 25 34 39 53)
CRANKCASE COVER GSXR1100 1988 (J) (E02 E04 E06 15 16 17 18 21 22 24 25 34 39 53)
prices are in EUR
ref
part #
description
quantity
1
1134006B00
ref: 1
COVER COMP,CLUTCH
1134006B00
€ 175.00
2
1197133210
ref: 2
LENS,OIL LEVEL CHECK
1197133210
€ 13.50
3
1148227A01
ref: 3
GASKET,CLUTCH COVER (MCA)
1148227A01
€ 18.00
4
0421109189
ref: 4
PIN
0421109189
€ 2.00
5
0916806024
ref: 5
GASKET(5.8X11X1.2) (NAS)
0916806024
€ 2.00
6
0711006255
ref: 6
BOLT
0711006255
€ 3.00
7
0711006305
ref: 7
BOLT
0711006305
€ 3.00
8
0711006355
ref: 8
BOLT
€ 3.50
9
0925920012
ref: 9
PLUG
0925920012
€ 6.50
10
0928017003
ref: 10
O RING(D:3.1,ID:16.8)
0928017003
€ 2.00
11
1138127A01
ref: 11
FROM 11381-27A00
COVER,SIGNAL GENERATOR
1138127A01
€ 94.50
12
1149127A00
ref: 12
GASKET,SIGNAL GENERATOR COVER (NAS)
1149127A00
€ 8.00
13
0910606059
ref: 13
BOLT
0910606059
€ 3.00
14
0916806024
ref: 14
GASKET(5.8X11X1.2) (NAS)
0916806024
€ 2.00
15
1135127A01
ref: 15
COVER,STARTER GEAR
1135127A01
€ 176.00
16
1148327A00
ref: 16
GASKET,STARTER GEAR COVER (MCA)
1148327A00
€ 14.50
17
0920611005
ref: 17
PIN (11X20)(SUS)
€ 6.50
18
0711006255
ref: 18
BOLT
0711006255
€ 3.00
19
0711006405
ref: 19
BOLT
0711006405
€ 3.50
20
0916806024
ref: 20
GASKET(5.8X11X1.2) (NAS)
0916806024
€ 2.00
21
1136106B12
ref: 21
FROM 11361-06B11
COVER,ENGINE SPROCKET
€ 154.00
22
0421109129
ref: 22
PIN
0421109129
€ 2.00
23
0711006405
ref: 23
BOLT
0711006405
€ 3.50
24
0711006305
ref: 24
BOLT
0711006305
€ 3.00
25
0711006505
ref: 25
BOLT
€ 3.00
26
0711006655
ref: 26
BOLT
€ 4.00
27
0711006705
ref: 27
BOLT
€ 4.00
