MUFFLER

GSXR1100 1988 (J) (E02 E04 E06 15 16 17 18 21 22 24 25 34 39 53)

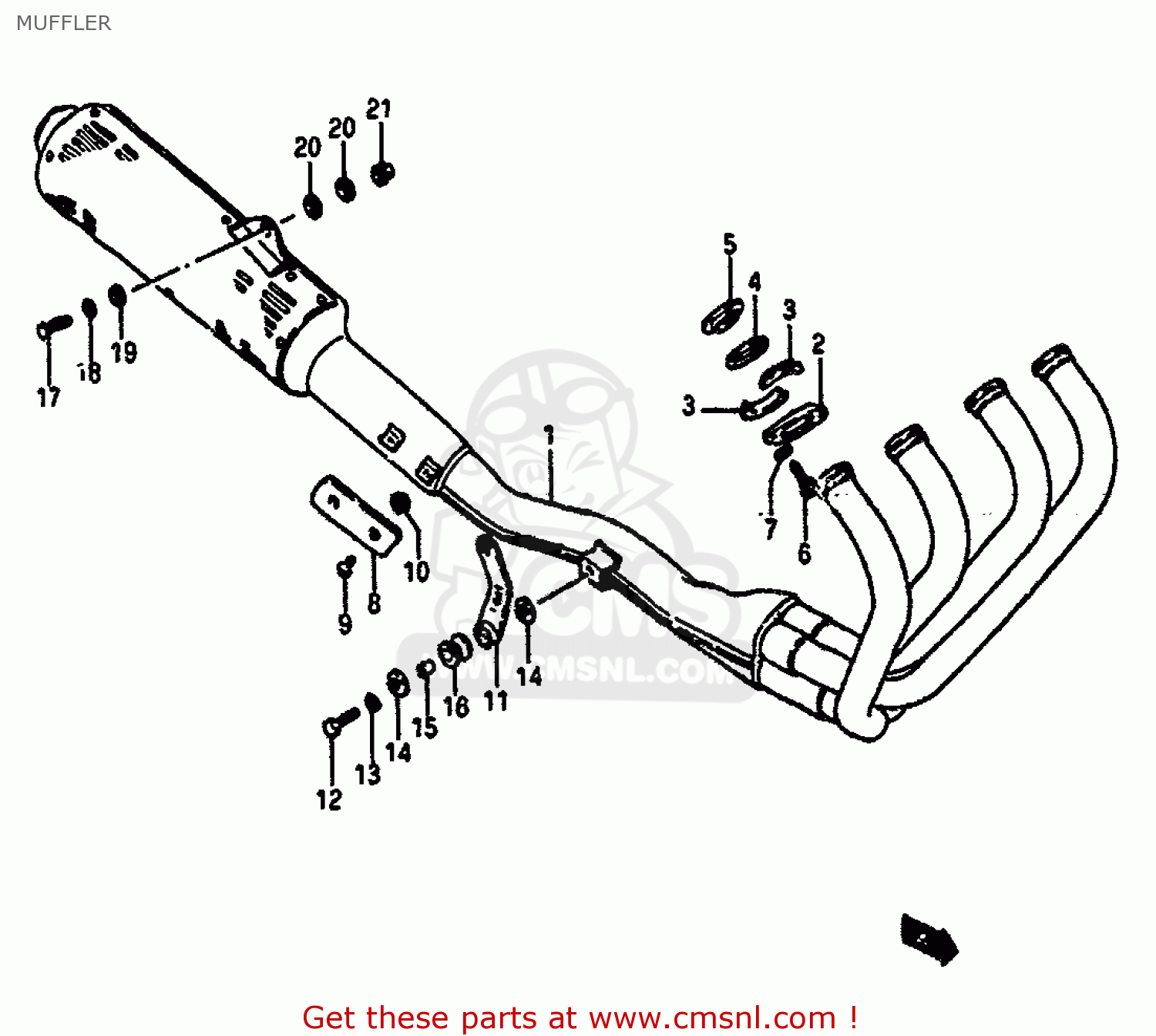

Muffler diagram GSXR1100 1988 (J) (E02 E04 E06 15 16 17 18 21 22 24 25 34 39 53)

MUFFLER GSXR1100 1988 (J) (E02 E04 E06 15 16 17 18 21 22 24 25 34 39 53)
MUFFLER GSXR1100 1988 (J) (E02 E04 E06 15 16 17 18 21 22 24 25 34 39 53)
MUFFLER GSXR1100 1988 (J) (E02 E04 E06 15 16 17 18 21 22 24 25 34 39 53)
prices are in EUR
ref
part #
description
quantity
1-1
1430506B01
ref: 1-1
MUFFLER ASSY
€ 1,074.00
1-2
1430506B61
ref: 1-2
E2
MUFFLER ASSEMBLY
€ 827.00
1-3
1430506B51
ref: 1-3
E4
MUFFLER ASSY
€ 0.00
1-4
1430506B31
ref: 1-4
E18,E22
MUFFLER ASSY
€ 0.00
1-5
1430506B21
ref: 1-5
E21,E24,E25,E34,E53
MUFFLER ASSY
€ 1,117.50
2
1418227A00
ref: 2
CLAMP,EXHAUST PIPE
1418227A00
€ 35.50
3
1415527A00
ref: 3
PLATE,EXHAUST PIPE
1415527A00
€ 3.50
4
1418105020
ref: 4
GASKET,EXHAUST PIPE (NAS)
1418105020
€ 6.50
5
1415906B00
ref: 5
MODEL H/J E2,E17,E39
PLATE,EXHAUST
1415906B00
€ 8.00
6
0711008255
ref: 6
BOLT
0711008255
€ 3.50
7
0916408015
ref: 7
WASHER
0916408015
€ 3.00
8
1478206B00
ref: 8
COVER,MUFFLER,FRONT
€ 10.50
9
0214206104
ref: 9
SCREW
0214206104
€ 2.00
10
0916806022
ref: 10
GASKET (NAS)
€ 2.50
11
1477006B01
ref: 11
DAMPER,MUFFLER SUPPORT
1477006B01
€ 13.50
12
0910008224
ref: 12
BOLT 8X35
0910008224
€ 6.00
13
0916208003
ref: 13
WASHER
€ 1.50
14
0916008057
ref: 14
WASHER (8.5X20X1.6)
0916008057
€ 2.00
15
0918008102
ref: 15
SPACER (8.6X12X17.5)
0918008102
€ 3.00
16
0932012026
ref: 16
CUSHION
0932012026
€ 8.00
17
0110710404
ref: 17
BOLT
€ 2.50
18
0832121104
ref: 18
WASHER,LOCK
0832121104
€ 3.00
19
0832211104
ref: 19
WASHER 10MM
0832211104
€ 2.50
20
0916010001
ref: 20
WASHER
0916010001
€ 2.00
21
0831616108
ref: 21
NUT
0831616108
€ 2.00
