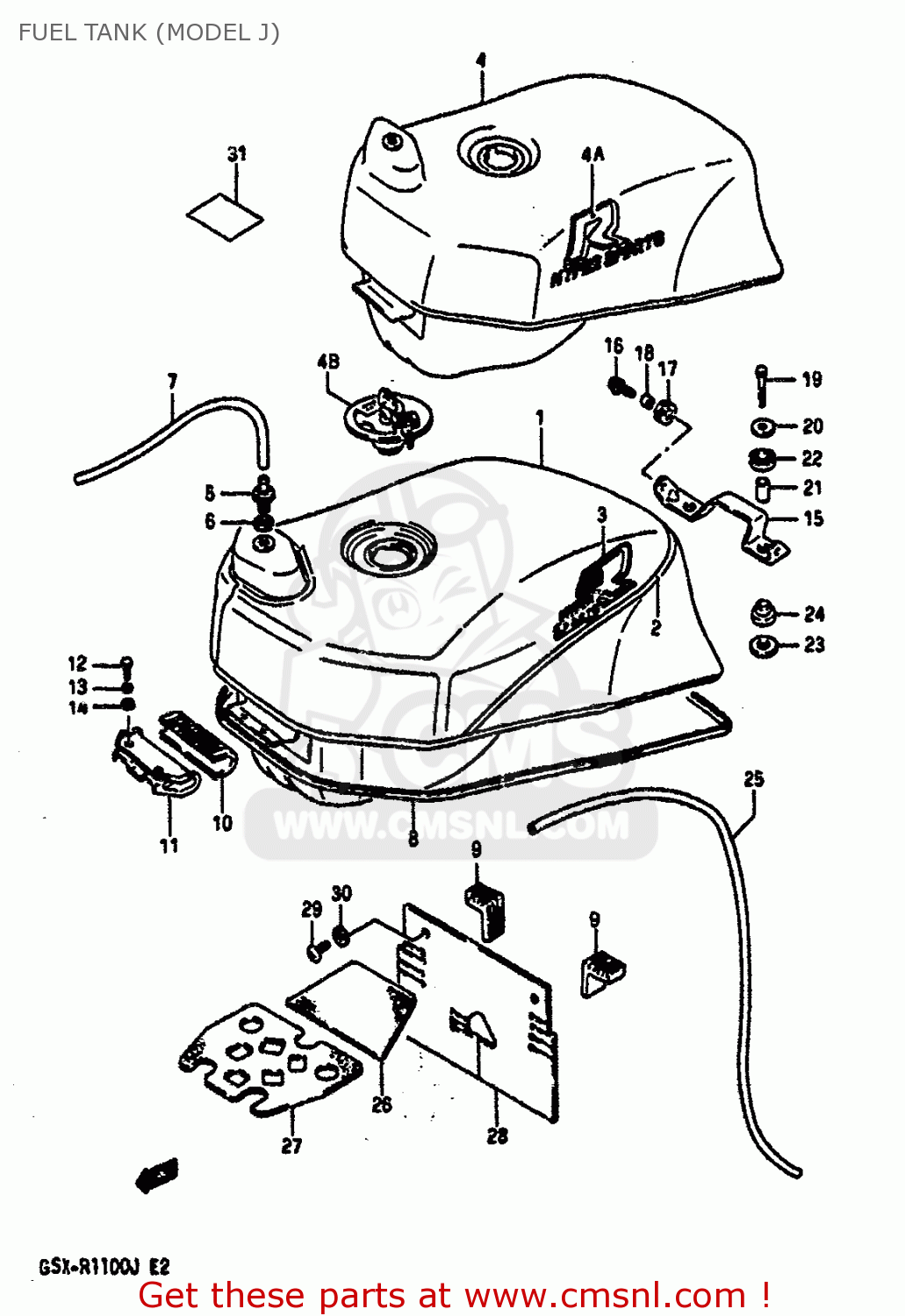

FUEL TANK (MODEL J)

ref

part #

description

quantity

1-1

4410006B709HD
ref: 1-1

TANK ASSEMBLY,FUEL

€ 807.00

1-2

4410006B809HD
ref: 1-2
E22

TANK ASSY,FUEL (BLACK/RED)

€ 807.00

1-3

4410006B709SR
ref: 1-3

TANK ASSEMBLY,FUEL

€ 807.00

1-4

4410006B809SR
ref: 1-4
E22

TANK ASSY,FUEL (WHITE/BLUE)

€ 807.00

2-1

6811506B0022P
ref: 2-1
FOR 9HD

TAPE,FUEL TANK

€ 60.00

2-2

6811506B0033N
ref: 2-2
FOR 9SR

TAPE,FUEL TANK

€ 0.00

3-1

6811106B002GK
ref: 3-1
FOR 9HD

EMBLEM,FUEL TANK

€ 18.00

3-2

6811106B002GS
ref: 3-2
FOR 9SR

EMBLEM,FUEL TANK

€ 18.00

4-1

4410027B2013Z
ref: 4-1

TANK,FUEL

€ 807.00

4-2

4410027B3013Z
ref: 4-2
E22

TANK ASSY,FUEL (BLACK)

€ 807.00

4A

6811127B1039B
ref: 4A
FOR 13Z

EMBLEM (GOLD)

€ 13.00

4B

4420020A00KEY
ref: 4B

CAP SET,FUEL TANK

€ 174.00

5

4424006B10
ref: 5

PLUG,FUEL TANK BREATHER

€ 36.00

6

0916812012
ref: 6

GASKET(12.5X20X2.5) (NAS)

€ 2.00

7

0935250823890
ref: 7

HOSE

€ 13.00

8

6824127A00
ref: 8

MOLDING,FUEL TANK

€ 23.00

9

4454527A10
ref: 9

CUSHION,FUEL TANK SIDE

€ 4.00

10

4451127A10
ref: 10

CUSHION,FUEL TANK FR

€ 7.00

11

4452127A00
ref: 11

BRACKET,FUEL TANK FR

€ 16.00

12

0110706205
ref: 12

BOLT

€ 2.00

13

0832121064
ref: 13

WASHER,LOCK

€ 2.00

14

0832221064
ref: 14

WASHER

€ 2.00

15

4521106B00
ref: 15

BRACKET,SEAT SUPPORT,FRONT

€ 5.00

16

0913806042
ref: 16

BOLT

€ 3.00

17

0932008007
ref: 17

CUSHION

€ 4.00

18

0918006038
ref: 18

SPACER(6.1X9X7.5)

€ 2.00

19

0110706356
ref: 19

BOLT ,6X35

€ 2.50

20

0916006072
ref: 20

WASHER (6.5X24X1.6)

€ 2.00

21

0918006072
ref: 21

SPACER

€ 2.00

22

0932014017
ref: 22

CUSHION

€ 3.00

23

0916012004
ref: 23

WASHER (12.5X24X1.6)

€ 2.00

24

0932010038
ref: 24

CUSHION

€ 4.00

25

0935250823890
ref: 25

HOSE

€ 13.00

26

4419127A00
ref: 26

SHIELD,FUEL TANK HEAT

€ 15.50

27

4419227A00
ref: 27

SHIELD,FUEL TANK HEAT

€ 25.50

28

4419406B00
ref: 28

SHIELD,HEAT NO.1

€ 14.50

29

0214206207
ref: 29

SCREW

€ 2.00

30

0916006007
ref: 30

WASHER

€ 2.00

31

8693273060
ref: 31
E24

LABEL,FUEL CAUTION

€ 4.00

29

0916012004
ref: 29

WASHER (12.5X24X1.6)

€ 2.00

30

0932010038
ref: 30

CUSHION

€ 4.00

31

0934305165
ref: 31

HOSE,FUEL

€ 13.00

32

4419127A00
ref: 32

SHIELD,FUEL TANK HEAT

€ 15.50

33

4419227A00
ref: 33

SHIELD,FUEL TANK HEAT

€ 25.50

34

4419406B00
ref: 34

SHIELD,HEAT NO.1

€ 14.50

35

0214206207
ref: 35

SCREW

€ 2.00

36

0916006007
ref: 36

WASHER

€ 2.00

37

8693273060
ref: 37
E24

LABEL,FUEL CAUTION

€ 4.00

all assemblies
