BATTERY

GSXR1100 1988 (J) (E02 E04 E06 15 16 17 18 21 22 24 25 34 39 53)

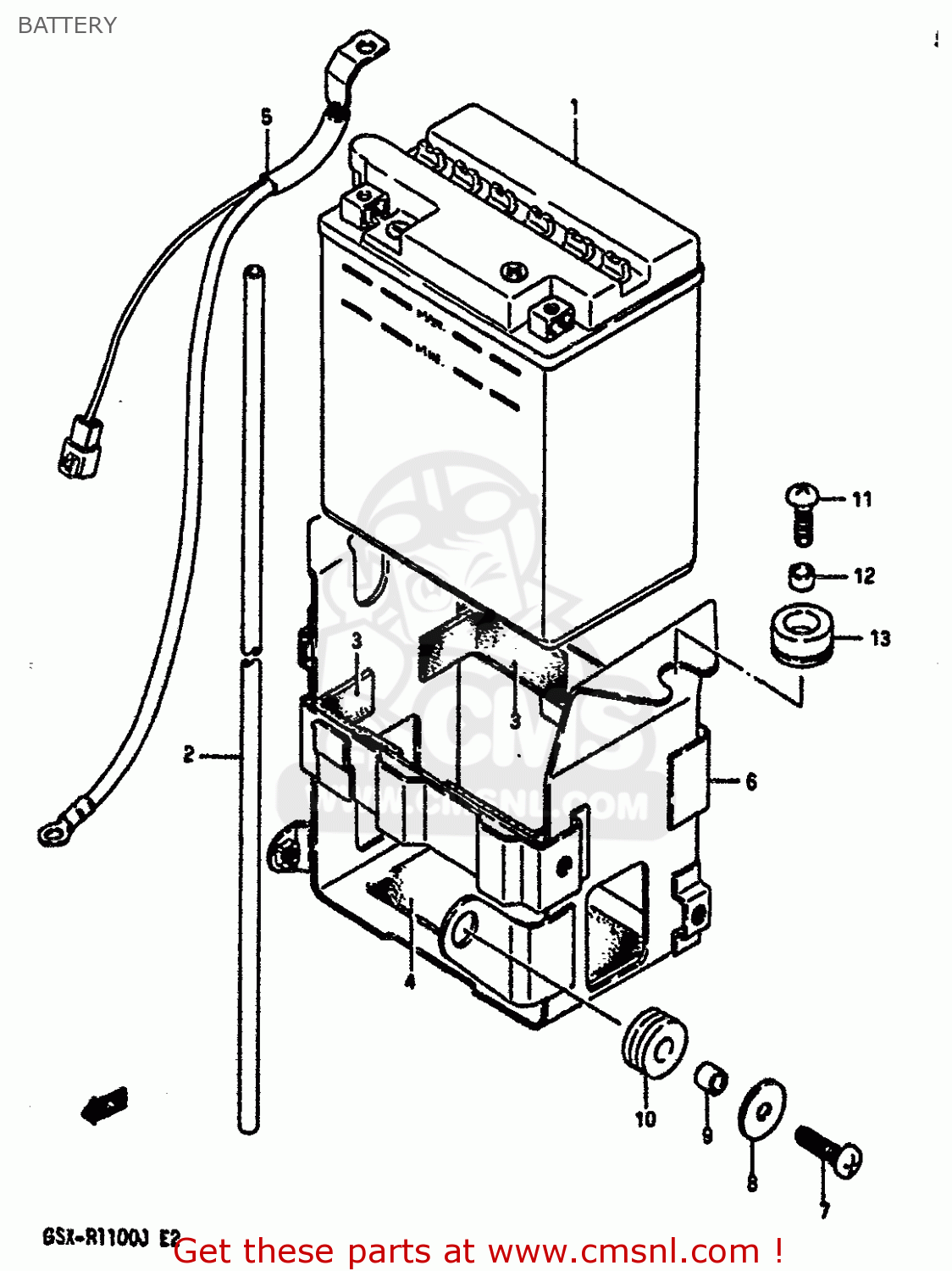

Battery diagram GSXR1100 1988 (J) (E02 E04 E06 15 16 17 18 21 22 24 25 34 39 53)

prices are in EUR

ref

part #

description

quantity

3361049210
ref: 1

BATTERY ASSY (12V)

€ 110.00

3368031003
ref: 2

HOSE,BATTERY EXHAUST

€ 4.50

3365229100
ref: 3

PROTECTOR,20X9

€ 5.00

3365137000
ref: 4
CUT AS REQUIRED PROF

PROTECTOR(170X95X3.0)

€ 5.00

3386006B10
ref: 5

WIRE,BATTERY MINUS LEAD

€ 17.00

6-1

4154006B00
ref: 6-1
MODEL G/H

HOLDER,BATTERY

€ 48.50

6-2

4154006B10
ref: 6-2
MODEL J

HOLDER COMP,BATTERY

€ 48.50

0214206167
ref: 7

SCREW

€ 2.00

0916006007
ref: 8

WASHER

€ 2.00

0918006152
ref: 9

SPACER

€ 3.00

0932009021
ref: 10

CUSHION

€ 4.00

0214206207
ref: 11

SCREW

€ 2.00

0918006073
ref: 12

SPACER

€ 2.00

4154934A00
ref: 13

CUSHION,HOLDER BATTERY UPR

€ 4.00
