OIL COOLER

GSXR1100 1988 (J) (E02 E04 E06 15 16 17 18 21 22 24 25 34 39 53)

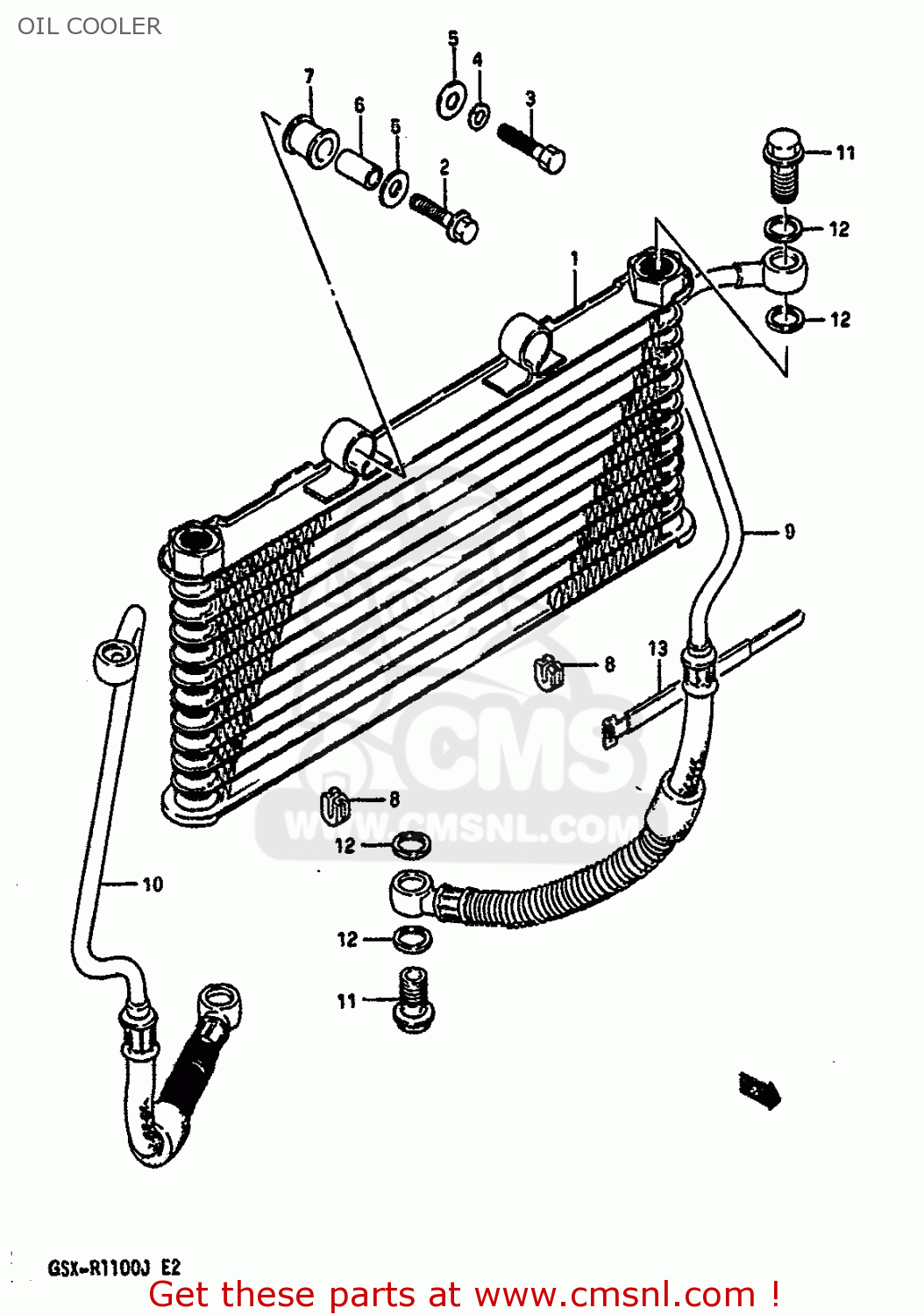

Oil cooler diagram GSXR1100 1988 (J) (E02 E04 E06 15 16 17 18 21 22 24 25 34 39 53)

prices are in EUR

ref

part #

description

quantity

1-1

1660027A01
ref: 1-1
MODEL G/H

COOLER ASSEMBLY,OIL

€ 813.00

1-2

1660006B10
ref: 1-2
MODEL J

COOLER ASSEMBLY,OIL

€ 955.00

0151708405
ref: 2
MODEL G/H

BOLT 8X40

€ 3.50

0110708405
ref: 3
MODEL J

BOLT 8X40

€ 3.00

0832121084
ref: 4
MODEL J

WASHER,LOCK,8.

€ 2.50

0916008047
ref: 5

WASHER(8.5X23X1.2)

€ 2.00

0918008124
ref: 6

SPACER (8.8X12X24.5)

€ 7.00

1662927A01
ref: 7

CUSHION,OIL COOLER NO.1

€ 4.00

1662827A00
ref: 8

CUSHION,OIL COOLER NO.2

€ 3.00

1646006B00
ref: 9

HOSE,OIL COOLER,L

€ 149.00

1647006B00
ref: 10

HOSE,OIL COOLER,RIGHT

€ 154.00

0936016002
ref: 11

BOLT UNION

€ 12.00

0916816003
ref: 12

GASKET(16X22X2) (NAS)

€ 2.00

0940718301
ref: 13

CLAMP

€ 6.00
