SPEEDOMETER

GSXR1100 1988 (J) (E02 E04 E06 15 16 17 18 21 22 24 25 34 39 53)

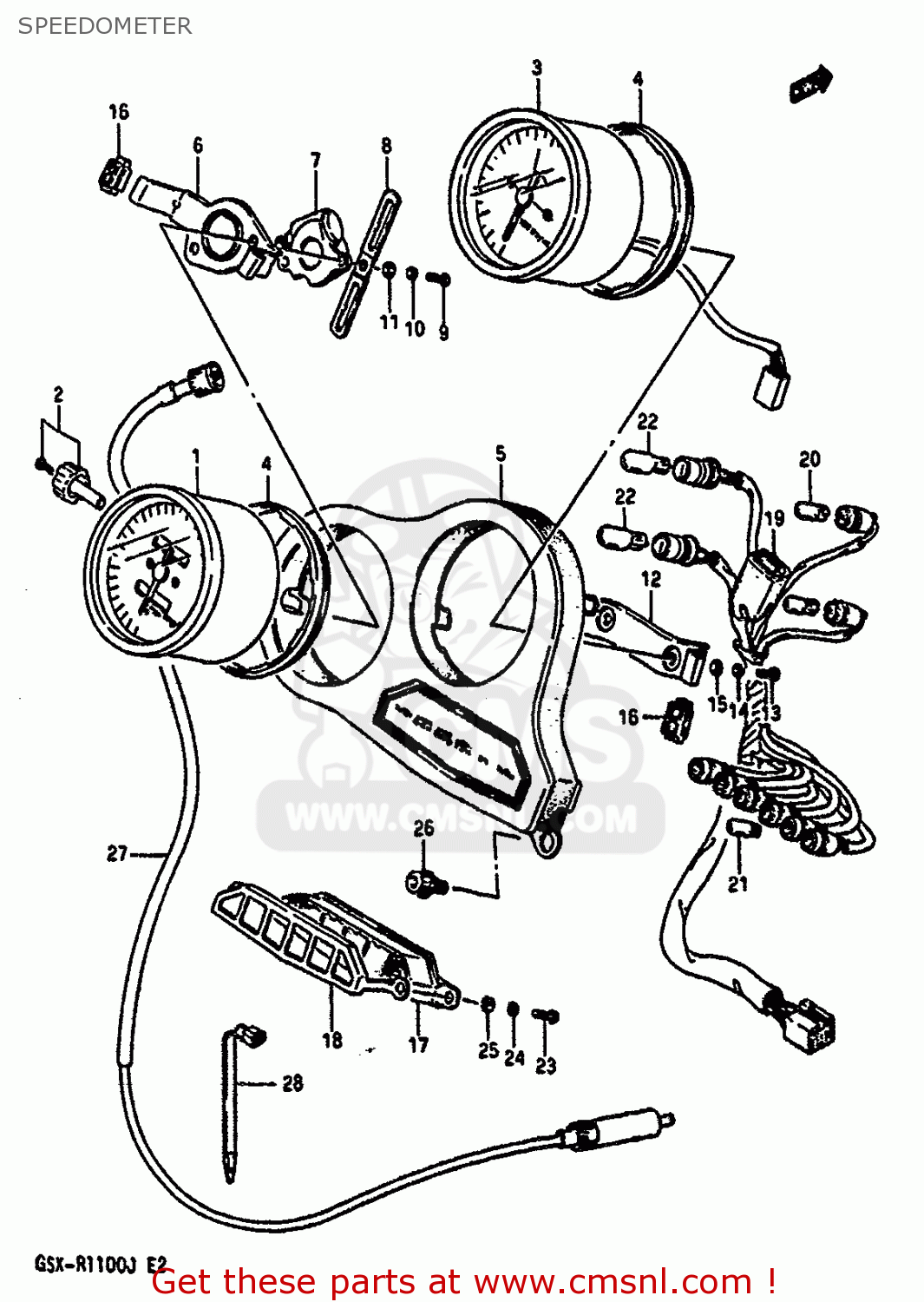

Speedometer diagram GSXR1100 1988 (J) (E02 E04 E06 15 16 17 18 21 22 24 25 34 39 53)

SPEEDOMETER GSXR1100 1988 (J) (E02 E04 E06 15 16 17 18 21 22 24 25 34 39 53)
SPEEDOMETER GSXR1100 1988 (J) (E02 E04 E06 15 16 17 18 21 22 24 25 34 39 53)
SPEEDOMETER GSXR1100 1988 (J) (E02 E04 E06 15 16 17 18 21 22 24 25 34 39 53)
prices are in EUR
ref
part #
description
quantity
1-1
3411006B10
ref: 1-1
SPEEDOMETER (KILO)
3411006B10
€ 341.50
1-2
3411006B20
ref: 1-2
SPEEDOMETER (MILE/KILO)
€ 341.50
2
3412404A30
ref: 2
KNOB,TRIP
3412404A30
€ 6.50
3-1
3421006B10
ref: 3-1
TACHOMETER
3421006B10
€ 492.50
3-2
3421006B60
ref: 3-2
E18
TACHOMETER (R/MIN)
3421006B60
€ 463.50
3-3
3421006B40
ref: 3-3
E24
TACHOMETER (RPM)
€ 492.50
4
3428806B10
ref: 4
CUSHION
3428806B10
€ 17.00
5-1
3495006B10
ref: 5-1
MODEL G/H
BRACKET,METER
€ 112.50
5-2
3495006B50
ref: 5-2
MODEL J,MODEL G/H/J
BRACKET,METER
3495006B50
€ 166.50
6
3411104A30
ref: 6
PLATE,SPEEDOMETER
€ 35.00
7
3413104A00
ref: 7
BOX,GEAR
3413104A00
€ 144.00
8
3638506B10
ref: 8
CLAMP
€ 0.00
9
0211204124
ref: 9
SCREW
€ 1.50
10
0832121045
ref: 10
LOCK WASHER
€ 2.00
11
0832221045
ref: 11
WASHER
€ 5.00
12-1
3421106B10
ref: 12-1
PLATE,TACHOMETER
3421106B10
€ 36.50
12-2
3421106B60
ref: 12-2
E18
PLATE,TACHOMETER
€ 53.50
13
0211204085
ref: 13
SCREW
0211204085
€ 2.00
14
0832121045
ref: 14
LOCK WASHER
€ 2.00
15
0832221045
ref: 15
WASHER
€ 5.00
16
3418904A30
ref: 16
CUSHION
3418904A30
€ 6.00
17-1
3638004A30
ref: 17-1
FROM 36380-06B10
BOX,PILOT LAMP
3638004A30
€ 20.00
17-2
3638006B70
ref: 17-2
E17
BOX,PILOT LAMP
3638006B70
€ 44.50
17-3
3638007B10
ref: 17-3
MODEL J E4,E6,E15,E1
BOX,PILOT LAMP
€ 44.50
18
3638304A30
ref: 18
PLATE,PILOT LAMP
3638304A30
€ 10.00
19-1
3417006B10
ref: 19-1
MODEL G/H
SOCKET,METER
3417006B10
€ 87.00
19-2
3417006B50
ref: 19-2
MODEL J,MODEL G/H/J
SOCKET,METER
€ 87.00
19-3
3417006B60
ref: 19-3
E18
SOCKET,METER
€ 87.00
20-1
0947112103
ref: 20-1
MODEL G/H
BULB(12V3W,T6.5)
0947112103
€ 2.50
20-2
0947112103
ref: 20-2
MODEL J,MODEL G/H/J
BULB(12V3W,T6.5)
0947112103
€ 2.50
21
0947112108
ref: 21
BULB(12V1.7W,T6.5)
0947112108
€ 2.00
22
0947112028
ref: 22
BULB(12V3.4W,T10)
0947112028
€ 3.50
23
0211204124
ref: 23
SCREW
€ 1.50
24
0832121045
ref: 24
LOCK WASHER
€ 2.00
25
0832221045
ref: 25
WASHER
€ 5.00
26
0712006125
ref: 26
BOLT
€ 3.50
27
3491006B00
ref: 27
CABLE ASSY,SPEEDOMETER
3491006B00
€ 25.50
28
0940714403
ref: 28
CLAMP(L:125)
0940714403
€ 2.50
