CLUTCH HOSE

GSXR1100 1988 (J) (E02 E04 E06 15 16 17 18 21 22 24 25 34 39 53)

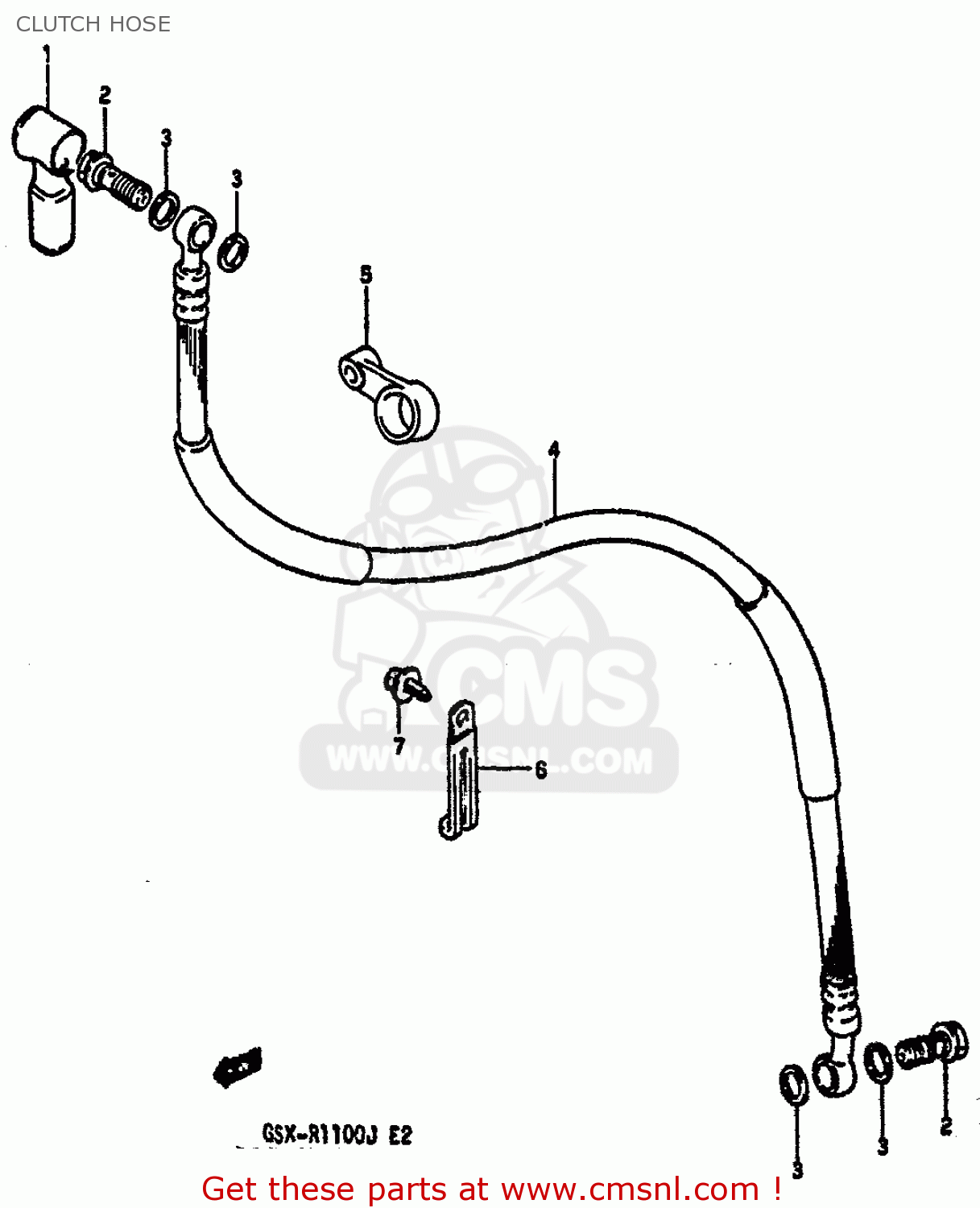

Clutch hose diagram GSXR1100 1988 (J) (E02 E04 E06 15 16 17 18 21 22 24 25 34 39 53)

CLUTCH HOSE GSXR1100 1988 (J) (E02 E04 E06 15 16 17 18 21 22 24 25 34 39 53)

CLUTCH HOSE GSXR1100 1988 (J) (E02 E04 E06 15 16 17 18 21 22 24 25 34 39 53)

prices are in EUR

ref

part #

description

quantity

1

5971104700
ref: 1

BOOT,MASTER CYLINDER

€ 14.50

2

0936010017
ref: 2

BOLT UNION

€ 6.50

3

0916110009
ref: 3

WASHER(10X15X1.5)

€ 2.00

4

5991027A03
ref: 4

HOSE,CLUTCH

€ 196.50

5

5991527A10
ref: 5

CLAMP,CLUTCH HOSE NO.2

€ 7.50

6

0940406415
ref: 6

CLAMP

€ 3.00

7

0940907305
ref: 7

CLIP

€ 1.50
