BATTERY

VZ800 BOULEVARD M50 2005 (K5) USA (E03) BOULEVARDM50 BOULEVARD-M

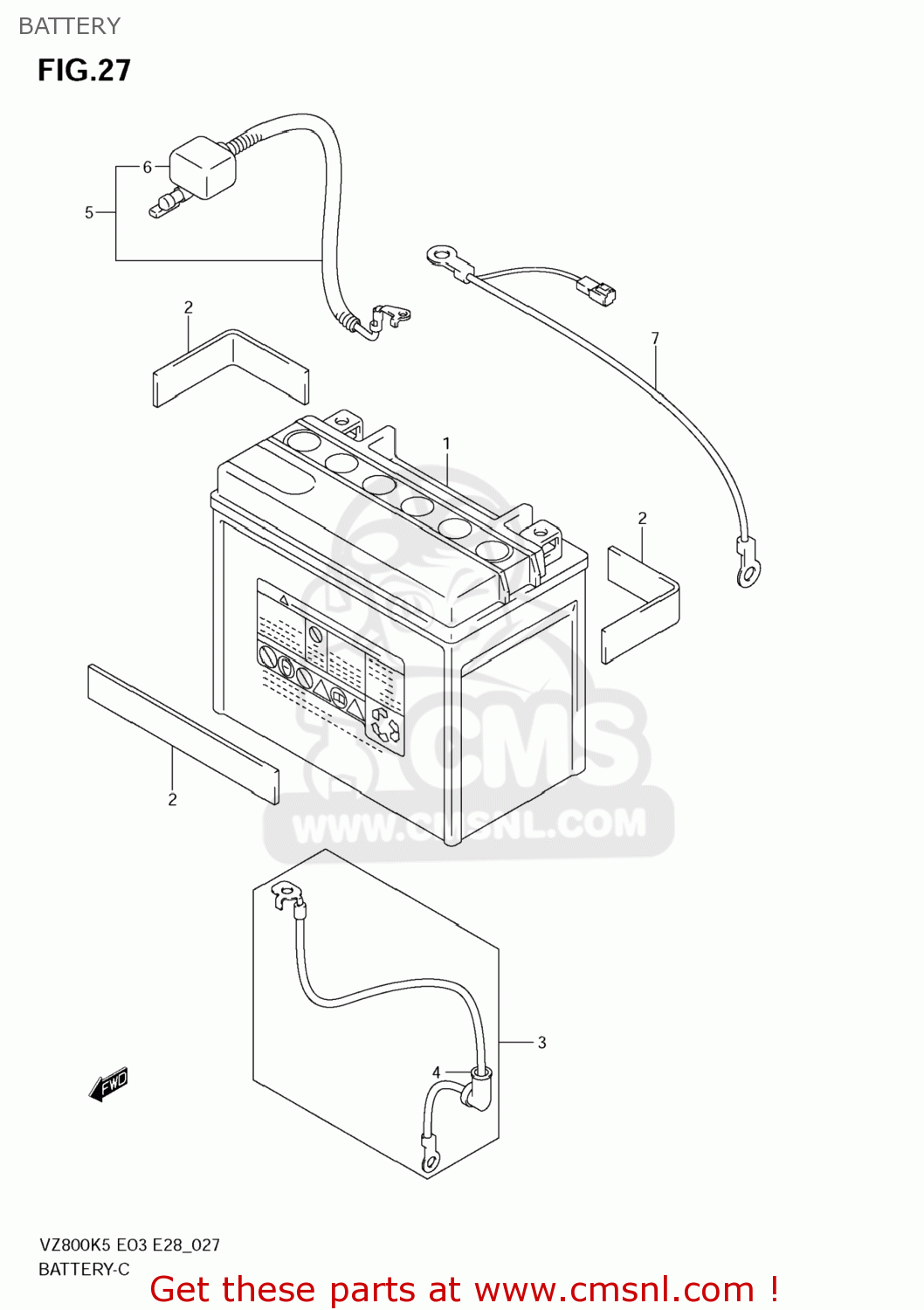

Battery diagram VZ800 BOULEVARD M50 2005 (K5) USA (E03) BOULEVARDM50 BOULEVARD-M

prices are in EUR

ref

part #

description

quantity

3361048E20
ref: 1

BATTERY ASSEMBLY (12V) FTX

€ 97.50

3365137000
ref: 2

PROTECTOR(170X95X3.0)

€ 5.00

3365137000
ref: 2

PROTECTOR(170X95X3.0)

€ 5.00

3381041F00
ref: 3

WIRE,STARTER MOTOR LEAD

€ 17.50

3186148B10
ref: 4

CAP,STARTER MOTOR LEAD

€ 4.50

3382048E00
ref: 5

WIRE,BATTERY PLUS LEAD

€ 13.00

3362416E00
ref: 6

CAP,BATTERY PLUS

€ 4.00

3386041F00
ref: 7

WIRE,BATTERY MINUS

€ 14.50
