SECOND AIR (MODEL K9)

VZ800 BOULEVARD M50 2005 (K5) USA (E03) BOULEVARDM50 BOULEVARD-M

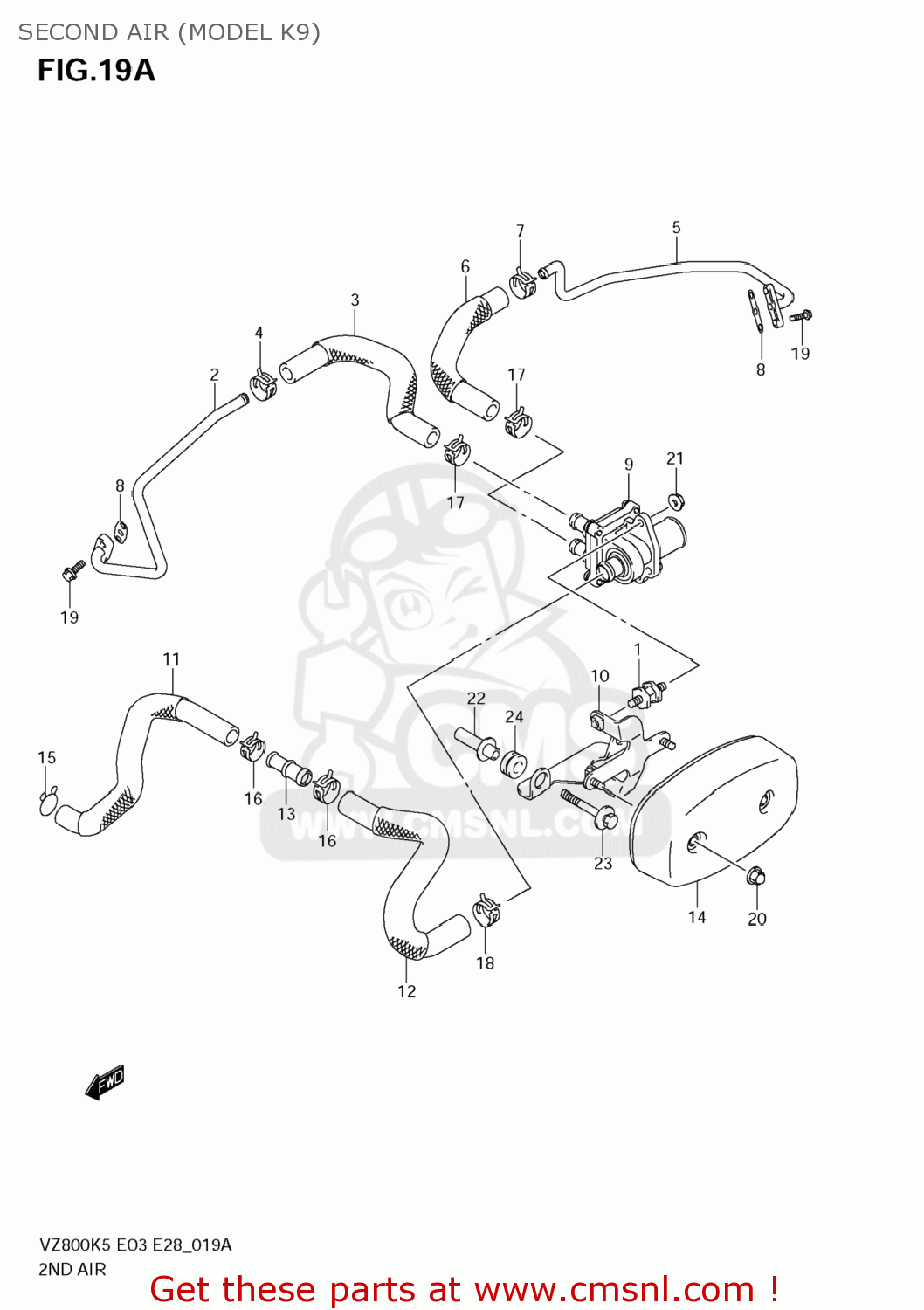

Second air (model k9) diagram VZ800 BOULEVARD M50 2005 (K5) USA (E03) BOULEVARDM50 BOULEVARD-M

SECOND AIR (MODEL K9) VZ800 BOULEVARD M50 2005 (K5) USA (E03) BOULEVARDM50 BOULEVARD-M

SECOND AIR (MODEL K9) VZ800 BOULEVARD M50 2005 (K5) USA (E03) BOULEVARDM50 BOULEVARD-M

prices are in EUR

ref

part #

description

quantity

1

1778813612
ref: 1

BOLT,CUSHION

€ 8.50

2

1841041F30
ref: 2

PIPE,2ND AIR FR

€ 37.50

3

1846139G00
ref: 3

HOSE,2ND AIR VALVE FR

€ 63.50

4

0940115407
ref: 4

CLIP

€ 1.50

5

1842041F30
ref: 5

PIPE,2ND AIR RR

€ 37.00

6

1847139G00
ref: 6

HOSE,2ND AIR VALVE RR

€ 47.00

7

0940115407
ref: 7

CLIP

€ 1.50

8

1844145C01
ref: 8

GASKET,2ND AIR PIPE (NAS)

€ 6.00

9

1845039G00
ref: 9

VALVE ASSY,2ND

€ 179.00

10

1861039G00
ref: 10

BRACKET,2ND AIR SPRT

€ 20.00

11

1871139G00
ref: 11

HOSE,2ND AIR CLEANER

€ 28.00

12

1871239G00
ref: 12

HOSE,2ND AIR CLEANER

€ 23.50

13

1871339G00
ref: 13

JOINT,2ND AIR CLEANER HOSE

€ 13.00

14

1878041F20
ref: 14

COVER,2ND AIR VALVE

€ 34.50

15

0940115101
ref: 15

CLIP

€ 2.00

16

0940116407
ref: 16

CLIP

€ 2.50

17

0940118406
ref: 17

CLIP

€ 2.50

18

0940120405
ref: 18

CLIP

€ 3.00

19

015470616A
ref: 19

BOLT

€ 2.00

20

0831320067
ref: 20

NUT

€ 2.00

21

083161006B
ref: 21

NUT

€ 2.50

22

1862041F00
ref: 22

SPACER,2ND AIR SPRT BRKT

€ 6.50

23

0911606183
ref: 23

BOLT(6X55)

€ 2.50

24

0932010015
ref: 24

CUSHION

€ 2.50
