SPEEDOMETER (MODEL K9)

VZ800 BOULEVARD M50 2005 (K5) USA (E03) BOULEVARDM50 BOULEVARD-M

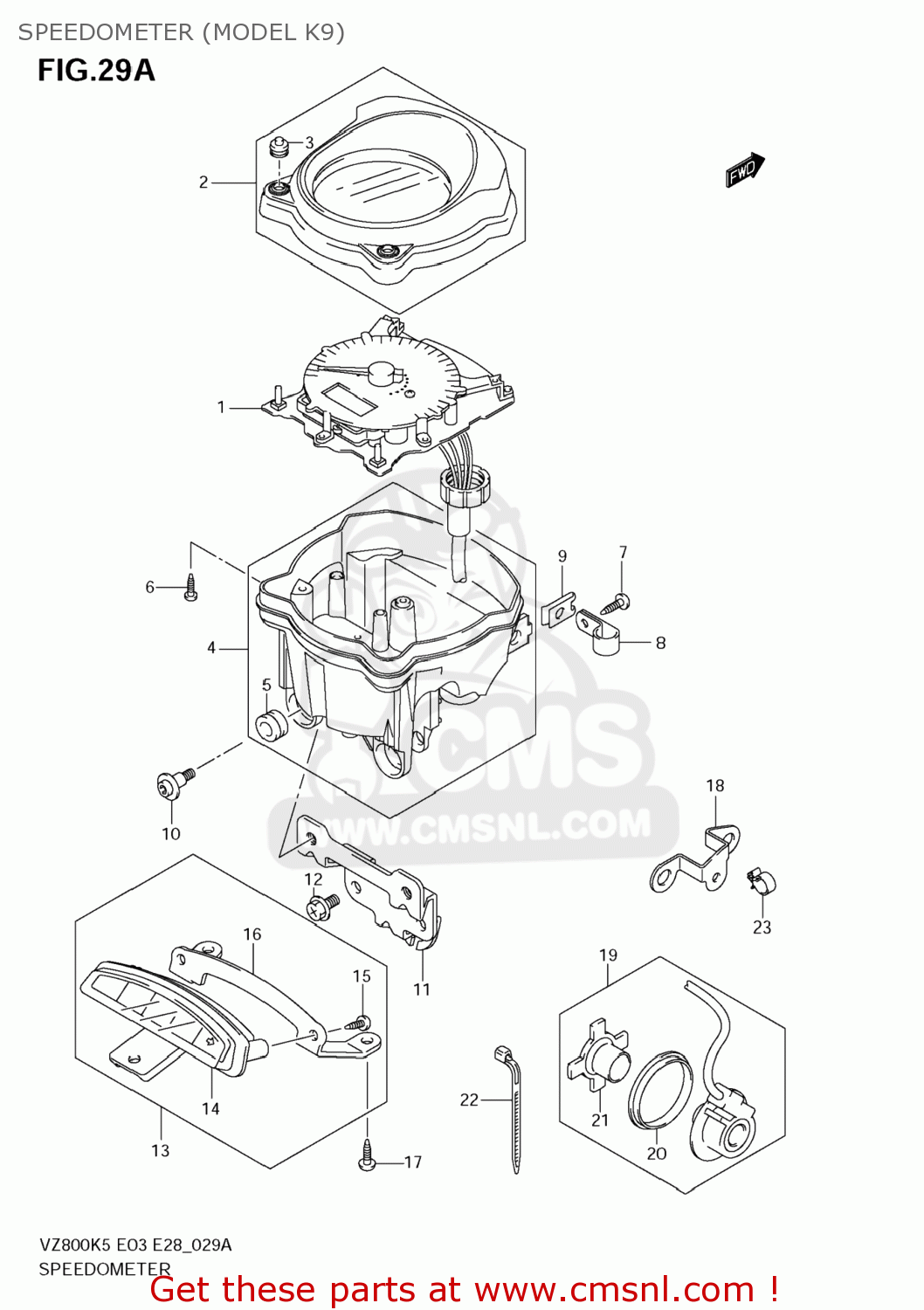

Speedometer (model k9) diagram VZ800 BOULEVARD M50 2005 (K5) USA (E03) BOULEVARDM50 BOULEVARD-M

SPEEDOMETER (MODEL K9) VZ800 BOULEVARD M50 2005 (K5) USA (E03) BOULEVARDM50 BOULEVARD-M

SPEEDOMETER (MODEL K9) VZ800 BOULEVARD M50 2005 (K5) USA (E03) BOULEVARDM50 BOULEVARD-M

prices are in EUR

ref

part #

description

quantity

1-1

3412039G90
ref: 1-1

COMBINATION METER

€ 345.50

1-2

3412039GB0
ref: 1-2

COMBINATION METER

€ 345.50

1-3

3412039G80
ref: 1-3

SNELHEIDSMETER

€ 395.50

1-4

3412039GA0
ref: 1-4

SNELHEIDSMETER

€ 463.50

2

3415039G00
ref: 2

CASE ASSY,UPR

€ 173.00

3

3412439G00
ref: 3

RUBBER,SWITCH

€ 7.00

4

3411139G00
ref: 4

CASE ASSY,LWR

€ 69.50

5

3495533E00
ref: 5

CUSHION,METER

€ 3.00

6

3438335F00
ref: 6

SCREW(3X16)

€ 3.00

7

035410412A
ref: 7

SCREW

€ 2.00

8

3417619F20
ref: 8

CLAMP

€ 5.50

9

9448424F00
ref: 9

NUT,COWL

€ 4.00

10

3414918G00
ref: 10

SCREW,SPEEDOMETER

€ 2.00

11

3416239G00
ref: 11

BRACKET,SPEEDOMETER

€ 14.50

12

021620612B
ref: 12

SCREW

€ 1.50

13

3638039G10
ref: 13

BOX ASSY,PILOT LAMP

€ 427.00

14

3638139G10
ref: 14

CASE,UNIT

€ 178.50

15

032410512A
ref: 15

SCREW

€ 1.50

16

3638639G00
ref: 16

BRACKET,PILOT LAMP

€ 44.50

17

035110512B
ref: 17

SCREW

€ 2.00

18

3493839G10
ref: 18

GUIDE,SPEED SENSOR LEAD

€ 7.00

19

3499039G00
ref: 19

SENSOR,SPEED

€ 213.50

20

0928644001
ref: 20

SEAL,OIL(44X55X6)

€ 10.00

21

3498327G00
ref: 21

MAGNETO

€ 26.00

22

0940714407
ref: 22

CLAMP(L:145)

€ 4.00

23

0940306410
ref: 23

CLAMP

€ 2.00
