MAGNETO

VZ800 BOULEVARD M50 2005 (K5) USA (E03) BOULEVARDM50 BOULEVARD-M

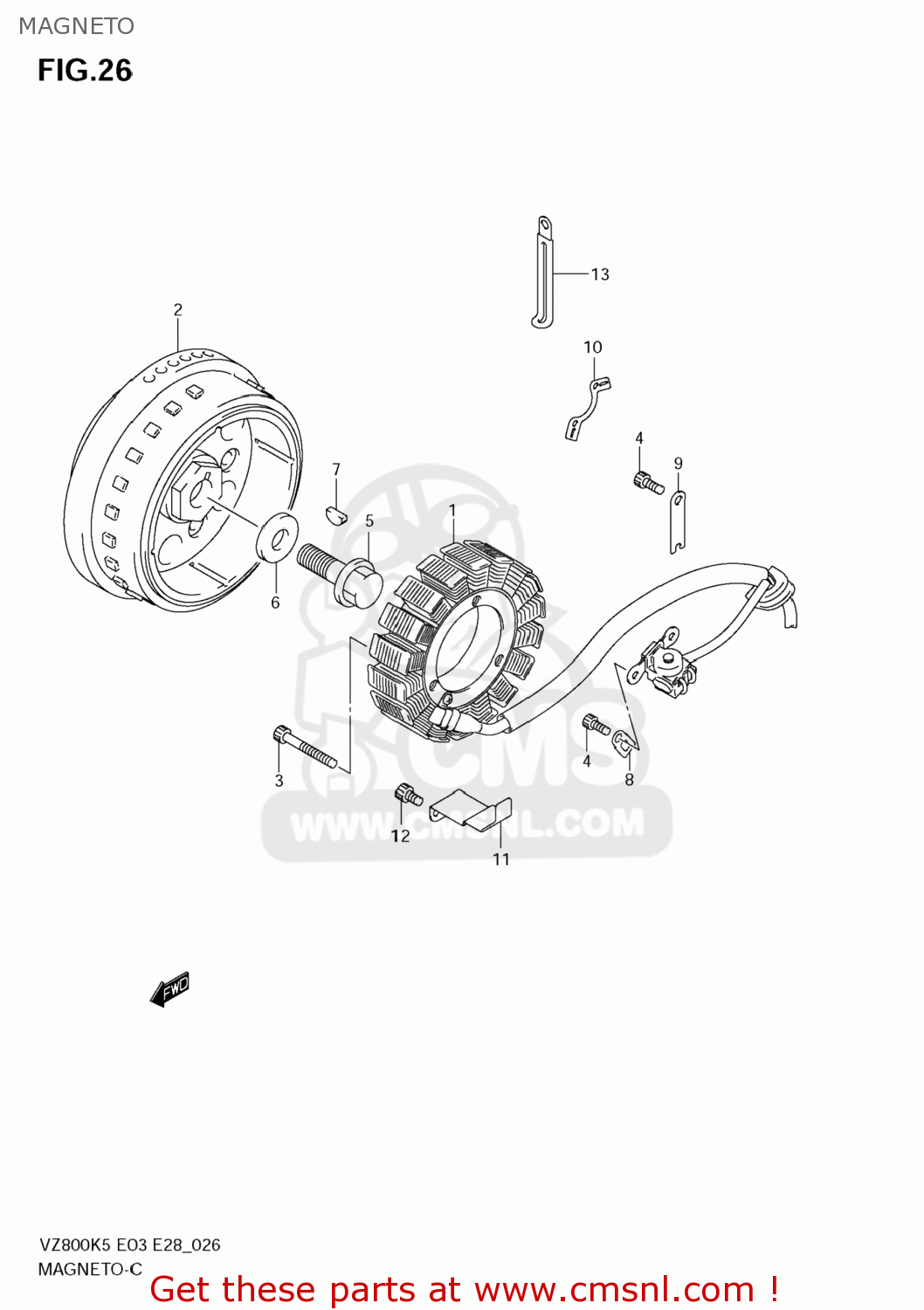

Magneto diagram VZ800 BOULEVARD M50 2005 (K5) USA (E03) BOULEVARDM50 BOULEVARD-M

MAGNETO VZ800 BOULEVARD M50 2005 (K5) USA (E03) BOULEVARDM50 BOULEVARD-M
MAGNETO VZ800 BOULEVARD M50 2005 (K5) USA (E03) BOULEVARDM50 BOULEVARD-M
MAGNETO VZ800 BOULEVARD M50 2005 (K5) USA (E03) BOULEVARDM50 BOULEVARD-M
prices are in EUR
ref
part #
description
quantity
1
3210141F10
ref: 1
STARTER ASSY
€ 400.50
2
3210241F10
ref: 2
ROTOR ASSY
€ 413.00
3
071300640B
ref: 3
BOLT
071300640B
€ 3.50
4
071300510B
ref: 4
BOLT
071300510B
€ 2.00
5
0910314001
ref: 5
BOLT(14X43)
0910314001
€ 7.00
6
0916014021
ref: 6
WASHER(14X29X4)
0916014021
€ 5.00
7
0942005007
ref: 7
KEY
0942005007
€ 3.00
8
3149745000
ref: 8
CLAMP,GENERATOR LEAD WIRE
3149745000
€ 1.50
9
3237138A10
ref: 9
CLAMP NO.1,MAGNETO READ WIRE
€ 1.50
10
3237141F00
ref: 10
CLAMP,MAGNETO LEAD
€ 2.00
11
3237145C00
ref: 11
CLAMP,MAGNETO LEAD WIRE
3237145C00
€ 3.00
12
071300610B
ref: 12
BOLT
071300610B
€ 2.50
13
0940408419
ref: 13
CLAMP(L:80)
€ 2.00
