OIL PUMP

VZ800 BOULEVARD M50 2005 (K5) USA (E03) BOULEVARDM50 BOULEVARD-M

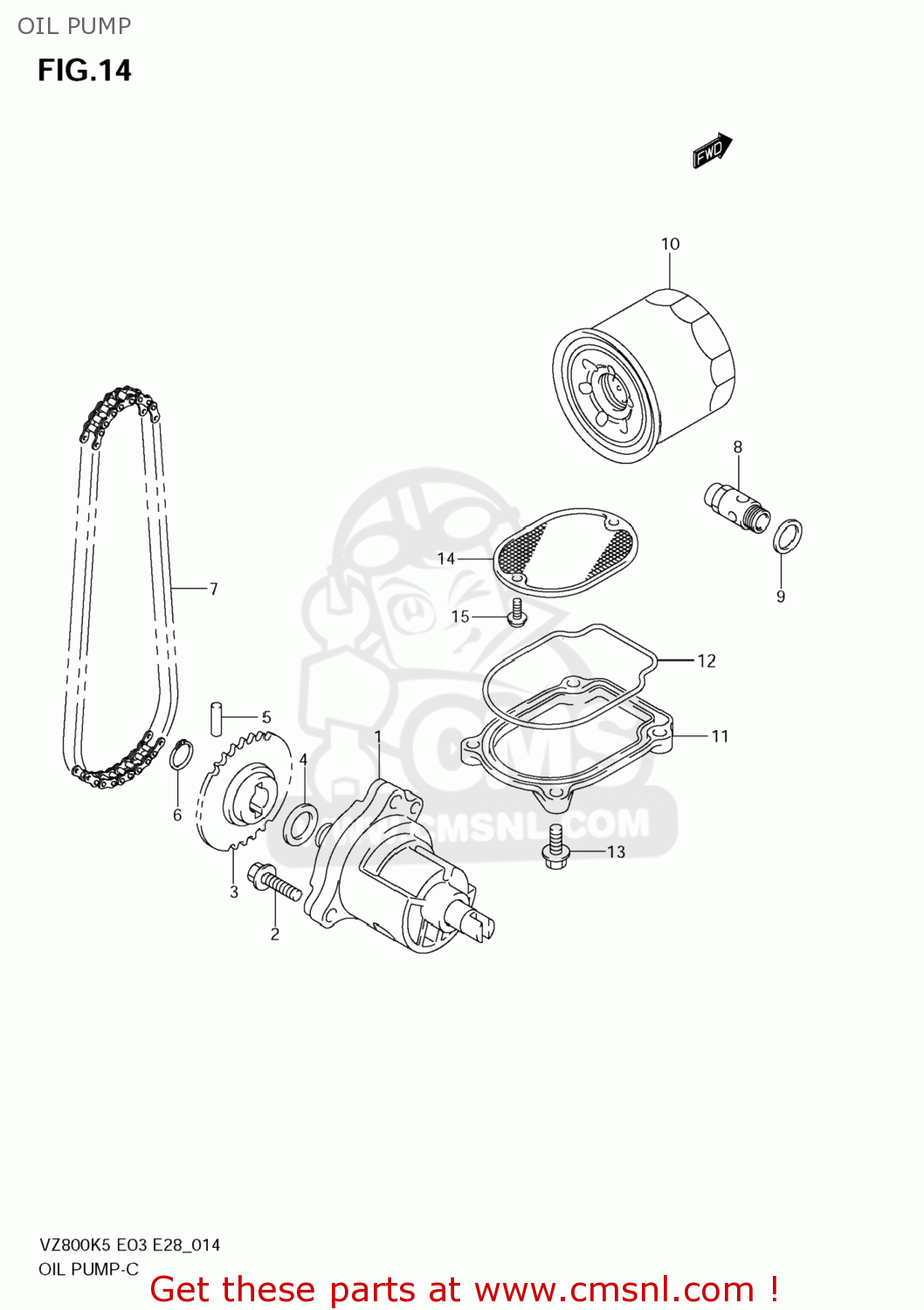

Oil pump diagram VZ800 BOULEVARD M50 2005 (K5) USA (E03) BOULEVARDM50 BOULEVARD-M

OIL PUMP VZ800 BOULEVARD M50 2005 (K5) USA (E03) BOULEVARDM50 BOULEVARD-M

OIL PUMP VZ800 BOULEVARD M50 2005 (K5) USA (E03) BOULEVARDM50 BOULEVARD-M

prices are in EUR

ref

part #

description

quantity

1

1640038A01
ref: 1

PUMP ASSY,ENGINE OIL

€ 148.00

2

015470625A
ref: 2

BOLT

€ 2.50

3

1633138A10
ref: 3

SPROCKET,OIL PUMP DRIVEN

€ 29.00

4

0918112158
ref: 4

SHIM(12X20X0.5)

€ 2.00

5

0926105006
ref: 5

PIN(5X18)

€ 1.50

6

083313112A
ref: 6

CIRCLIP

€ 2.00

7

1631038A00
ref: 7

CHAIN,OIL PUMP DRIVE

€ 19.50

8

1644017C20
ref: 8

VALVE ASSY,OIL RELIEF

€ 39.00

9

0916816002
ref: 9

GASKET(16X22X2) (NAS)

€ 2.00

10-1

1651003G00X07
ref: 10-1
16510-07J00

FILTER ASSY,EN

€ 12.50

10-2

1651022H00
ref: 10-2

FILTER ASSY,EN

€ 33.50

11

1652338A00
ref: 11

CAP,OIL STRAINER

€ 19.50

12

1652838A00
ref: 12

O RING,OIL STRAINER CAP

€ 8.00

13

015470620A
ref: 13

BOLT

€ 2.50

14-1

1652038A00
ref: 14-1

STRAINER,ENGINE OIL

€ 7.50

14-2

1652038A10
ref: 14-2

STRAINER,ENGINE OIL

€ 5.50

15

021127512A
ref: 15

SCREW

€ 2.50
