REAR COMBINATION LAMP

VZ800 BOULEVARD M50 2005 (K5) USA (E03) BOULEVARDM50 BOULEVARD-M

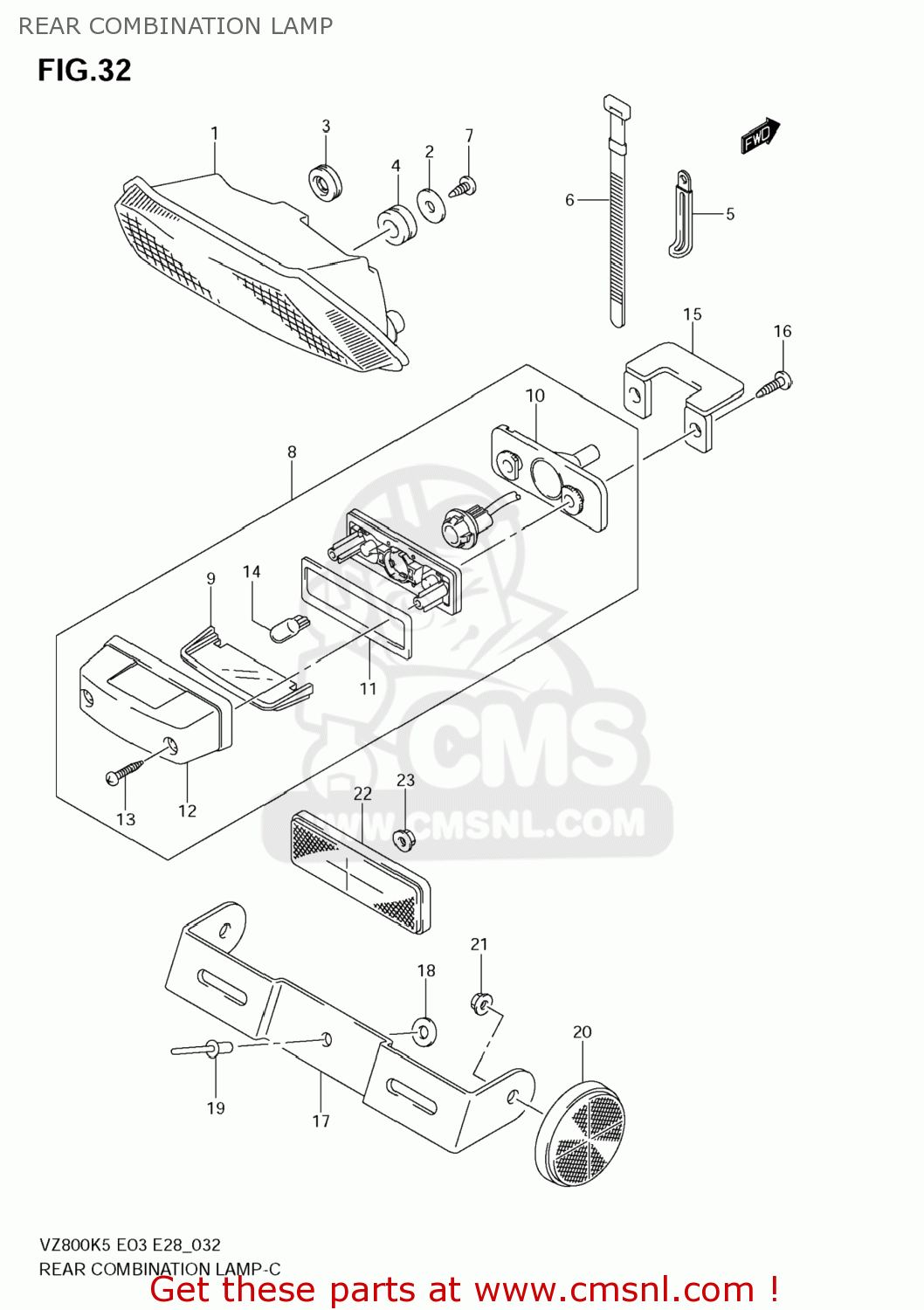

Rear combination lamp diagram VZ800 BOULEVARD M50 2005 (K5) USA (E03) BOULEVARDM50 BOULEVARD-M

REAR COMBINATION LAMP VZ800 BOULEVARD M50 2005 (K5) USA (E03) BOULEVARDM50 BOULEVARD-M

REAR COMBINATION LAMP VZ800 BOULEVARD M50 2005 (K5) USA (E03) BOULEVARDM50 BOULEVARD-M

prices are in EUR

ref

part #

description

quantity

1

3571039G30
ref: 1

LAMP ASSY,RR COMBINATION

€ 0.00

2

0916005501
ref: 2

WASHER(5.5X20X1.2)

€ 2.00

3

0930810017
ref: 3

GROMMET

€ 3.50

4

0932010049
ref: 4

CUSHION

€ 2.00

5

0940406429
ref: 5

CLAMP(L:45)

€ 2.50

6

0940714403
ref: 6

CLAMP(L:125)

€ 2.50

7

035410512B
ref: 7

SCREW

€ 2.00

8

3591016G50
ref: 8

LAMP ASSY,LICENSE

€ 0.00

9

3591216G00
ref: 9

LENS

€ 7.50

10

3591616G10
ref: 10

CUSHION

€ 0.00

11

3591316G00
ref: 11

GASKET (NAS)

€ 5.50

12

3591716G00
ref: 12

COVER

€ 7.00

13

032110416A
ref: 13

SCREW

€ 1.50

14

0947112216
ref: 14

BULB(12V5W)

€ 5.00

15

3592616G00
ref: 15

BRACKET,LICENSE

€ 7.00

16

035410520B
ref: 16

SCREW

€ 2.50

17

3592739G30
ref: 17

BRACKET,LICENSE PLATE

€ 10.00

18

0916005045
ref: 18

WASHER(5.5X18X1)

€ 2.00

19

0922904050
ref: 19

RIVET

€ 2.00

20

3597014A20
ref: 20

REFLECTOR ASSY,RR SIDE

€ 11.00

21

083161005B
ref: 21

NUT

€ 2.50

22

3597007F01
ref: 22

REFLECTOR ASSY,RR

€ 20.50

23

083161005B
ref: 23

NUT

€ 2.50
