TURNSIGNAL FRONT & REAR LAMP (VZ800K9)

VZ800 BOULEVARD M50 2005 (K5) USA (E03) BOULEVARDM50 BOULEVARD-M

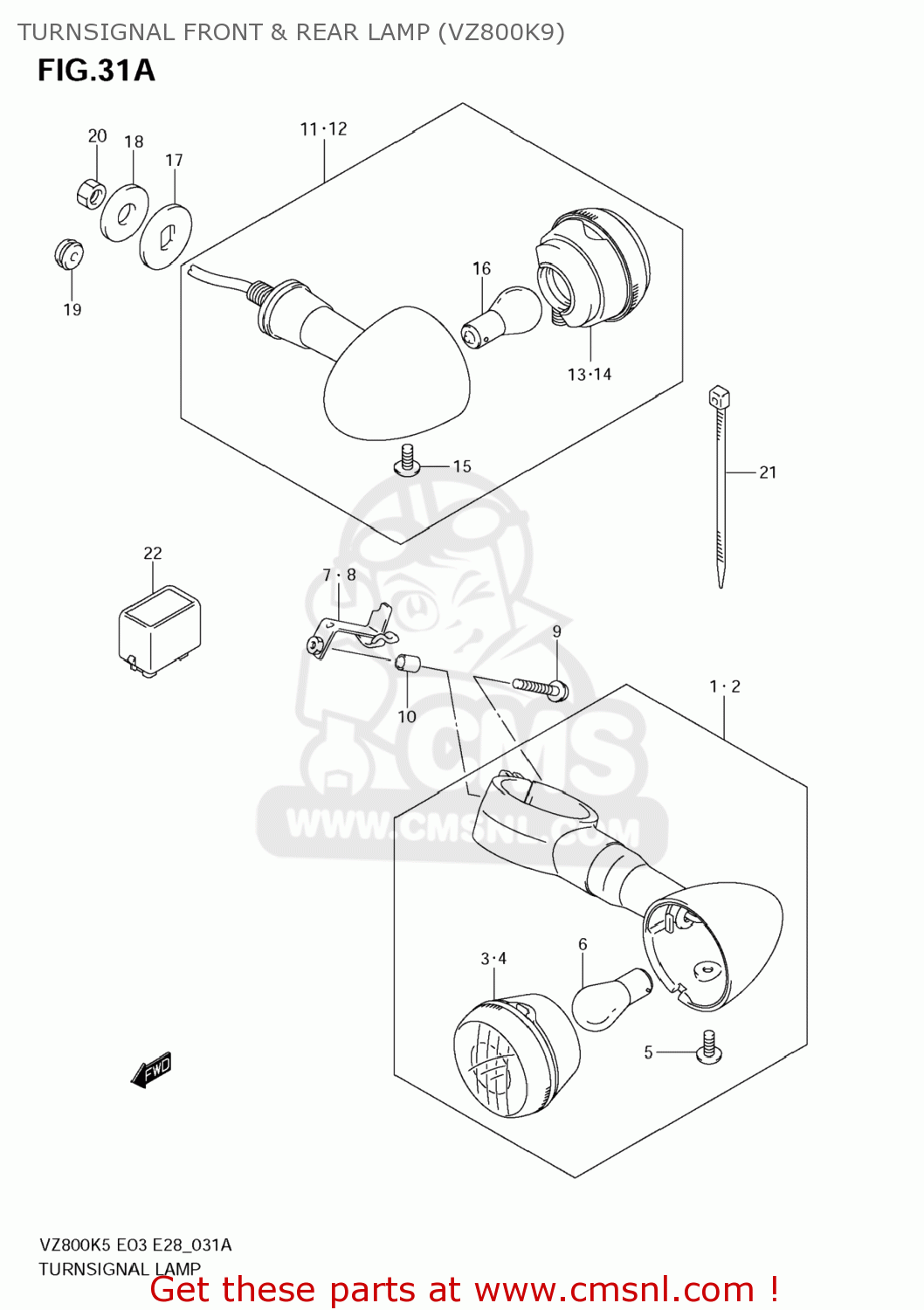

Turnsignal front & rear lamp (vz800k9) diagram VZ800 BOULEVARD M50 2005 (K5) USA (E03) BOULEVARDM50 BOULEVARD-M

TURNSIGNAL FRONT & REAR LAMP (VZ800K9) VZ800 BOULEVARD M50 2005 (K5) USA (E03) BOULEVARDM50 BOULEVARD-M
TURNSIGNAL FRONT & REAR LAMP (VZ800K9) VZ800 BOULEVARD M50 2005 (K5) USA (E03) BOULEVARDM50 BOULEVARD-M
TURNSIGNAL FRONT & REAR LAMP (VZ800K9) VZ800 BOULEVARD M50 2005 (K5) USA (E03) BOULEVARDM50 BOULEVARD-M
prices are in EUR
ref
part #
description
quantity
1
3560148E70
ref: 1
LAMP ASSY,FR TURN SIGNAL,R
€ 97.00
2
3560248E70
ref: 2
LAMP ASSY,FR TURN SIGNAL,L
€ 0.00
3
3561038AA0
ref: 3
LENS
3561038AA0
€ 19.50
4
3563038AA0
ref: 4
LENS
3563038AA0
€ 19.50
5
3562338AA0
ref: 5
SCREW(4X10)
3562338AA0
€ 4.00
6
0947112083
ref: 6
09471-12128
BULB(12V21/5W)
0947112083
€ 6.00
7
3567139G00
ref: 7
BRACKET,FR TURNSIGNAL,R
3567139G00
€ 7.00
8
3568139G00
ref: 8
BRACKET,FR TURNSIGNAL,L
€ 7.00
9
0913606082
ref: 9
SCREW(6X25)
0913606082
€ 3.00
10
0918006121
ref: 10
SPACER(6.4X9.2X12)
0918006121
€ 2.50
11
3560338AE0
ref: 11
LAMP ASSY,RR TURNSIGNAL,R
3560338AE0
€ 99.50
12
3560438AE0
ref: 12
LAMP ASSY,RR TURNSIGNAL,L
3560438AE0
€ 68.50
13
3563038AE1
ref: 13
LENS
3563038AE1
€ 19.50
14
3561038AE1
ref: 14
LENS
3561038AE1
€ 19.50
15
3562338AA0
ref: 15
SCREW(4X10)
3562338AA0
€ 4.00
16
0947112045
ref: 16
BULB(12V21W)
0947112045
€ 5.00
17
3569517C00
ref: 17
SPACER,RR TURNSIGNAL
3569517C00
€ 3.00
18
0916010501
ref: 18
WASHER(10.5X30X2.3)
0916010501
€ 2.50
19
0930805015
ref: 19
GROMMET
0930805015
€ 4.50
20
083100010B
ref: 20
NUT
083100010B
€ 2.00
21
0940714407
ref: 21
CLAMP(L:145)
0940714407
€ 4.00
22
3861003F00
ref: 22
RELAY ASSY,TURNSIGNAL LAMP
3861003F00
€ 88.50
