Buy Suzuki VZ Parts Online


CRANKSHAFT

VZ800 BOULEVARD M50 2005 (K5) USA (E03) BOULEVARDM50 BOULEVARD-M

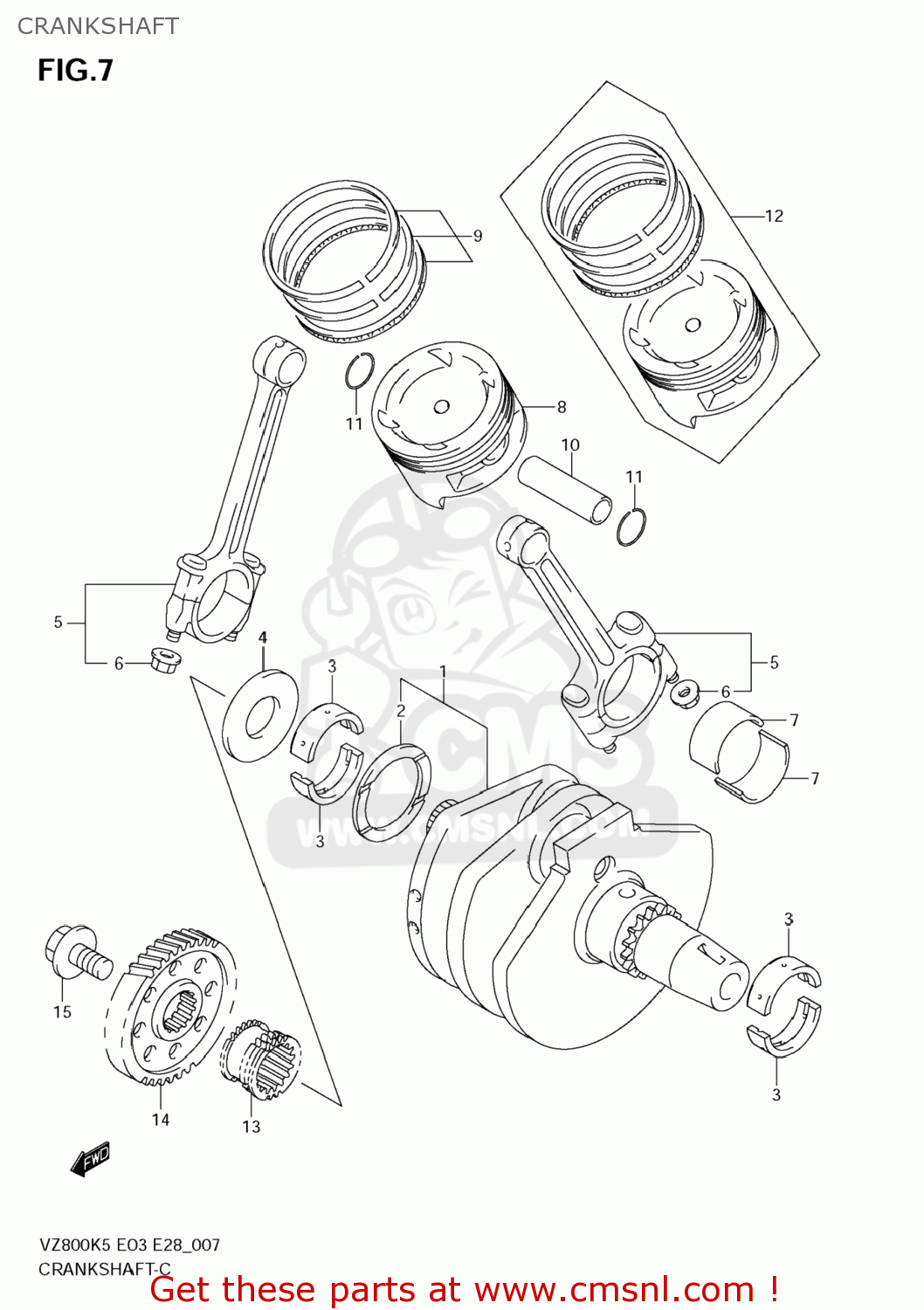

Crankshaft diagram VZ800 BOULEVARD M50 2005 (K5) USA (E03) BOULEVARDM50 BOULEVARD-M

CRANKSHAFT VZ800 BOULEVARD M50 2005 (K5) USA (E03) BOULEVARDM50 BOULEVARD-M
CRANKSHAFT VZ800 BOULEVARD M50 2005 (K5) USA (E03) BOULEVARDM50 BOULEVARD-M
CRANKSHAFT VZ800 BOULEVARD M50 2005 (K5) USA (E03) BOULEVARDM50 BOULEVARD-M
prices are in EUR
ref
part #
description
quantity
1
1200041810
ref: 1
CRANKSHAFT SET
€ 899.00
2-1
0916048001
ref: 2-1
WASHER(48.1X64X1.94)
0916048001
€ 20.00
2-10
0916048010
ref: 2-10
WASHER(48.1X64X2.16)
0916048010
€ 18.50
2-2
0916048002
ref: 2-2
WASHER(48.1X64X1.96)
0916048002
€ 22.00
2-3
0916048003
ref: 2-3
WASHER(48.1X64X1.99)
0916048003
€ 20.00
2-4
0916048004
ref: 2-4
WASHER(48.1X64X2.01)
0916048004
€ 22.00
2-5
0916048005
ref: 2-5
WASHER(48.1X64X2.04)
0916048005
€ 22.00
2-6
0916048006
ref: 2-6
WASHER(48.1X64X2.06)
0916048006
€ 20.00
2-7
0916048007
ref: 2-7
WASHER(48.1X64X2.09)
0916048007
€ 18.50
2-8
0916048008
ref: 2-8
WASHER(48.1X64X2.11)
0916048008
€ 18.00
2-9
0916048009
ref: 2-9
WASHER(48.1X64X2.14)
0916048009
€ 18.50
3-1
1222939G000A0
ref: 3-1
BEARING,CRANKSHAFT
1222939G000A0
€ 14.00
3-2
1222939G000B0
ref: 3-2
BEARING,CRANKSHAFT
1222939G000B0
€ 14.00
3-3
1222939G000C0
ref: 3-3
BEARING,CRANKSHAFT
€ 15.00
4
1265238A00
ref: 4
WASHER,CRANK THRUST
1265238A00
€ 61.50
5-1
1216045C10
ref: 5-1
CONNECTING ROD ASSY
1216045C10
€ 151.00
5-2
1216045C30
ref: 5-2
CONNECTING ROD ASSY
1216045C30
€ 151.00
6
0915909001
ref: 6
NUT
0915909001
€ 6.50
7-1
1216438E000A0
ref: 7-1
BEARING,CRANK PIN
1216438E000A0
€ 12.00
7-2
1216438E000B0
ref: 7-2
BEARING,CRANK PIN
1216438E000B0
€ 12.00
7-3
1216438E000C0
ref: 7-3
BEARING,CRANK PIN
1216438E000C0
€ 12.50
7-4
1216438E000D0
ref: 7-4
BEARING,CRANK PIN
1216438E000D0
€ 12.50
7-5
1216438E000E0
ref: 7-5
BEARING,CRANK PIN
1216438E000E0
€ 11.50
8
1211141F000F0
ref: 8
PISTON
1211141F000F0
€ 94.50
9
1214041F00
ref: 9
RING SET,PISTON
1214041F00
€ 53.50
10
1215124A00
ref: 10
PIN,PISTON
1215124A00
€ 24.00
11
0938120004
ref: 11
CIRCLIP,PISTON PIN
0938120004
€ 2.50
12
1210041F00050
ref: 12
PISTON SET,OS0
€ 120.50
13
1273138A00
ref: 13
SPROCKET,CAM CHAIN DRIVE,R
€ 44.50
14
2111138A00
ref: 14
GEAR,PRIMARY DRIVE
2111138A00
€ 108.50
15
0910312013
ref: 15
BOLT(12X28)
0910312013
€ 8.00
