WATER PUMP

VZ800 BOULEVARD M50 2005 (K5) USA (E03) BOULEVARDM50 BOULEVARD-M

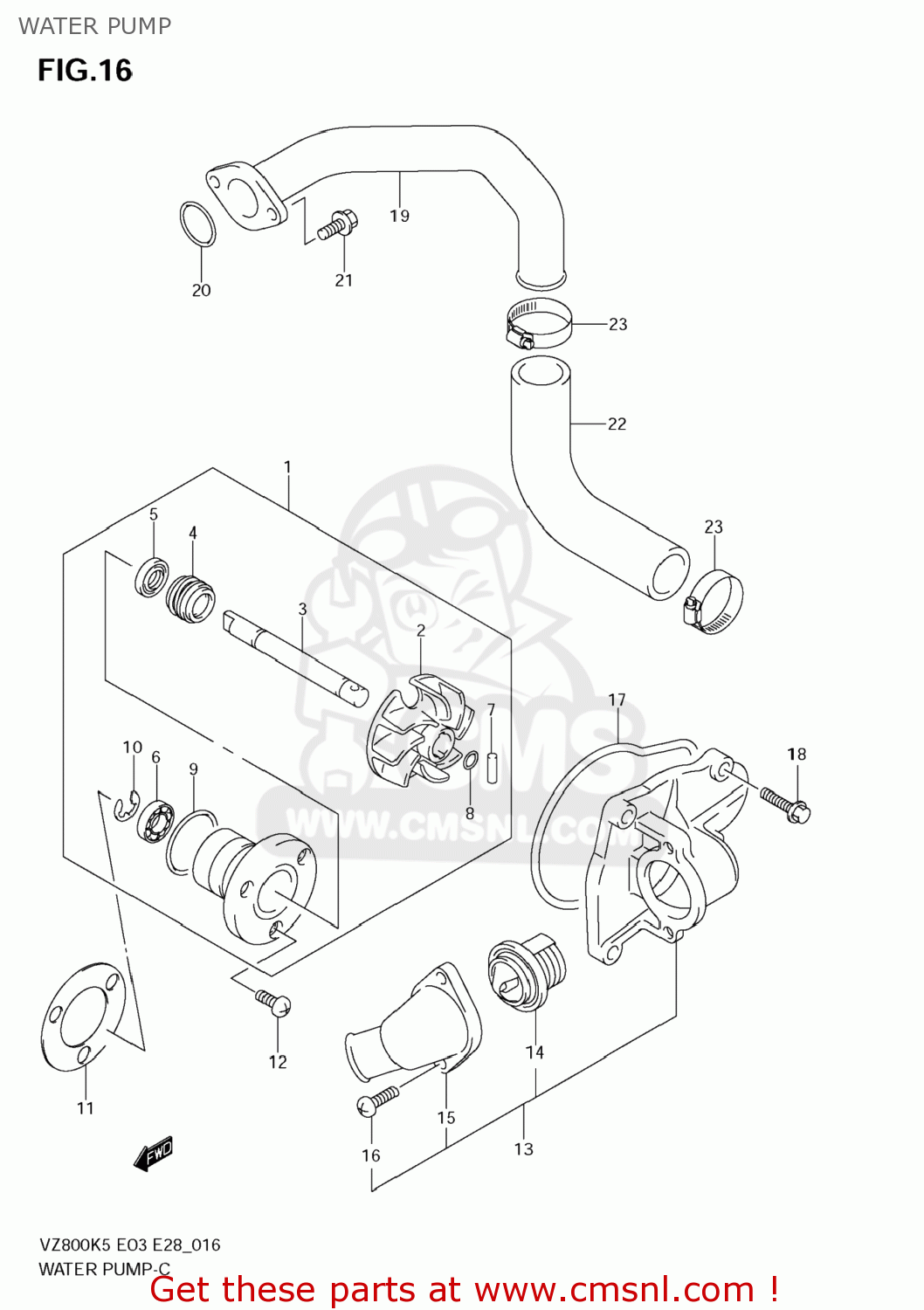

Water pump diagram VZ800 BOULEVARD M50 2005 (K5) USA (E03) BOULEVARDM50 BOULEVARD-M

WATER PUMP VZ800 BOULEVARD M50 2005 (K5) USA (E03) BOULEVARDM50 BOULEVARD-M
WATER PUMP VZ800 BOULEVARD M50 2005 (K5) USA (E03) BOULEVARDM50 BOULEVARD-M
WATER PUMP VZ800 BOULEVARD M50 2005 (K5) USA (E03) BOULEVARDM50 BOULEVARD-M
prices are in EUR
ref
part #
description
quantity
1
1740038A10
ref: 1
PUMP ASSY,WATER
1740038A10
€ 133.50
2
1749138A00
ref: 2
IMPELLER
1749138A00
€ 12.50
3
1751138A00
ref: 3
SHAFT
1751138A00
€ 30.50
4
1747002F10
ref: 4
SEAL,MECHANICAL
1747002F10
€ 21.50
5
0928310004
ref: 5
SEAL,OIL(10X21X5)
0928310004
€ 4.50
6
0926210004
ref: 6
BEARING(10X22X6)
0926210004
€ 20.50
7
1751638A00
ref: 7
PIN
1751638A00
€ 4.00
8
1751538A00
ref: 8
O RING
1751538A00
€ 1.50
9
1741738A00
ref: 9
O RING
1741738A00
€ 2.50
10
0833211086
ref: 10
08332-1108A
E RING
0833211086
€ 2.00
11
1743138A10
ref: 11
GASKET,WATER PUMP (NAS)
1743138A10
€ 5.00
12
021120612B
ref: 12
SCREW
021120612B
€ 1.50
13-1
1741041F10
ref: 13-1
CAP ASSY,WATER PUMP
€ 96.50
13-2
1741041F30
ref: 13-2
CAP ASSY,WATER PUMP
1741041F30
€ 100.50
14-1
1767033410
ref: 14-1
THERMOSTAT,WATER
1767033410
€ 37.00
14-2
1767033400
ref: 14-2
THERMOSTAT,WATER
1767033400
€ 29.50
15
1741241F00
ref: 15
CONNECTOR
€ 30.00
16
021120616A
ref: 16
SCREW
021120616A
€ 1.50
17
1743538A00
ref: 17
O RING,WATER PUMP CAP
1743538A00
€ 5.00
18
015470620B
ref: 18
BOLT
015470620B
€ 2.50
19
1789041F00
ref: 19
PIPE,CYLINDER INLET
1789041F00
€ 29.00
20
0928024007
ref: 20
O RING(D:2.3,ID:24.4)
0928024007
€ 2.00
21
015470616B
ref: 21
BOLT
015470616B
€ 2.50
22
1785838820
ref: 22
HOSE,WATER PUMP OUTLET
1785838820
€ 16.50
23
0940232512
ref: 23
CLAMP
0940232512
€ 9.00
