Buy Suzuki VZ Parts Online


CRANKCASE COVER

VZ800 BOULEVARD M50 2005 (K5) USA (E03) BOULEVARDM50 BOULEVARD-M

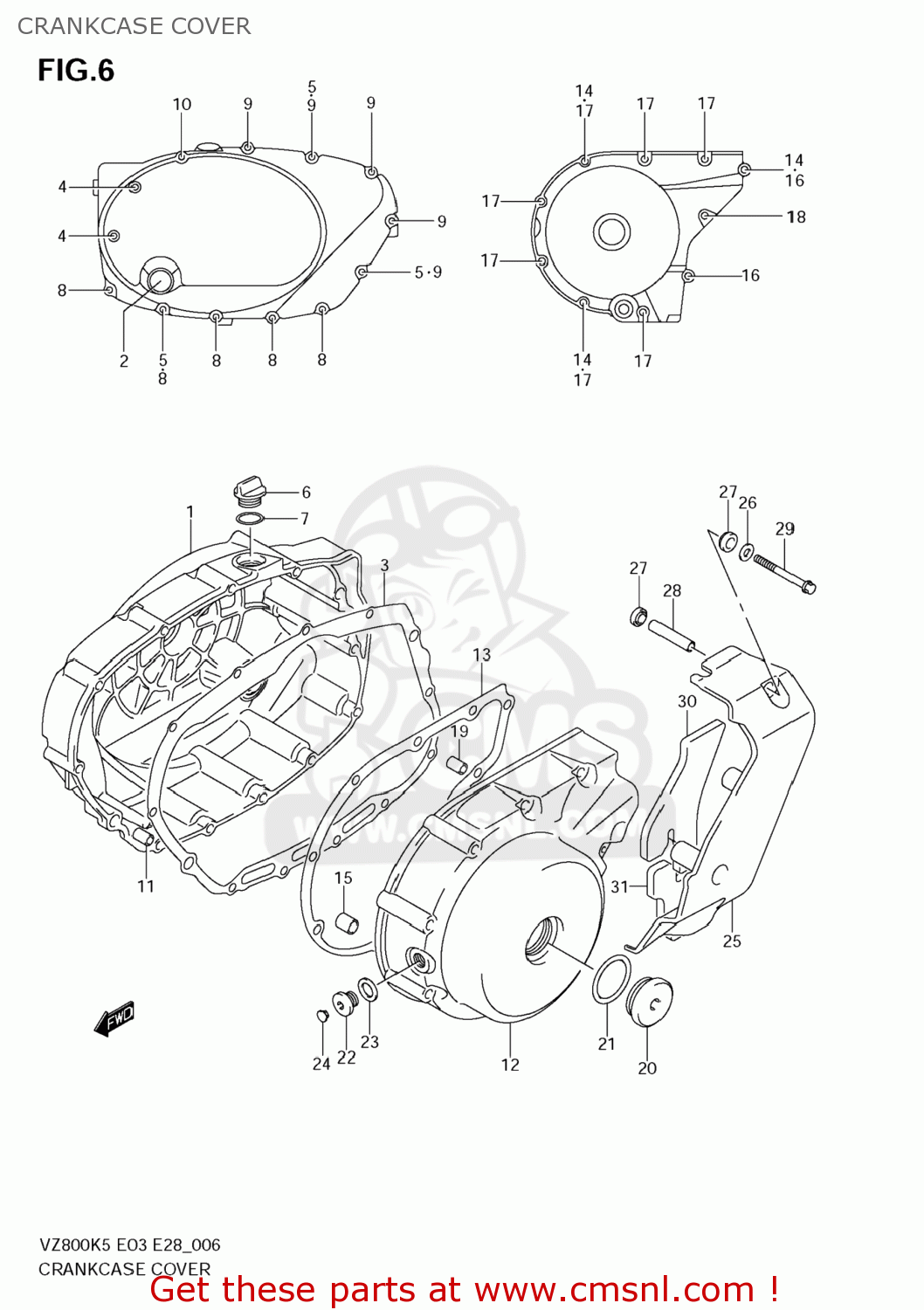

Crankcase cover diagram VZ800 BOULEVARD M50 2005 (K5) USA (E03) BOULEVARDM50 BOULEVARD-M

CRANKCASE COVER VZ800 BOULEVARD M50 2005 (K5) USA (E03) BOULEVARDM50 BOULEVARD-M
CRANKCASE COVER VZ800 BOULEVARD M50 2005 (K5) USA (E03) BOULEVARDM50 BOULEVARD-M
CRANKCASE COVER VZ800 BOULEVARD M50 2005 (K5) USA (E03) BOULEVARDM50 BOULEVARD-M
prices are in EUR
ref
part #
description
quantity
1
1134039G00
ref: 1
COVER,CLUTCH
1134039G00
€ 339.00
2
1197133210
ref: 2
LENS,OIL LEVEL CHECK
1197133210
€ 13.50
3
1148241F00
ref: 3
GASKET,CLUTCH COVER (NAS)
1148241F00
€ 15.50
4
0910306270
ref: 4
BOLT(6X105)
€ 2.50
5
0916806023
ref: 5
GASKET(5.8X13X1.2) (NAS)
0916806023
€ 2.00
6
1197125D00
ref: 6
PLUG,ENGINE OIL FILLER
1197125D00
€ 5.50
7
0928017003
ref: 7
O RING(D:3.1,ID:16.8)
0928017003
€ 2.00
8
0910306213
ref: 8
BOLT(6X30)
0910306213
€ 2.50
9
0910306238
ref: 9
BOLT(6X50)
0910306238
€ 2.50
10
0910306226
ref: 10
BOLT(6X85)
0910306226
€ 2.50
11
0421109189
ref: 11
PIN
0421109189
€ 2.00
12
1135139G00
ref: 12
11351-39G01
COVER,GENERATO
€ 296.50
13
1148341F00
ref: 13
GASKET,GENERATOR COVER (NAS)
1148341F00
€ 11.50
14
0916806023
ref: 14
GASKET(5.8X13X1.2) (NAS)
0916806023
€ 2.00
15
0920611007
ref: 15
PIN(8.4X11X20)
0920611007
€ 1.50
16
0910306215
ref: 16
BOLT(6X40)
0910306215
€ 2.00
17
0910306216
ref: 17
BOLT(6X55)
0910306216
€ 2.50
18
0910306226
ref: 18
BOLT(6X85)
0910306226
€ 2.50
19
0421109189
ref: 19
PIN
0421109189
€ 2.00
20
0925936008
ref: 20
Chrome Crankshaft Plug
0925936008
€ 8.50
21
0928033004
ref: 21
O RING(D:3.1,ID:32.7)
0928033004
€ 2.50
22
0924814005
ref: 22
PLUG,14X12
0924814005
€ 5.00
23
0916814002
ref: 23
09168-14004
GASKET(13.8X18.8X4.8) (NAS)
0916814002
€ 2.50
24
0925008012
ref: 24
CAP(OD:12)
0925008012
€ 2.00
25
1136139G00
ref: 25
COVER,SECONDARY DRIVE UNIT
1136139G00
€ 136.00
26
0916006125
ref: 26
WASHER(6.5X14X1.6)
0916006125
€ 2.00
27
0916109005
ref: 27
WASHER(8.7X16X5)
0916109005
€ 2.50
28
0918006280
ref: 28
SPACER(6.5X9X41.3)
0918006280
€ 4.00
29
0910306216
ref: 29
BOLT(6X55)
0910306216
€ 2.50
30
1136239G00
ref: 30
CUSHION,SEC DR UNIT COVER NO.1
1136239G00
€ 9.00
31
1136339G00
ref: 31
CUSHION,SEC DR UNIT COVER NO.2
€ 7.00
