FRAME BRACE

VZ800 BOULEVARD M50 2005 (K5) USA (E03) BOULEVARDM50 BOULEVARD-M

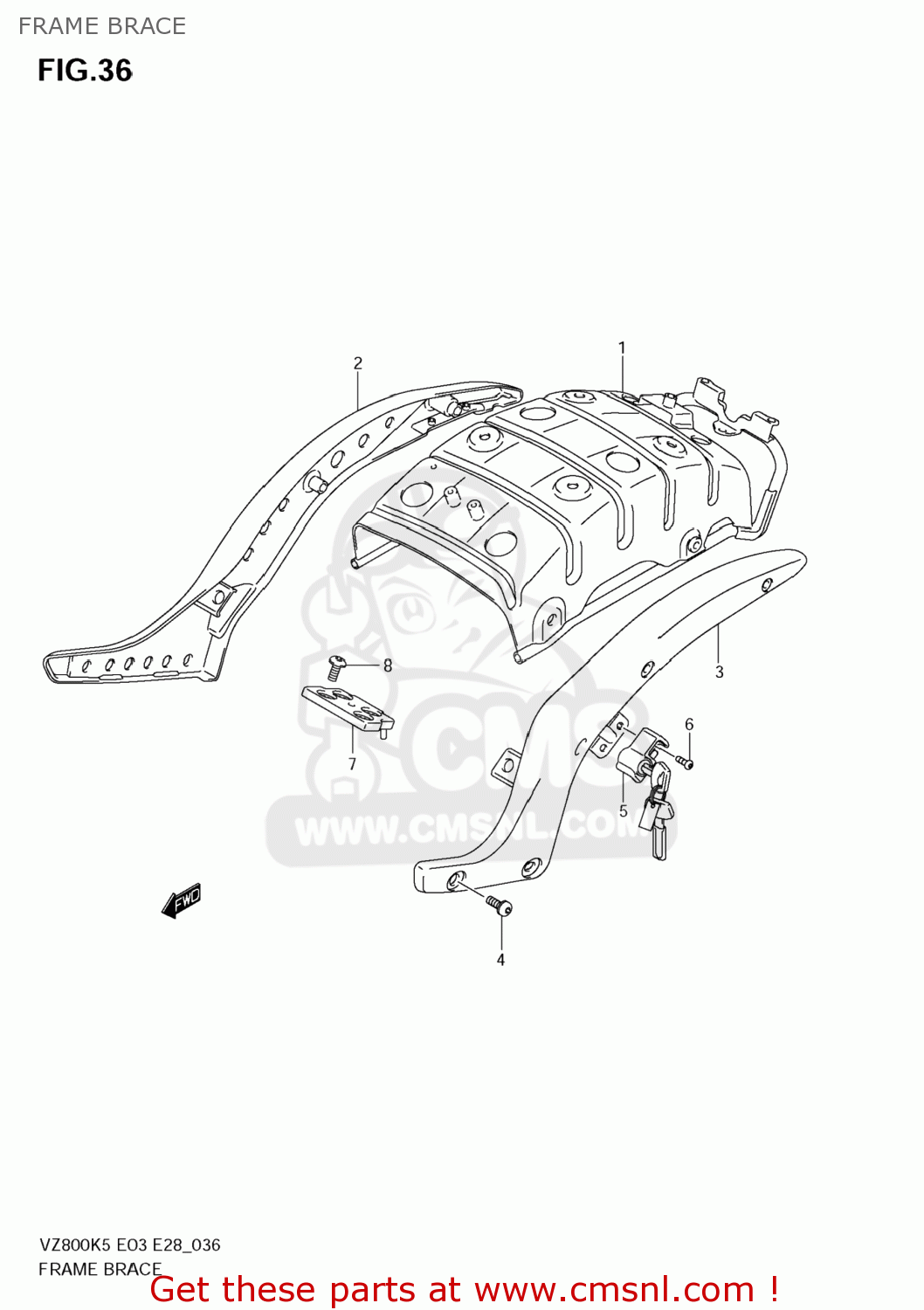

Frame brace diagram VZ800 BOULEVARD M50 2005 (K5) USA (E03) BOULEVARDM50 BOULEVARD-M

FRAME BRACE VZ800 BOULEVARD M50 2005 (K5) USA (E03) BOULEVARDM50 BOULEVARD-M
FRAME BRACE VZ800 BOULEVARD M50 2005 (K5) USA (E03) BOULEVARDM50 BOULEVARD-M
FRAME BRACE VZ800 BOULEVARD M50 2005 (K5) USA (E03) BOULEVARDM50 BOULEVARD-M
prices are in EUR
ref
part #
description
quantity
1
4158039G00
ref: 1
BRACE, REAR FRAME
€ 161.50
2
4161041F00
ref: 2
GRIP,FRAME HANDLE,R
€ 224.00
3
4162041F00
ref: 3
GRIP,FRAME HANDLE,L
€ 228.00
4
0913910003
ref: 4
BOLT(10X25)
0913910003
€ 6.00
5
9570041821
ref: 5
LOCK SET,HELMET
9570041821
€ 88.00
6
0913906089
ref: 6
SCREW(6X14)
0913906089
€ 2.50
7
4131041F50
ref: 7
BRACKET,FUEL TANK
4131041F50
€ 74.50
8
0910608140
ref: 8
BOLT(8X16)
0910608140
€ 6.00
