HEADLAMP ASSY

VZ800 BOULEVARD M50 2005 (K5) USA (E03) BOULEVARDM50 BOULEVARD-M

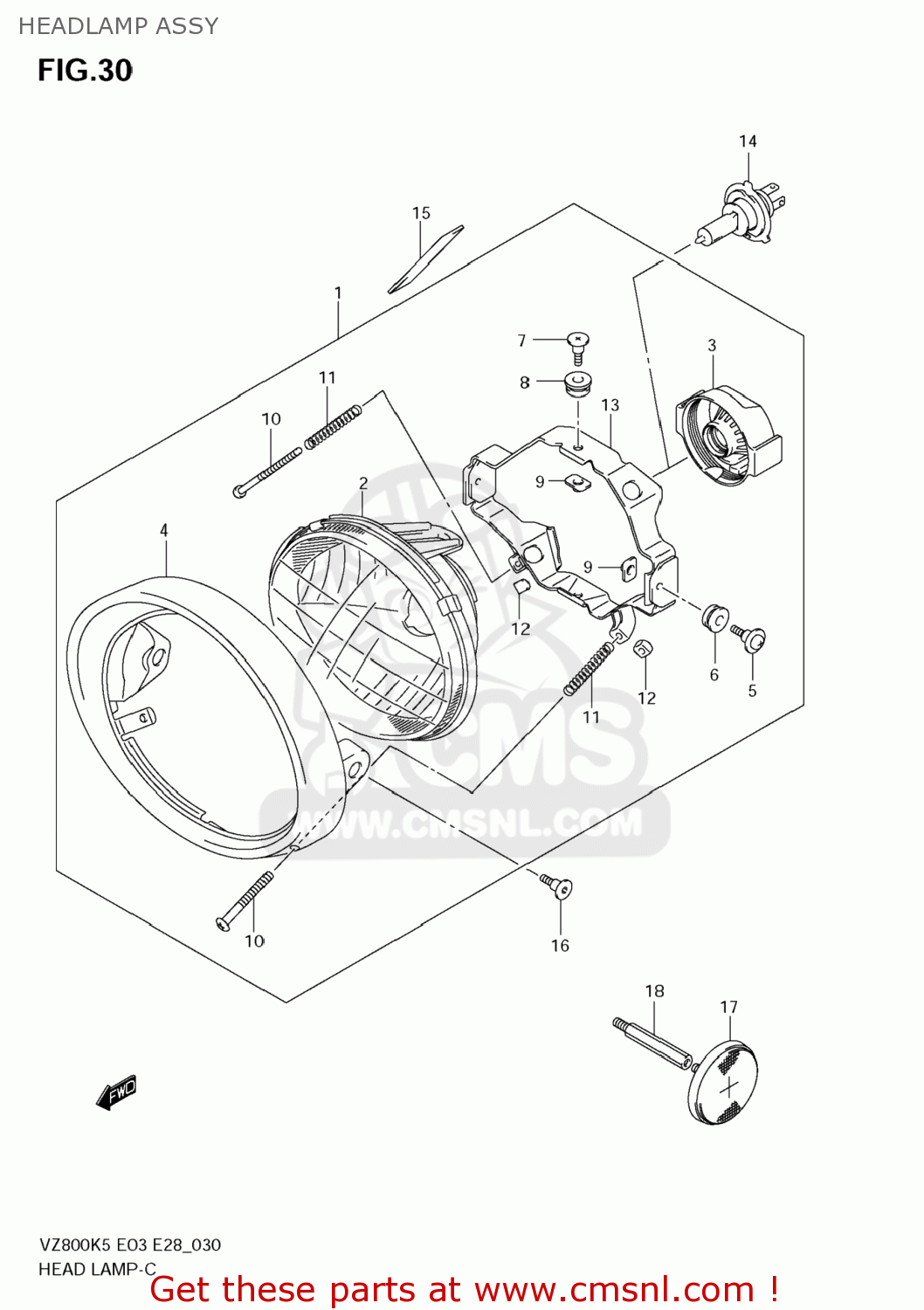

Headlamp assy diagram VZ800 BOULEVARD M50 2005 (K5) USA (E03) BOULEVARDM50 BOULEVARD-M

HEADLAMP ASSY VZ800 BOULEVARD M50 2005 (K5) USA (E03) BOULEVARDM50 BOULEVARD-M

HEADLAMP ASSY VZ800 BOULEVARD M50 2005 (K5) USA (E03) BOULEVARDM50 BOULEVARD-M

prices are in EUR

ref

part #

description

quantity

1

3510039G30999
ref: 1

HEADLAMP ASSY

€ 300.50

2

3512139G30
ref: 2

UNIT

€ 139.00

3

3517313E10
ref: 3

COVER

€ 12.50

4

3511139G20
ref: 4

RIM

€ 144.50

5

3513638A00
ref: 5

SCREW,MOUNTING

€ 2.50

6

3513945230
ref: 6

CUSHION

€ 1.50

7

3513639G20
ref: 7

SCREW

€ 3.00

8

3513938A60
ref: 8

CUSHION

€ 2.50

9

3515538A60
ref: 9

NUT

€ 3.50

10

3515139G30
ref: 10

SCREW,ADJUSTER

€ 4.50

11

3515439G20
ref: 11

SPRING,ADJUSTER

€ 4.00

12

3515245600
ref: 12

NUT,HEADLAMP ADJUST

€ 3.00

13

3513039G30
ref: 13

BRACKET

€ 34.50

14

0947112185
ref: 14
09471-12060

BULB(12V60/55W,H4)

€ 8.00

15

3365226E00
ref: 15

PROTECTOR(20X90)X1.0

€ 3.00

16

0913905081
ref: 16

SCREW(5X12)

€ 3.00

17

3595014A10
ref: 17
35950-14A11

REFLECTOR,REFLEX

€ 11.00

18

0911906104
ref: 18

BOLT

€ 9.50
