FUEL PUMP

VZ800 BOULEVARD M50 2005 (K5) USA (E03) BOULEVARDM50 BOULEVARD-M

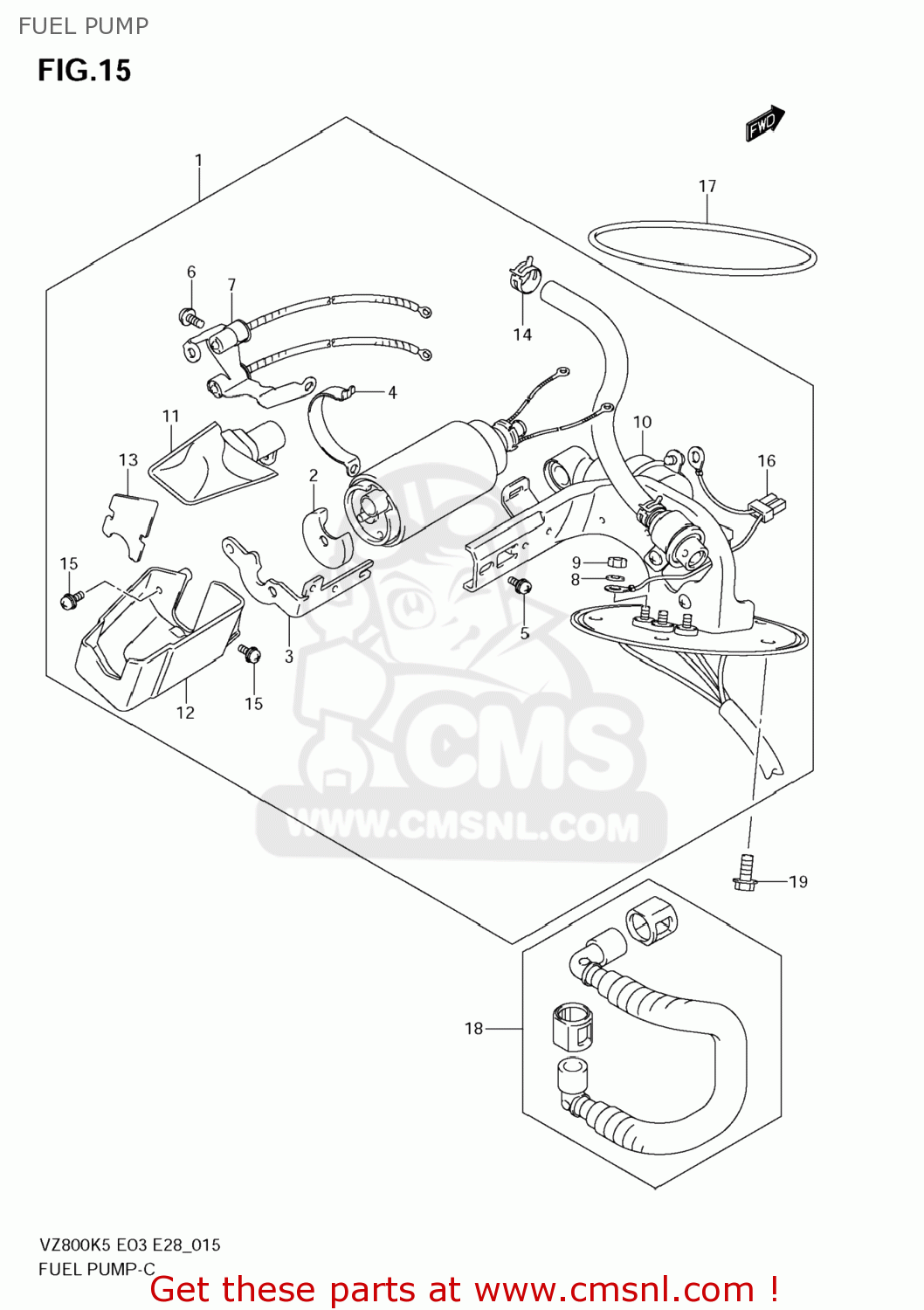

Fuel pump diagram VZ800 BOULEVARD M50 2005 (K5) USA (E03) BOULEVARDM50 BOULEVARD-M

FUEL PUMP VZ800 BOULEVARD M50 2005 (K5) USA (E03) BOULEVARDM50 BOULEVARD-M

FUEL PUMP VZ800 BOULEVARD M50 2005 (K5) USA (E03) BOULEVARDM50 BOULEVARD-M

prices are in EUR

ref

part #

description

quantity

1-1

1510039G00
ref: 1-1

PUMP ASSY,FUEL

€ 769.00

1-2

1510039G10
ref: 1-2

PUMP ASSY,FUEL

€ 694.00

2

1511141F10
ref: 2

CUSHION

€ 10.50

3

1511239G00
ref: 3

HOLDER

€ 22.50

4

1511510F00
ref: 4

BAND,FUEL PUMP

€ 12.00

5

1511610F00
ref: 5

SCREW

€ 3.50

6

1511610F10
ref: 6

SCREW

€ 3.50

7-1

1517039G00
ref: 7-1

THERMISTOR

€ 191.50

7-2

1517039G10
ref: 7-2

THERMISTOR

€ 166.50

8

1517235F00
ref: 8

WASHER,SPRING

€ 4.00

9

1517335F00
ref: 9

NUT

€ 4.50

10

1541039G00
ref: 10

PLATE ASSY

€ 291.50

11

1542039G00
ref: 11

STRAINER,FUEL

€ 50.50

12

1542539G00
ref: 12

VESSEL

€ 28.00

13

1542639G00
ref: 13

COVER

€ 16.00

14

1542739G00
ref: 14

CLIP

€ 9.50

15

1542941F20
ref: 15

SCREW

€ 3.50

16

1518539G10
ref: 16

HARNESS

€ 91.00

17

1520135F00
ref: 17

O RING,FUEL PUMP

€ 26.00

18-1

1581041F00
ref: 18-1

HOSE,FUEL

€ 67.00

18-2

1581039G00
ref: 18-2
15810-39G02

LEIDING.BRANDST

€ 36.00

19

071200612B
ref: 19

BOLT

€ 3.50
