REAR CUSHION LEVER

VZ800 BOULEVARD M50 2005 (K5) USA (E03) BOULEVARDM50 BOULEVARD-M

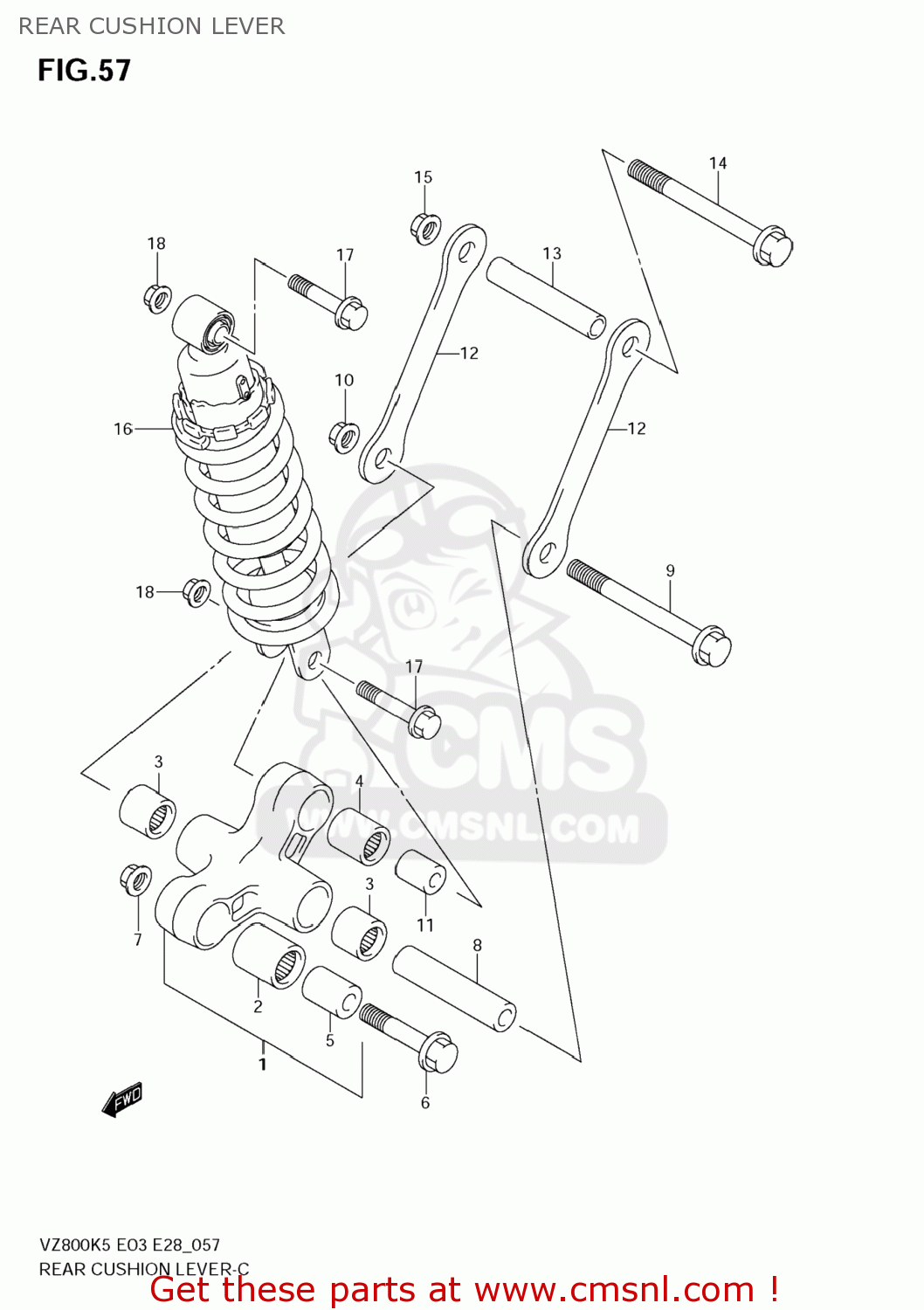

Rear cushion lever diagram VZ800 BOULEVARD M50 2005 (K5) USA (E03) BOULEVARDM50 BOULEVARD-M

REAR CUSHION LEVER VZ800 BOULEVARD M50 2005 (K5) USA (E03) BOULEVARDM50 BOULEVARD-M

REAR CUSHION LEVER VZ800 BOULEVARD M50 2005 (K5) USA (E03) BOULEVARDM50 BOULEVARD-M

prices are in EUR

ref

part #

description

quantity

1

6260033880
ref: 1

LEVER SET,RR CUSHION

€ 264.00

2

0926320073
ref: 2

BEARING(20X27X30)

€ 24.50

3

0926317039
ref: 3

BEARING(17X24X20)

€ 18.00

4

0926317034
ref: 4

BEARING(17X24X26)

€ 21.50

5

6268412C00
ref: 5

SPACER,RR CUSHION LEVER FR

€ 12.50

6

6266842A02
ref: 6

BOLT,CUSHION LEVER FR

€ 7.00

7-1

0831931128
ref: 7-1
08319-3112A

NUT 12MM

€ 4.00

7-2

083193112A
ref: 7-2

NUT

€ 4.00

8

6262633D00
ref: 8

SPACER,RR CUSHION LEVER CTR

€ 17.50

9

6262133D00
ref: 9

BOLT,RR CUSHION LEVER CTR

€ 10.00

10-1

0831931128
ref: 10-1
08319-3112A

NUT 12MM

€ 4.00

10-2

083193112A
ref: 10-2

NUT

€ 4.00

11

6268440A10
ref: 11

SPACER,RR CUSHION LEVER

€ 11.50

12

6264141F00
ref: 12

ROD,RR CUSHION

€ 20.50

13

6262633D00
ref: 13

SPACER,RR CUSHION LEVER CTR

€ 17.50

14

6262133D00
ref: 14

BOLT,RR CUSHION LEVER CTR

€ 10.00

15-1

0831931128
ref: 15-1
08319-3112A

NUT 12MM

€ 4.00

15-2

083193112A
ref: 15-2

NUT

€ 4.00

16-1

6210039G00
ref: 16-1

ABSORBER ASSY,RR SHOCK

€ 481.50

16-2

6210039G10
ref: 16-2

ABSORBER ASSY,RR SHOCK

€ 0.00

17

0910310213
ref: 17

BOLT(10X52)

€ 4.00

18-1

0831931103
ref: 18-1
08319-3110A

NUT

€ 3.00

18-2

083193110B
ref: 18-2

NUT

€ 3.00
