EVAP SYSTEM (MODEL K9)

VZ800 BOULEVARD M50 2005 (K5) USA (E03) BOULEVARDM50 BOULEVARD-M

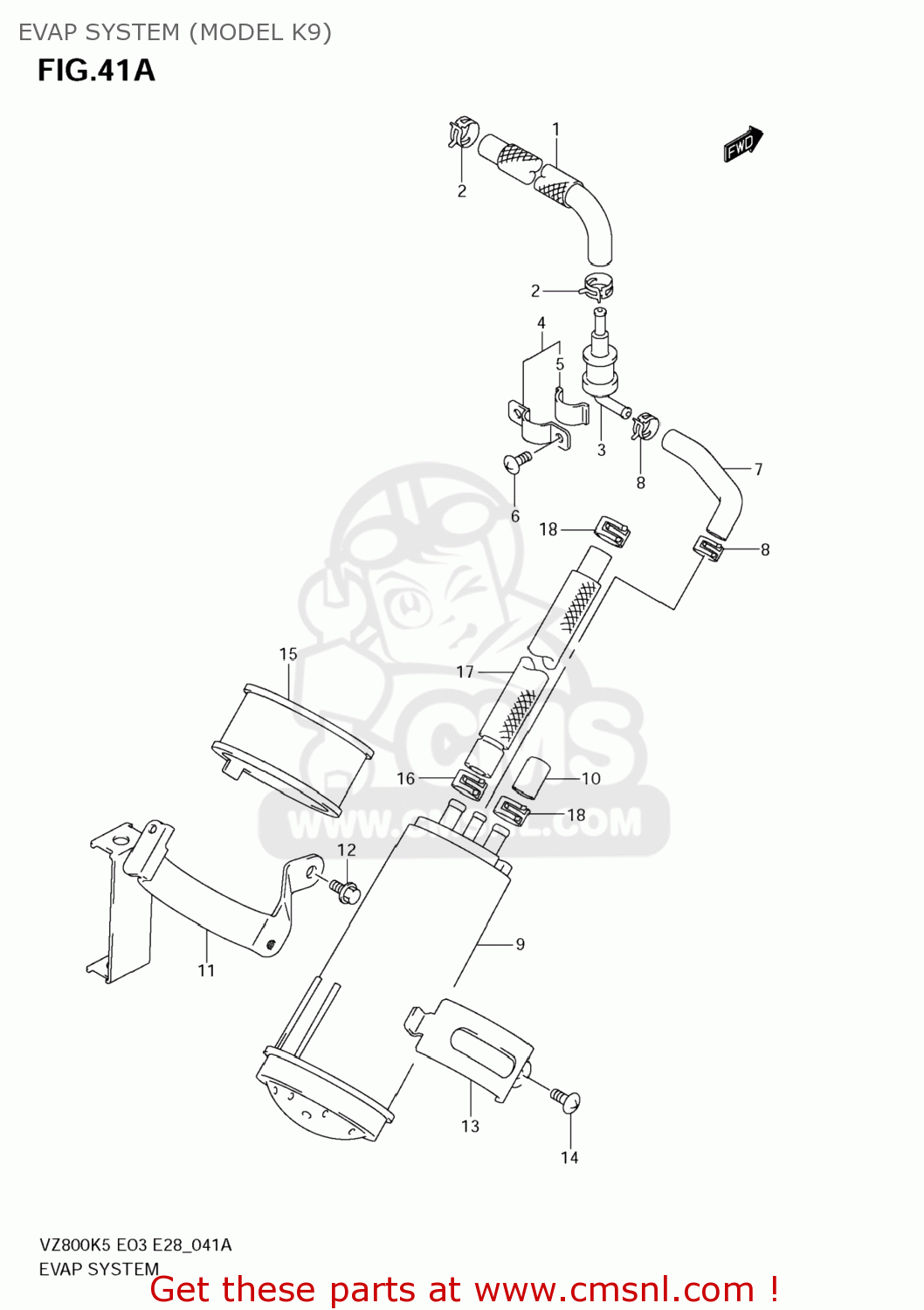

Evap system (model k9) diagram VZ800 BOULEVARD M50 2005 (K5) USA (E03) BOULEVARDM50 BOULEVARD-M

EVAP SYSTEM (MODEL K9) VZ800 BOULEVARD M50 2005 (K5) USA (E03) BOULEVARDM50 BOULEVARD-M

EVAP SYSTEM (MODEL K9) VZ800 BOULEVARD M50 2005 (K5) USA (E03) BOULEVARDM50 BOULEVARD-M

prices are in EUR

ref

part #

description

quantity

1

4443439G01
ref: 1

HOSE,TANK & BREATHER VALVE

€ 19.00

2

0940111413
ref: 2

CLIP

€ 2.50

3

4424017C00
ref: 3

VALVE,FUEL TANK BREATHER

€ 40.00

4

4489224A00
ref: 4

PLATE,FUEL TANK BREATHER NO.2

€ 3.00

5

4489424A00
ref: 5

CUSHION

€ 1.50

6

021420408B
ref: 6

SCREW

€ 1.50

7

4443539G10
ref: 7

HOSE,BREATHER VALVE & CANISTER

€ 15.00

8

0940111413
ref: 8

CLIP

€ 2.50

9

1720017H00
ref: 9

CANISTER SET

€ 176.00

10

0925107003
ref: 10

CAP,OD:11.5

€ 2.00

11

4488043H00
ref: 11

BRACKET,FI CONTROL UNIT

€ 18.00

12

0913906108
ref: 12

SCREW(6X12)

€ 3.00

13

4488226E00
ref: 13

HOLDER,CANISTER

€ 8.00

14

021420610B
ref: 14

SCREW

€ 2.00

15

4488326E00
ref: 15

CUSHION,CANISTER

€ 9.00

16

0940112404
ref: 16

CLIP

€ 2.50

17

4443643H00
ref: 17

HOSE,CSTR PURGE

€ 18.50

18

0940111413
ref: 18

CLIP

€ 2.50
