FRONT DAMPER

VZ800 BOULEVARD M50 2005 (K5) USA (E03) BOULEVARDM50 BOULEVARD-M

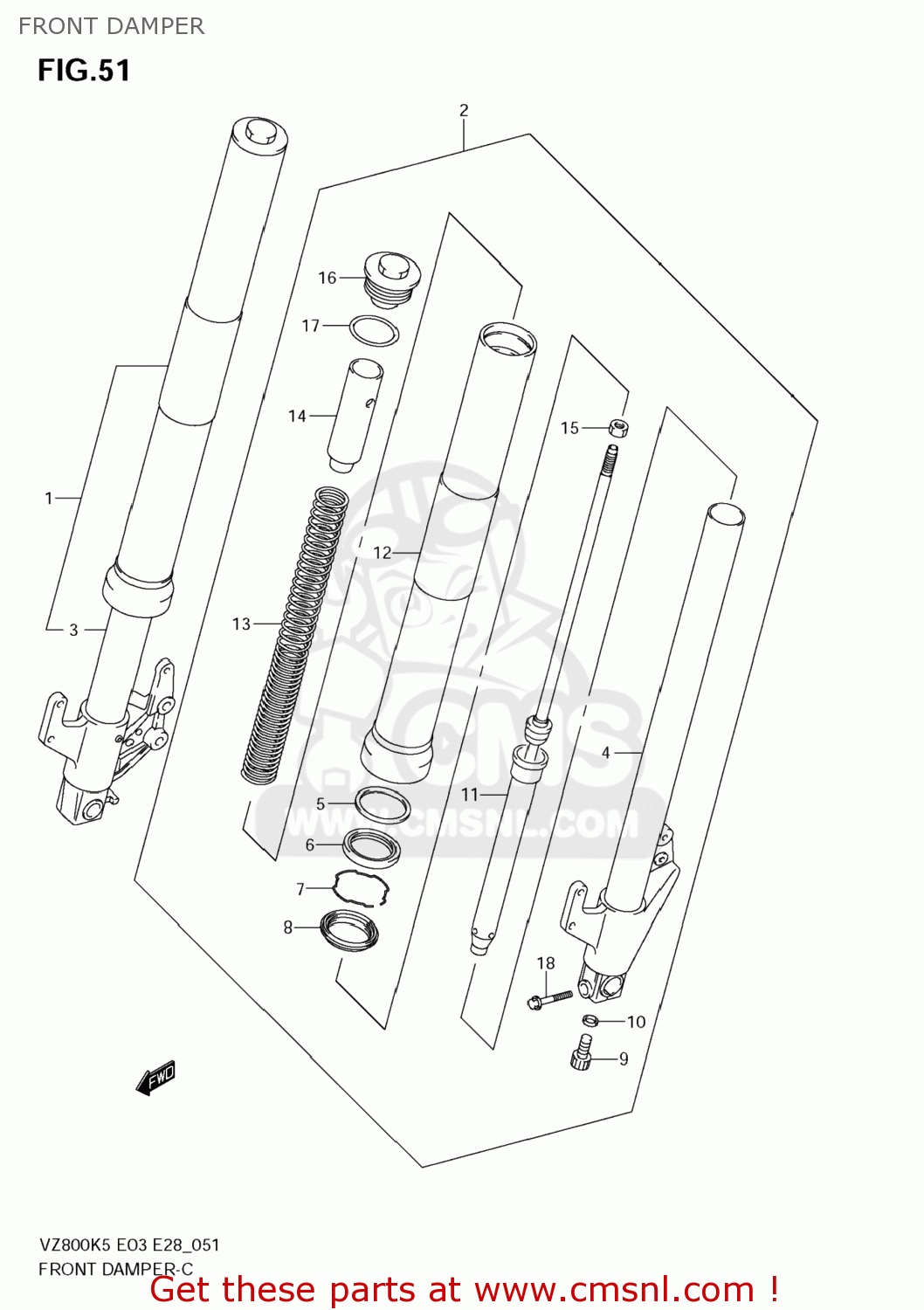

Front damper diagram VZ800 BOULEVARD M50 2005 (K5) USA (E03) BOULEVARDM50 BOULEVARD-M

FRONT DAMPER VZ800 BOULEVARD M50 2005 (K5) USA (E03) BOULEVARDM50 BOULEVARD-M

FRONT DAMPER VZ800 BOULEVARD M50 2005 (K5) USA (E03) BOULEVARDM50 BOULEVARD-M

prices are in EUR

ref

part #

description

quantity

1

5110339G00
ref: 1

DAMPER ASSY,FR FORK,R

€ 865.50

2

5110439G00
ref: 2

DAMPER ASSY,FR FORK,L

€ 852.00

3

5111039G00
ref: 3

TUBE,INNER,R

€ 638.50

4

5112039G00
ref: 4

TUBE,INNER,L

€ 671.00

5

5115805A00
ref: 5

WASHER,FORK OIL SEAL

€ 5.00

6

5115310G50
ref: 6

SEAL,OIL

€ 13.50

7

5115649440
ref: 7

RING,OIL SEAL STOPPER

€ 5.50

8

5117314F00
ref: 8

SEAL,DUST

€ 18.50

9

5114740300
ref: 9

BOLT,CYLINDER

€ 5.50

10

5114840300
ref: 10

GASKET,CYLINDER (NAS)

€ 2.50

11

5114639G00
ref: 11

CYLINDER

€ 272.00

12

5113039G00
ref: 12

TUBE,OUTER

€ 647.00

13

5117139G00
ref: 13

SPRING,FR

€ 81.00

14

5117640F30
ref: 14

SPACER,SPRING

€ 12.50

15

5135213A60
ref: 15

NUT,ROD

€ 1.50

16

5135139G00
ref: 16

CAP

€ 103.50

17

6227814100
ref: 17

O RING

€ 3.50

18

5116610G00
ref: 18

BOLT

€ 3.50
