REAR SWINGING ARM

VZ800 BOULEVARD M50 2005 (K5) USA (E03) BOULEVARDM50 BOULEVARD-M

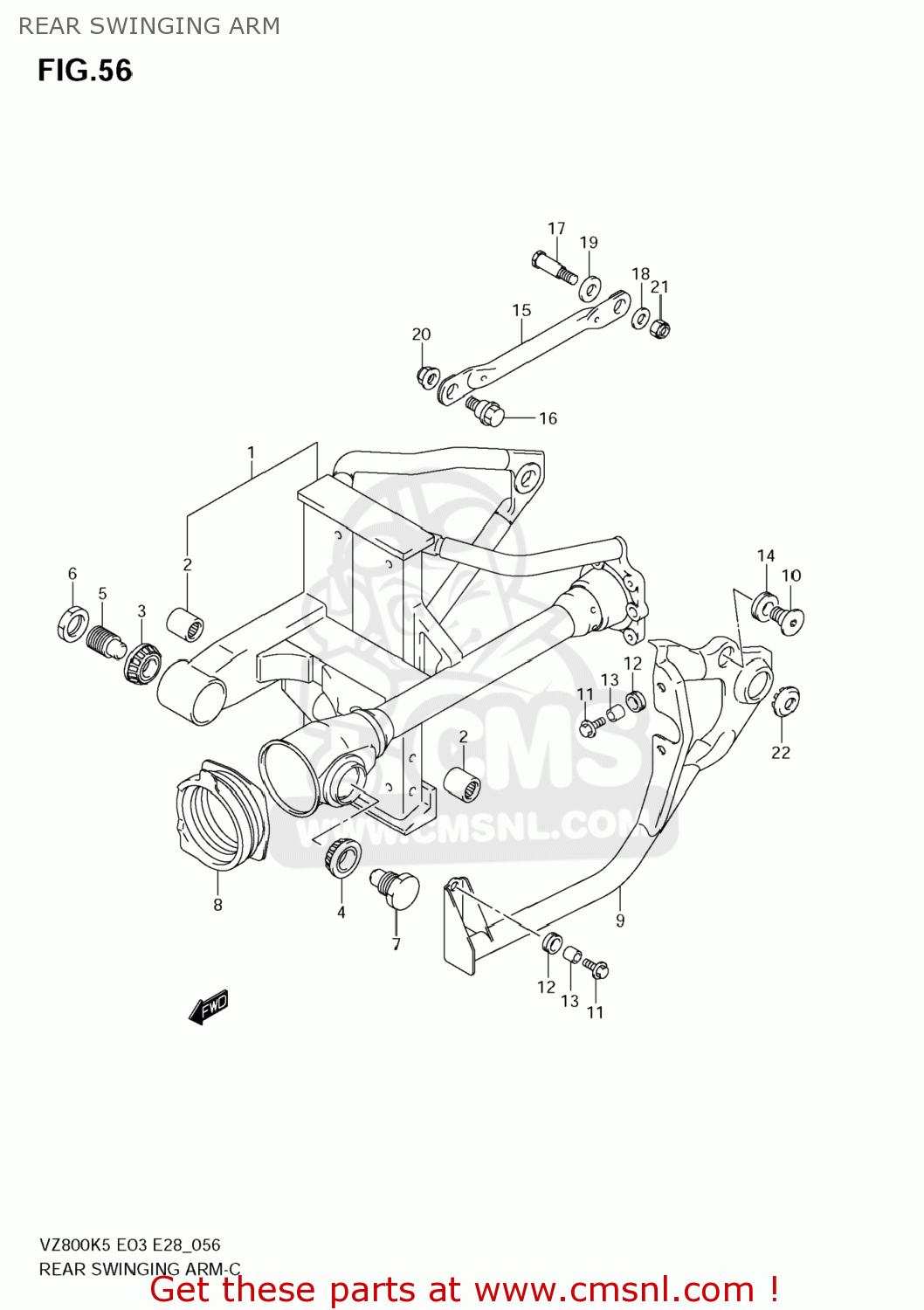

Rear swinging arm diagram VZ800 BOULEVARD M50 2005 (K5) USA (E03) BOULEVARDM50 BOULEVARD-M

REAR SWINGING ARM VZ800 BOULEVARD M50 2005 (K5) USA (E03) BOULEVARDM50 BOULEVARD-M

REAR SWINGING ARM VZ800 BOULEVARD M50 2005 (K5) USA (E03) BOULEVARDM50 BOULEVARD-M

prices are in EUR

ref

part #

description

quantity

1

6110141872019
ref: 1
61101-41890-019

SWINGINGARM SET,RR

€ 919.00

2

0926317037
ref: 2

BEARING(17X24X25)

€ 19.00

3

0926517013
ref: 3

BEARING(17X40X13.25)

€ 51.50

3

0926517013
ref: 3

BEARING(17X40X13.25)

€ 51.50

4

0926517012
ref: 4

BEARING(17X40X13.25)

€ 38.00

4

0926517012
ref: 4

BEARING(17X40X13.25)

€ 38.00

5

6121324A00
ref: 5

BOLT,RR SWGARM PIVOT

€ 18.50

6

0914024007
ref: 6

NUT

€ 5.50

7

6121310F00
ref: 7

BOLT,SWINGINGARM PIVOT,L

€ 16.00

8

6137241F00
ref: 8

BOOT,PROPELLER SHAFT

€ 11.00

9

6112041F10019
ref: 9

COVER,RR SWINGINGARM,L(BLACK)

€ 160.50

10

6112741F10
ref: 10

BOLT,RR SWGARM

€ 11.00

11

0911606152
ref: 11

BOLT(6X20)

€ 2.50

12

0932010056
ref: 12

CUSHION

€ 2.00

13

0918006286
ref: 13

SPACER(6.5X10X9.4)

€ 3.00

14

0932022003
ref: 14

CUSHION

€ 3.00

15

6431041F00
ref: 15

TORQUE LINK,RR

€ 17.00

16

0911110062
ref: 16

BOLT(10X22)

€ 6.00

17

0911110057
ref: 17

BOLT(10X41)

€ 4.50

18

0916010142
ref: 18

WASHER(10X20X2.3)

€ 2.00

19

0932012501
ref: 19

CUSHION

€ 6.50

20

083193110B
ref: 20

NUT

€ 3.50

21

083192110A
ref: 21

NUT

€ 2.50

22

4189942F10
ref: 22

CAP,FRAME PIVOT

€ 9.00
