Buy Suzuki VZ Parts Online


FUEL TANK COVER

VZ800 BOULEVARD M50 2005 (K5) USA (E03) BOULEVARDM50 BOULEVARD-M

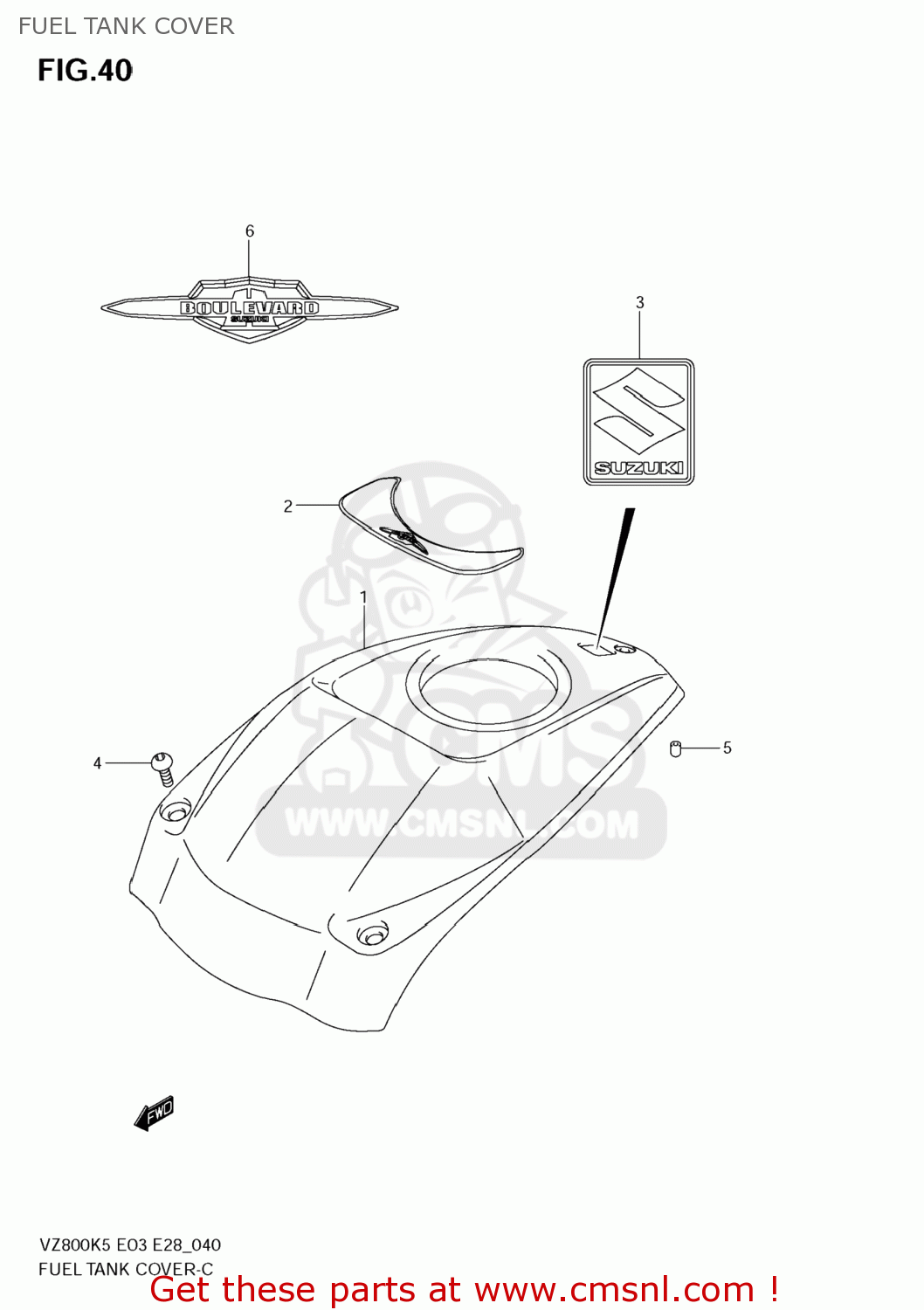

Fuel tank cover diagram VZ800 BOULEVARD M50 2005 (K5) USA (E03) BOULEVARDM50 BOULEVARD-M

FUEL TANK COVER VZ800 BOULEVARD M50 2005 (K5) USA (E03) BOULEVARDM50 BOULEVARD-M
FUEL TANK COVER VZ800 BOULEVARD M50 2005 (K5) USA (E03) BOULEVARDM50 BOULEVARD-M
FUEL TANK COVER VZ800 BOULEVARD M50 2005 (K5) USA (E03) BOULEVARDM50 BOULEVARD-M
prices are in EUR
ref
part #
description
quantity
1-1
4429039G00
ref: 1-1
COVER,FUEL TANK UPR
4429039G00
€ 182.50
1-2
4429039G10
ref: 1-2
COVER,FUEL TANK UPR
€ 202.50
2-1
4429239G00
ref: 2-1
EMBLEM,FUEL TANK COVER
4429239G00
€ 31.00
2-2
4429239G10
ref: 2-2
EMBLEM,FUEL TANK COVER
4429239G10
€ 34.50
3
6828135F00
ref: 3
EMBLEM,S
6828135F00
€ 13.00
4
0913905071
ref: 4
SCREW(5X13)
0913905071
€ 3.50
5
0932903001
ref: 5
CUSHION
0932903001
€ 1.50
6
6828141F10
ref: 6
EMBLEM,BOULEVARD
6828141F10
€ 33.00
