FUEL TANK (MODEL K9)

VZ800 BOULEVARD M50 2005 (K5) USA (E03) BOULEVARDM50 BOULEVARD-M

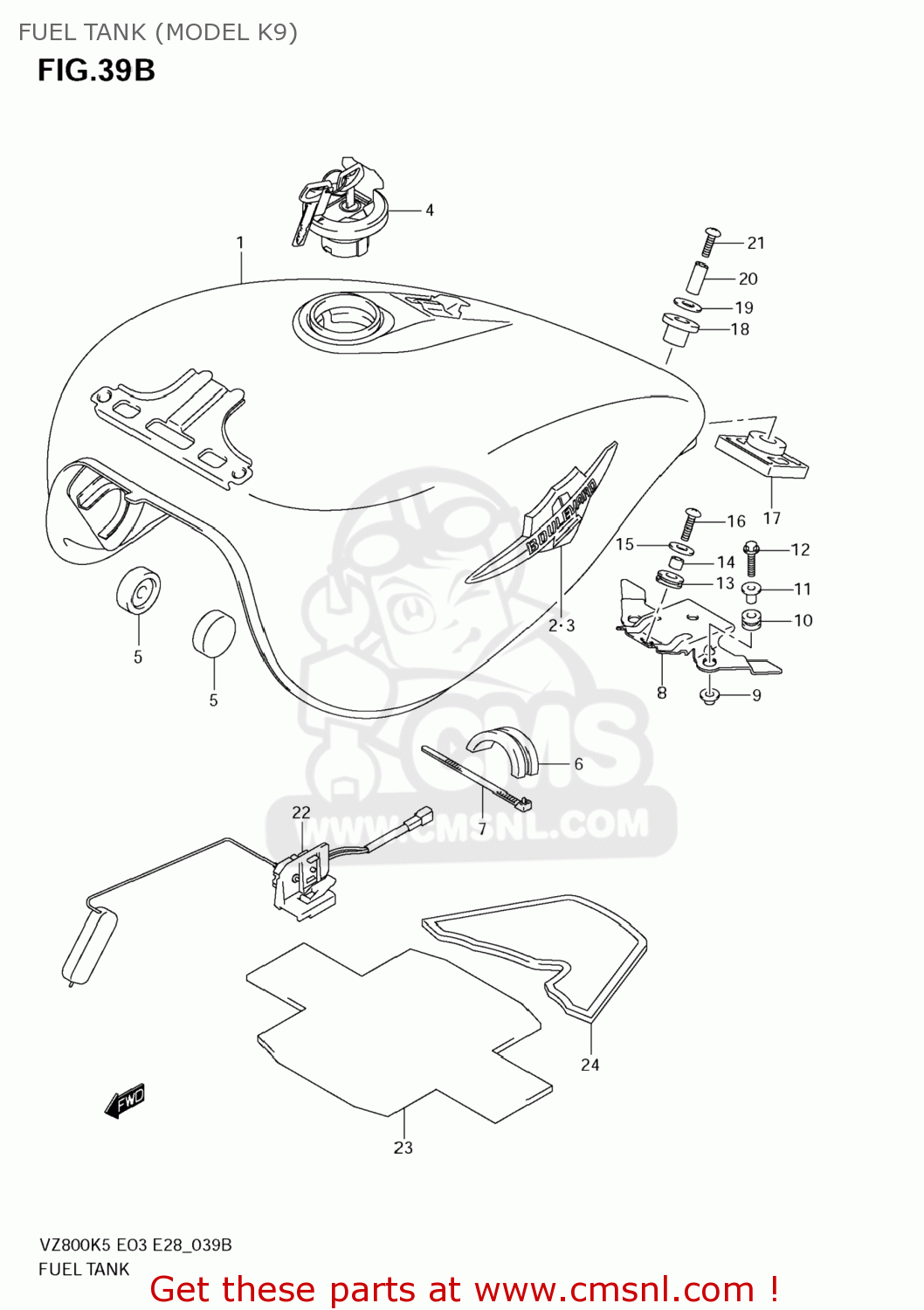

Fuel tank (model k9) diagram VZ800 BOULEVARD M50 2005 (K5) USA (E03) BOULEVARDM50 BOULEVARD-M

FUEL TANK (MODEL K9) VZ800 BOULEVARD M50 2005 (K5) USA (E03) BOULEVARDM50 BOULEVARD-M

FUEL TANK (MODEL K9) VZ800 BOULEVARD M50 2005 (K5) USA (E03) BOULEVARDM50 BOULEVARD-M

prices are in EUR

ref

part #

description

quantity

1-1

4410039G60YAY
ref: 1-1

TANK ASSY,FUEL(BLACK)

€ 571.00

1-2

4410039G80YAY
ref: 1-2

TANK ASSY,FUEL(BLACK)

€ 630.00

1-3

4410039GG0EAJ
ref: 1-3

TANK ASSY,FUEL

€ 675.00

1-4

4410039GG0GHK
ref: 1-4

TANK ASSY,FUEL

€ 675.00

1-5

4410039GJ0EAJ
ref: 1-5

TANK ASSY,FUEL

€ 675.00

1-6

4410039GJ0GHK
ref: 1-6

TANK ASSY,FUEL

€ 675.00

2

6811139G01
ref: 2

EMBLEM,FUEL TANK,R

€ 53.00

3

6812139G01
ref: 3

EMBLEM,FUEL TANK,L

€ 53.00

4-1

4420039830
ref: 4-1

CAP SET,FUEL TANK

€ 110.50

4-2

4420039840
ref: 4-2

CAP SET,FUEL TANK

€ 226.00

5

0932910007
ref: 5

CUSHION

€ 3.00

6

4454114F10
ref: 6

CUSHION,FUEL TANK LWR

€ 5.00

7

0940725402
ref: 7

CLAMP(L:250)

€ 4.50

8

4453039G10
ref: 8

BRACKET,FUEL TANK RR

€ 19.50

9

0916906076
ref: 9

WASHER

€ 2.50

10

0932008001
ref: 10

CUSHION

€ 3.50

11

0916906070
ref: 11

WASHER

€ 3.50

12

021620625B
ref: 12

SCREW

€ 2.00

13

0932012011
ref: 13

CUSHION

€ 3.00

14

0918008188
ref: 14

SPACER(8.5X12X7.5)

€ 3.00

15

0916008151
ref: 15

WASHER(8.5X26X1.6)

€ 2.00

16

0910608167
ref: 16

BOLT(8X20)

€ 3.50

17

4454241F00
ref: 17

CUSHION,FUEL TANK RR LWR

€ 8.00

18

4454141F01
ref: 18

CUSHION,FUEL TANK RR UPR

€ 6.50

19

0918008057
ref: 19

SPACER (8.2X12.5X23.5)

€ 2.00

20

0916008140
ref: 20
09160-08146

WASHER (8.5X33X1.6)

€ 3.00

21

015500835A
ref: 21

BOLT

€ 3.50

22

3481039G00
ref: 22

GAUGE ASSY,FUEL LEVEL SENDER

€ 112.00

23

4419239G00
ref: 23

SHIELD,FUEL TANK HEAT

€ 94.00

24

4419339G00
ref: 24

SHIELD,FUEL TANK HEAT NO.2

€ 82.50
