LUGGAGE BOX

VZ800 BOULEVARD M50 2005 (K5) USA (E03) BOULEVARDM50 BOULEVARD-M

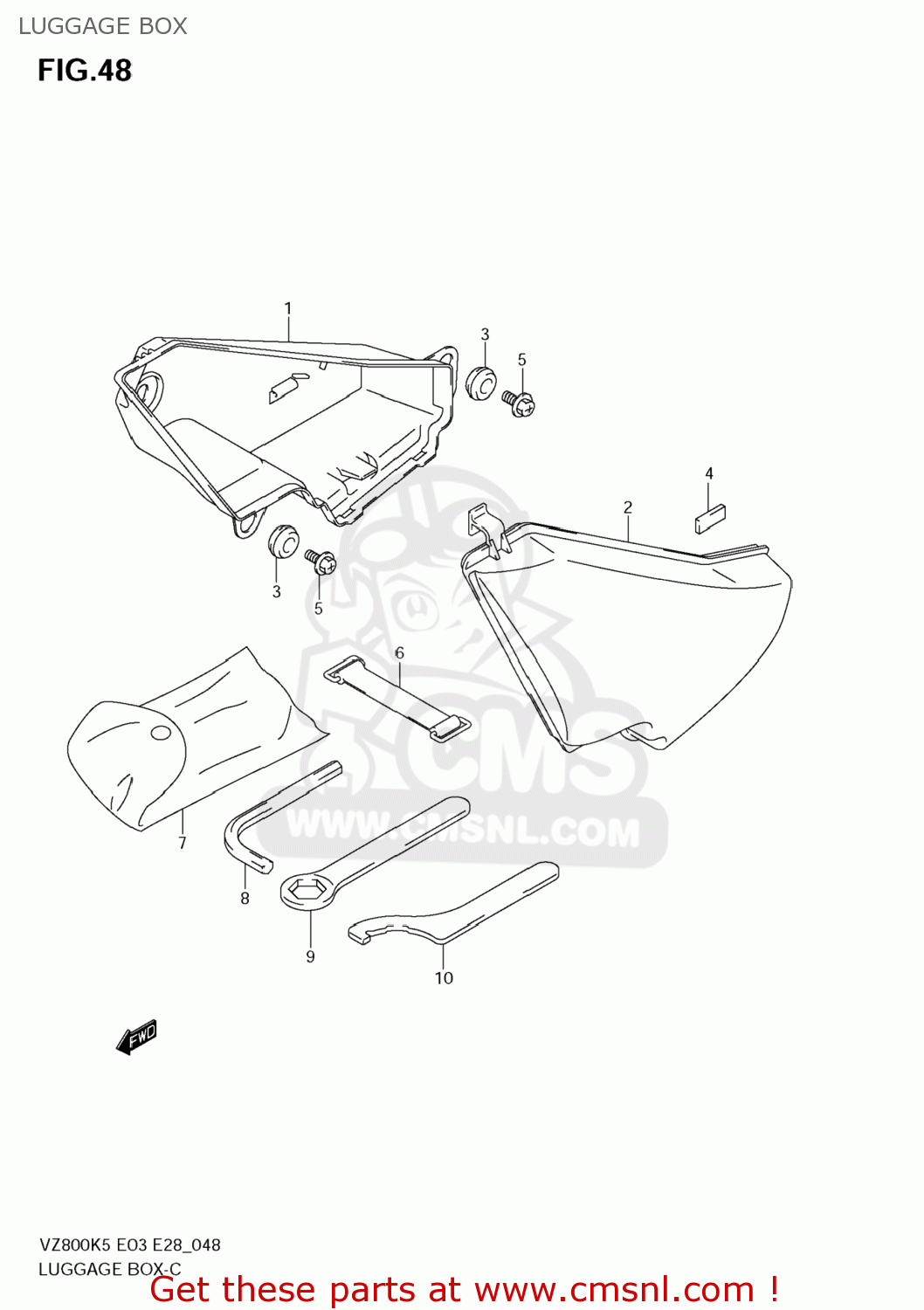

Luggage box diagram VZ800 BOULEVARD M50 2005 (K5) USA (E03) BOULEVARDM50 BOULEVARD-M

LUGGAGE BOX VZ800 BOULEVARD M50 2005 (K5) USA (E03) BOULEVARDM50 BOULEVARD-M
LUGGAGE BOX VZ800 BOULEVARD M50 2005 (K5) USA (E03) BOULEVARDM50 BOULEVARD-M
LUGGAGE BOX VZ800 BOULEVARD M50 2005 (K5) USA (E03) BOULEVARDM50 BOULEVARD-M
prices are in EUR
ref
part #
description
quantity
1
9221141F00
ref: 1
BODY,LUGGAGE BOX
9221141F00
€ 38.50
2
9221241F01
ref: 2
LID,LUGGAGE BOX
9221241F01
€ 26.00
3-1
9367680020
ref: 3-1
PAD,BALANCER UPPER,R
9367680020
€ 4.50
3-2
3365235F00
ref: 3-2
PROTECTOR,BATTERY
3365235F00
€ 3.00
4
9221341F00
ref: 4
CUSHION,LUGGAGE BOX NO.2
9221341F00
€ 5.00
5
6316143E00
ref: 5
BOLT
6316143E00
€ 3.00
6
0928061002
ref: 6
O RING(D:3.5,ID:61)
0928061002
€ 5.00
7-1
0980021012
ref: 7-1
TOOL ASSY
0980021012
€ 40.00
7-2
0980021055
ref: 7-2
TOOL ASSY
0980021055
€ 6.00
8-1
0981600050
ref: 8-1
SPANNER,HEXAGON(6)
0981600050
€ 5.50
8-2
0981600103
ref: 8-2
SPANNER,HEXAGON(4)
0981600103
€ 3.00
8-3
0981600139
ref: 8-3
HEXAGON SPANNER,12
€ 5.00
8-4
0981600051
ref: 8-4
HEXAGON SPANNER,8
€ 5.50
9
0981700035
ref: 9
RING SPANNER(22)
€ 6.50
10
0982200003
ref: 10
CLAMP
€ 6.00
