HEADLAMP HOUSING

VZ800 BOULEVARD M50 2005 (K5) USA (E03) BOULEVARDM50 BOULEVARD-M

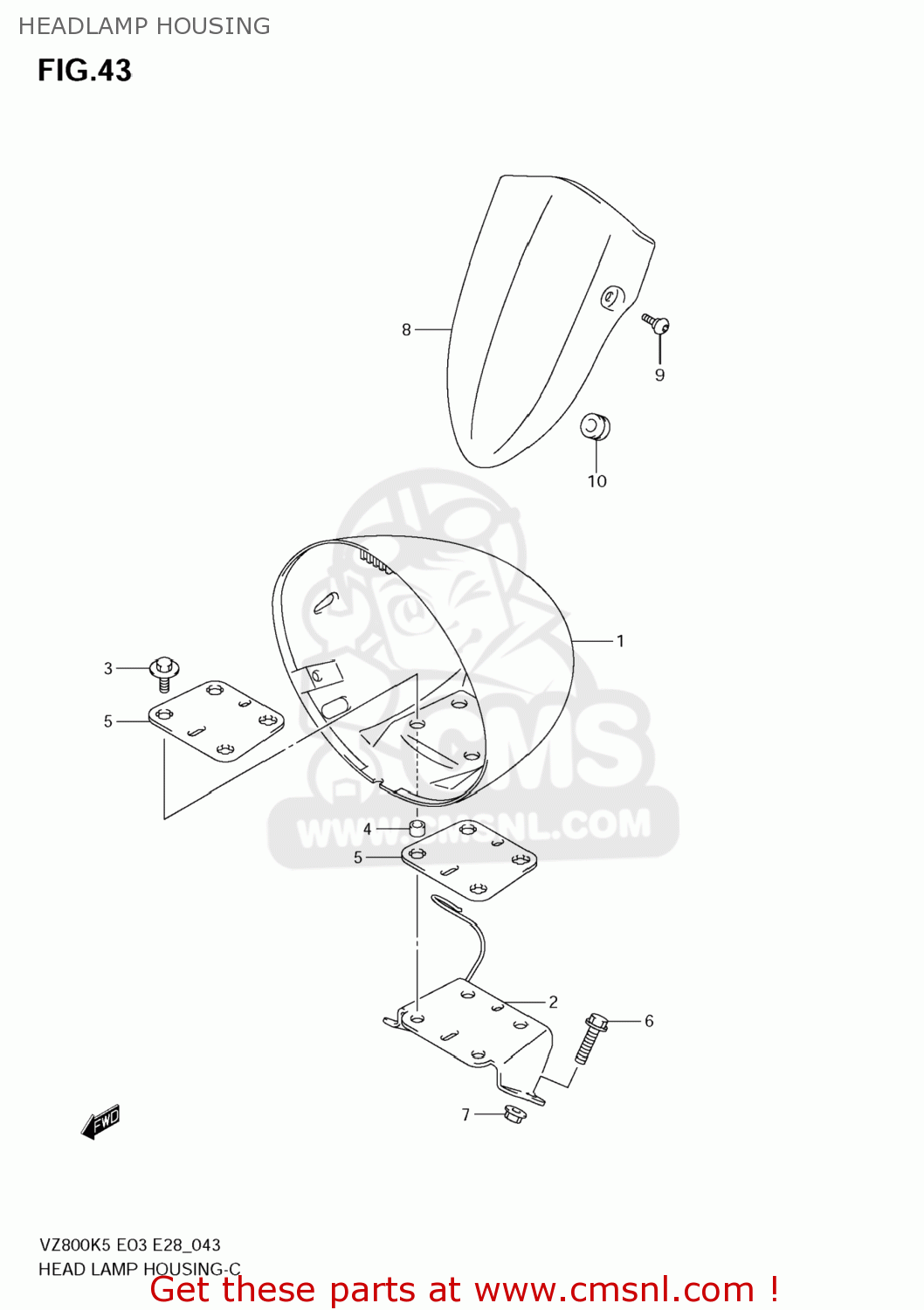

Headlamp housing diagram VZ800 BOULEVARD M50 2005 (K5) USA (E03) BOULEVARDM50 BOULEVARD-M

HEADLAMP HOUSING VZ800 BOULEVARD M50 2005 (K5) USA (E03) BOULEVARDM50 BOULEVARD-M
HEADLAMP HOUSING VZ800 BOULEVARD M50 2005 (K5) USA (E03) BOULEVARDM50 BOULEVARD-M
HEADLAMP HOUSING VZ800 BOULEVARD M50 2005 (K5) USA (E03) BOULEVARDM50 BOULEVARD-M
prices are in EUR
ref
part #
description
quantity
1
5180039G00
ref: 1
HOUSING HEADLA
€ 214.50
2
5185039G00
ref: 2
BRACKET,HEADLAMP HOUSING
€ 34.00
3
0911606115
ref: 3
BOLT(6X20)
0911606115
€ 3.00
4
0918006106
ref: 4
SPACER(6.8X10X7)
0918006106
€ 3.00
5
5181339G00
ref: 5
CUSHION,HEADLAMP HOUSING
€ 12.00
6
0910308413
ref: 6
BOLT(8X25)
€ 3.50
7
083193108B
ref: 7
NUT
083193108B
€ 3.00
8-1
5181239G00
ref: 8-1
51812-39G01
COVER,METER
€ 100.50
8-2
5181239G01
ref: 8-2
COVER,METER
5181239G01
€ 100.50
9
0913905071
ref: 9
SCREW(5X13)
0913905071
€ 5.00
10
0932006016
ref: 10
CUSHION
0932006016
€ 5.50
