SEAT (VZ800Z)

VZ800 BOULEVARD M50 2005 (K5) USA (E03) BOULEVARDM50 BOULEVARD-M

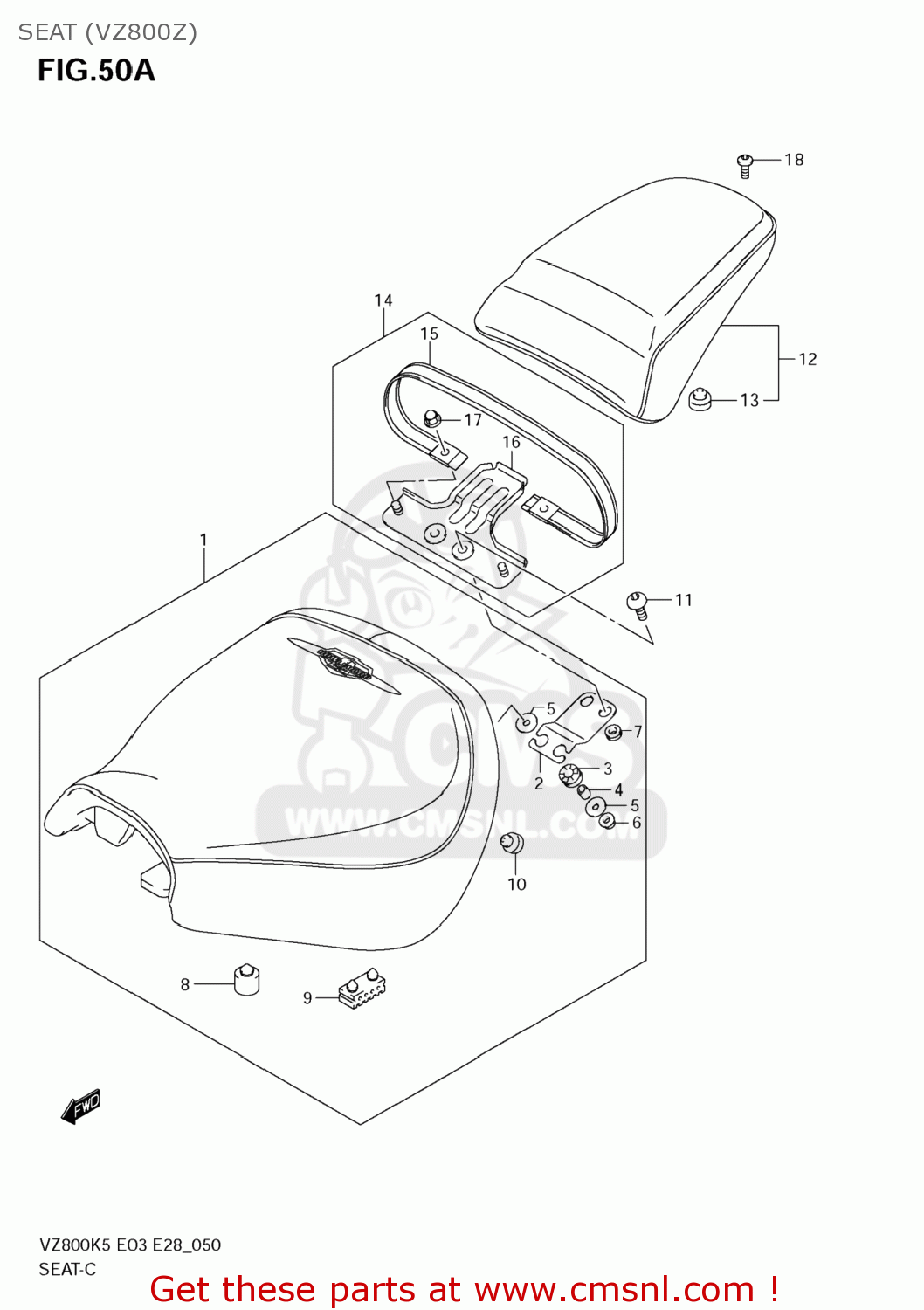

Seat (vz800z) diagram VZ800 BOULEVARD M50 2005 (K5) USA (E03) BOULEVARDM50 BOULEVARD-M

SEAT (VZ800Z) VZ800 BOULEVARD M50 2005 (K5) USA (E03) BOULEVARDM50 BOULEVARD-M

SEAT (VZ800Z) VZ800 BOULEVARD M50 2005 (K5) USA (E03) BOULEVARDM50 BOULEVARD-M

prices are in EUR

ref

part #

description

quantity

1

4510039G10HW9
ref: 1

SEAT ASSY

€ 0.00

2

4511539G00
ref: 2

PLATE,SEAT FR

€ 12.50

3

4514941F00
ref: 3

CUSHION

€ 6.50

4

0918007004
ref: 4

SPACER(6.5X10.5X12)

€ 2.50

5

0916006501
ref: 5

WASHER(6.5X24X1.6)

€ 2.00

6

083161006A
ref: 6

NUT

€ 2.50

7

0932010057
ref: 7

CUSHION

€ 3.50

8

0932110039
ref: 8

CUSHION

€ 4.00

9

4514931300
ref: 9

CUSHION,SEAT(40X20X15)

€ 2.00

10

0932110002
ref: 10

CUSHION(11.5X22X20)

€ 2.00

11

0910606064
ref: 11

BOLT(6X18)

€ 6.00

12

4530039G10HW9
ref: 12

SEAT ASSY,PILLION

€ 251.00

13

0932110002
ref: 13

CUSHION(11.5X22X20)

€ 2.00

14

4518039G00P21
ref: 14

BAND ASSY,SEAT

€ 45.00

15

4518139G00
ref: 15

BAND

€ 22.50

16

4518539G00
ref: 16

BRACKET,SEAT BAND

€ 27.50

17

083132006A
ref: 17

NUT

€ 2.00

18

0910608140
ref: 18

BOLT(8X16)

€ 6.00
