RADIATOR HOSE

VZ800 BOULEVARD M50 2005 (K5) USA (E03) BOULEVARDM50 BOULEVARD-M

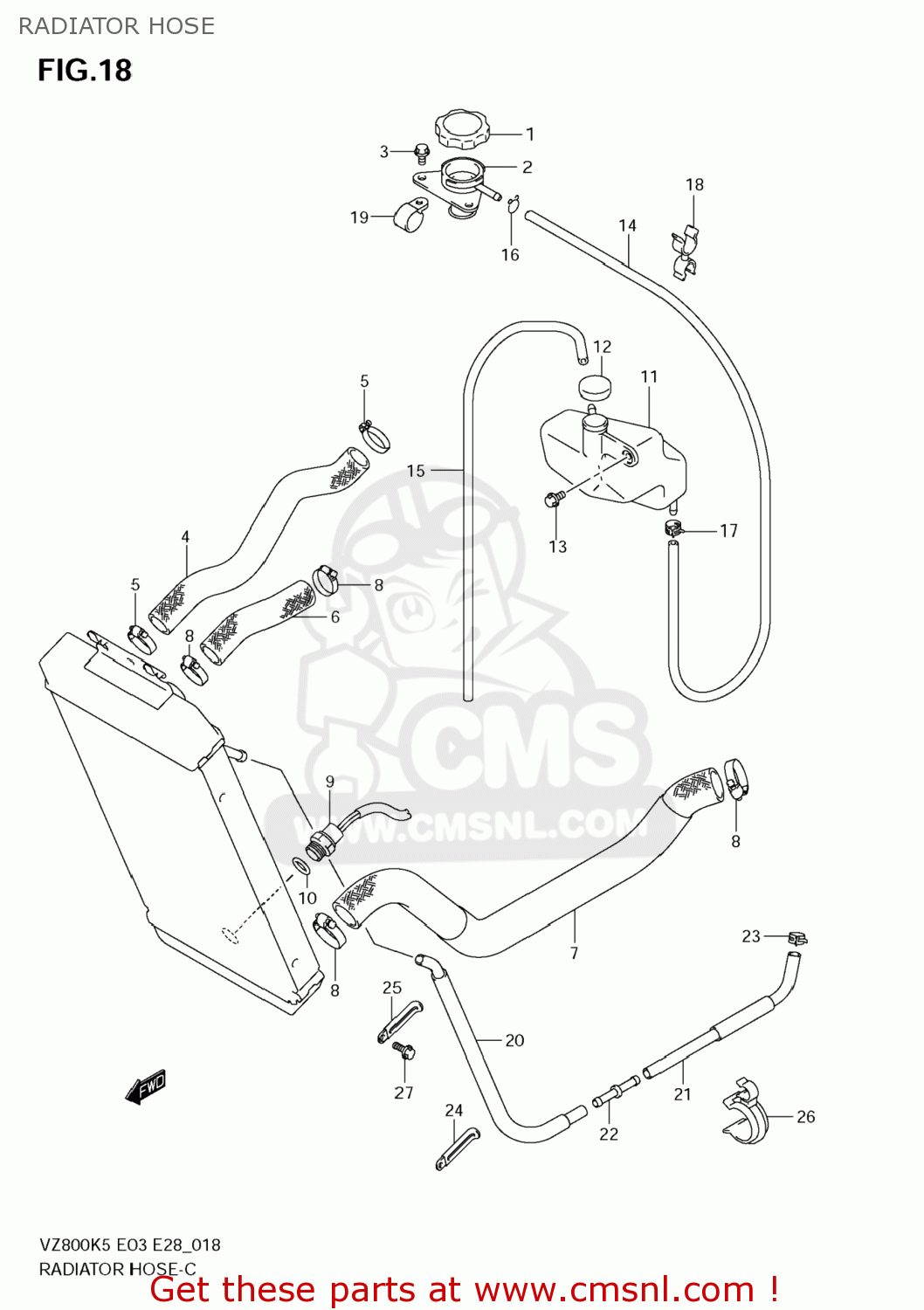

Radiator hose diagram VZ800 BOULEVARD M50 2005 (K5) USA (E03) BOULEVARDM50 BOULEVARD-M

RADIATOR HOSE VZ800 BOULEVARD M50 2005 (K5) USA (E03) BOULEVARDM50 BOULEVARD-M

RADIATOR HOSE VZ800 BOULEVARD M50 2005 (K5) USA (E03) BOULEVARDM50 BOULEVARD-M

prices are in EUR

ref

part #

description

quantity

1

1773012C30
ref: 1

CAP,RADIATOR

€ 33.50

2

1779124D00
ref: 2

CONDUCTION,RADIATOR

€ 37.50

3

015470616A
ref: 3

BOLT

€ 2.00

4

1785341F00
ref: 4

HOSE,CONDUCTION

€ 18.00

5

0940228513
ref: 5

CLAMP

€ 6.50

6

1785141F00
ref: 6

HOSE,RADIATOR INLET

€ 12.50

7

1785241F02
ref: 7

HOSE,RADIATOR OUTLET

€ 31.00

8

0940232512
ref: 8

CLAMP

€ 9.00

9

1768033E00
ref: 9

SWITCH,RADIATOR FAN

€ 49.50

10

1768950F00
ref: 10

O-RING

€ 2.50

11

1791141F11
ref: 11

TANK,RESERVOIR

€ 50.00

12

1793212C00
ref: 12

CAP,RESERVOIR TANK

€ 3.50

13

0911106085
ref: 13

BOLT(6X12)

€ 4.50

14-1

1798141F10
ref: 14-1
17900-41810

HOSE,RSVR INLE

€ 27.00

14-2

1798141F11
ref: 14-2

HOSE,RESERVOIR INLET

€ 20.50

15

1798119F00
ref: 15

HOSE,RESERVOIR TANK INLET

€ 9.50

16

0940108410
ref: 16

CLIP

€ 3.00

17

0940108411
ref: 17

CLIP

€ 3.00

18

0940800078
ref: 18

CLAMP

€ 3.00

19

0940308404
ref: 19

CLAMP

€ 3.50

20

1785541F00
ref: 20

HOSE,WATER BYPASS

€ 30.00

21

1785641F00
ref: 21

HOSE,WATER BYPASS

€ 17.00

22

0936708001
ref: 22

JOINT

€ 2.50

23

0940112405
ref: 23

CLIP

€ 3.00

24-1

0940408206
ref: 24-1

CLAMP(L:65 T:0.8)

€ 3.50

24-2

0940408207
ref: 24-2

CLAMP(L:80)

€ 3.00

24-3

0940408419
ref: 24-3

CLAMP(L:80)

€ 2.00

25

0940410205
ref: 25

CLAMP(L:82)

€ 2.50

26

0940800177
ref: 26

CLAMP

€ 4.50

27

0910310393
ref: 27

BOLT(10X16)

€ 2.50
