FRAME (MODEL K9)

VZ800 BOULEVARD M50 2005 (K5) USA (E03) BOULEVARDM50 BOULEVARD-M

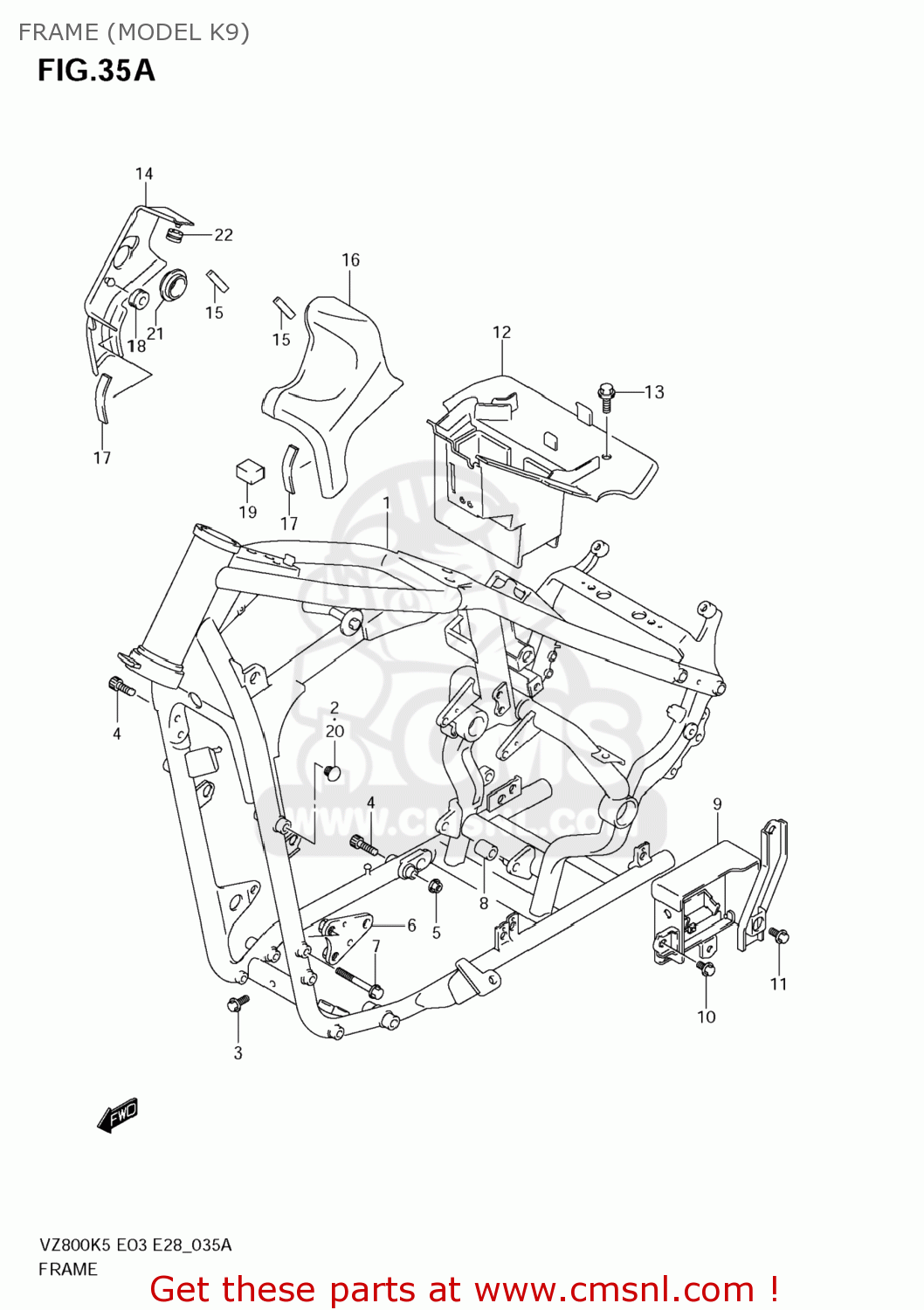

Frame (model k9) diagram VZ800 BOULEVARD M50 2005 (K5) USA (E03) BOULEVARDM50 BOULEVARD-M

FRAME (MODEL K9) VZ800 BOULEVARD M50 2005 (K5) USA (E03) BOULEVARDM50 BOULEVARD-M

FRAME (MODEL K9) VZ800 BOULEVARD M50 2005 (K5) USA (E03) BOULEVARDM50 BOULEVARD-M

prices are in EUR

ref

part #

description

quantity

1

4110041F50019
ref: 1

FRAME(BLACK)

€ 2,239.00

2

0925009001
ref: 2

CAP(OD:14)

€ 1.00

3

015500816B
ref: 3

BOLT

€ 3.00

4

071301035B
ref: 4

BOLT

€ 3.50

5

083193110B
ref: 5

NUT

€ 3.00

6

4192041F00
ref: 6

PLATE,ENGINE MOUNT NO.1,L

€ 16.50

7

0911208013
ref: 7

BOLT(8X65)

€ 3.50

8

4194141F00
ref: 8

SPACER,ENG MTG LR

€ 8.00

9

4154041F30
ref: 9

HOLDER,ELECTRIC PARTS

€ 42.00

10

015470612A
ref: 10

BOLT

€ 2.00

11

015500816A
ref: 11

BOLT

€ 2.50

12

4741041F01
ref: 12

HOLDER,ELECTRI

€ 57.00

13

0911306001
ref: 13

BOLT(6X16)

€ 3.00

14

4735041F10019
ref: 14

COVER,FRAME HEAD,R(BLACK)

€ 59.50

15

5314540A00
ref: 15

CUSHION,FR FENDER

€ 1.50

16

4736041F10019
ref: 16
47360-41F12-019

COVER COMP,FRA

€ 69.00

17

5314540A00
ref: 17

CUSHION,FR FENDER

€ 1.50

18

0932008018
ref: 18

CUSHION

€ 4.00

19

1779839G00
ref: 19

CUSHION,RADIATOR COVER INNER

€ 5.50

20

0925009001
ref: 20

CAP(OD:14)

€ 1.00

21

4735541F00
ref: 21
47355-41F01

CAP

€ 3.00

22

0932009501
ref: 22

CUSHION

€ 2.00
