WIRING HARNESS (MODEL K9)

VZ800 BOULEVARD M50 2005 (K5) USA (E03) BOULEVARDM50 BOULEVARD-M

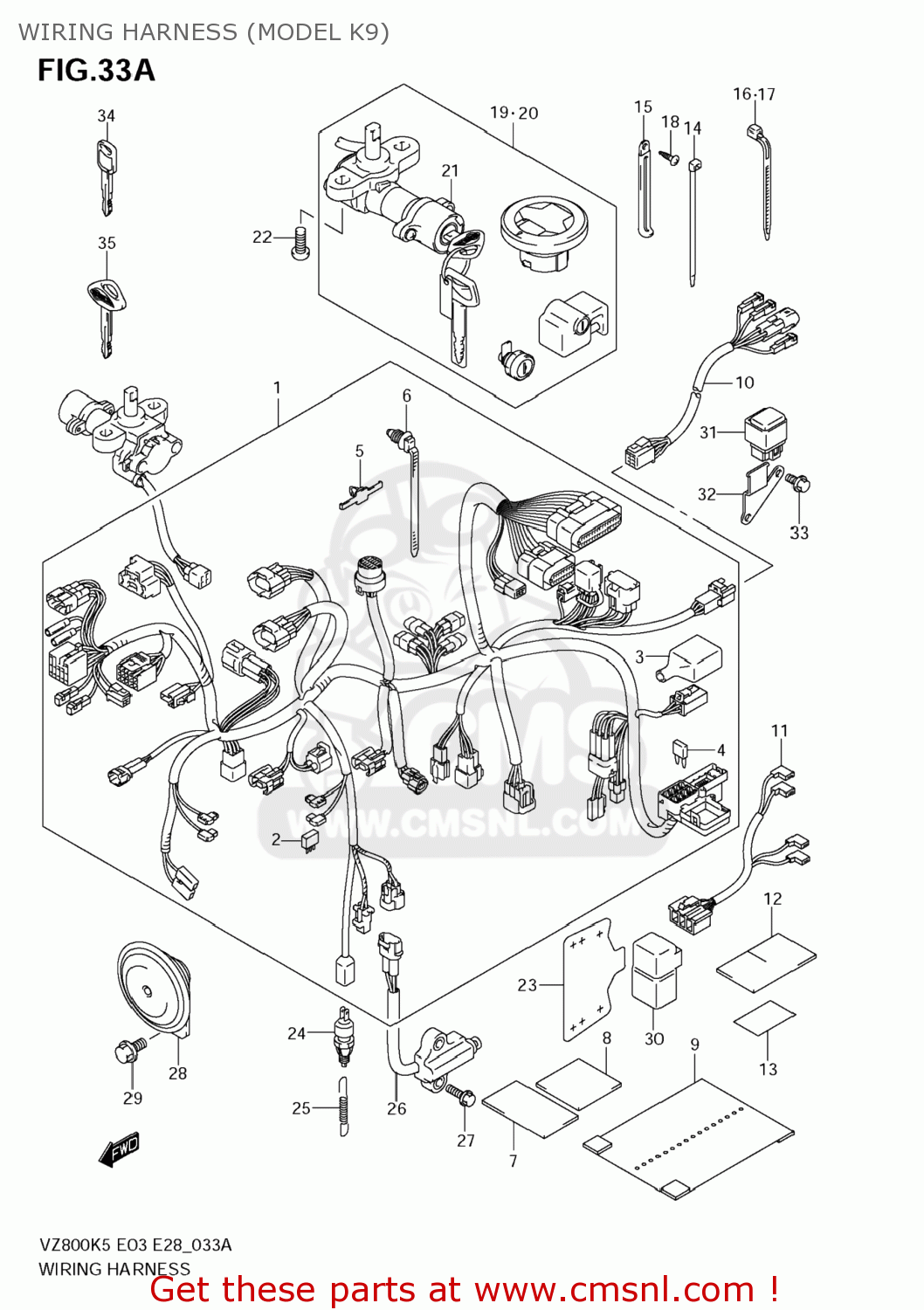

Wiring harness (model k9) diagram VZ800 BOULEVARD M50 2005 (K5) USA (E03) BOULEVARDM50 BOULEVARD-M

WIRING HARNESS (MODEL K9) VZ800 BOULEVARD M50 2005 (K5) USA (E03) BOULEVARDM50 BOULEVARD-M
WIRING HARNESS (MODEL K9) VZ800 BOULEVARD M50 2005 (K5) USA (E03) BOULEVARDM50 BOULEVARD-M
WIRING HARNESS (MODEL K9) VZ800 BOULEVARD M50 2005 (K5) USA (E03) BOULEVARDM50 BOULEVARD-M
prices are in EUR
ref
part #
description
quantity
1-1
3661039GB0
ref: 1-1
36610-39GB1
HARNESS,WIRING
€ 708.50
1-2
3661039GC0
ref: 1-2
HARNESS,WIRING
€ 633.50
2
3661138A00
ref: 2
DIODE(STANLEY DE8804)
3661138A00
€ 13.00
3
3671741F00
ref: 3
BOOT
€ 8.50
4-1
0948110501
ref: 4-1
FUSE(10A)
0948110501
€ 3.00
4-2
0948115501
ref: 4-2
FUSE(15A)
0948115501
€ 1.00
5
0940705410
ref: 5
CLAMP
€ 4.00
6
0940717403
ref: 6
CLAMP(L:154)
0940717403
€ 5.50
7
3661116G00
ref: 7
TAPE,WIRING HARNESS(28X50X0.13
3661116G00
€ 2.00
8
3661141F00
ref: 8
PROTECTOR,WIRING HARNESS
€ 6.00
9
3661815D20
ref: 9
COVER,WIRING HARNESS
3661815D20
€ 12.00
10
3685839G00
ref: 10
36858-39G01
WIRE,REAR COMB
€ 82.50
11
3685439G00
ref: 11
WIRE,IGNITION COIL LEAD
€ 33.50
12
3692033C00
ref: 12
PROTECTOR,HARNESS(30X50X3)
€ 2.00
13
9447417H00
ref: 13
PROTECTOR,COWLING UNDER
€ 2.00
14
0940714407
ref: 14
CLAMP(L:145)
0940714407
€ 4.00
15-1
0940406433
ref: 15-1
CLAMP(L:80)
0940406433
€ 3.00
15-2
0940406435
ref: 15-2
CLAMP(L:135)
0940406435
€ 2.50
16
0940718402
ref: 16
CLAMP(L:165)
0940718402
€ 2.50
17
0940719401
ref: 17
CLAMP(L:190)
€ 2.00
18
035410410B
ref: 18
SCREW
035410410B
€ 1.50
19
3710141890
ref: 19
LOCK SET
€ 297.00
20
3710241810
ref: 20
LOCK SET
€ 0.00
21
3710041F70
ref: 21
LOCK ASSY,STEERING
€ 168.50
22
0913908016
ref: 22
BOLT(8X20)
0913908016
€ 3.50
23
3718741F10
ref: 23
PROTECTOR,IGNITION SWITCH
€ 12.00
24
3774024A00
ref: 24
SWITCH ASSY,STOP LAMP
3774024A00
€ 20.50
25
0944306073
ref: 25
SPRING
0944306073
€ 3.00
26
3784041F00
ref: 26
SWITCH ASSY,SIDE STAND
3784041F00
€ 65.00
27
0910306279
ref: 27
BOLT(6X20)
0910306279
€ 3.00
28
3850041F30
ref: 28
HORN ASSY
€ 54.50
29
015500816B
ref: 29
BOLT
015500816B
€ 3.00
30
3874024X50
ref: 30
RELAY ASSY
3874024X50
€ 37.50
31
3874024A00
ref: 31
RELAY ASSY
€ 39.00
32
3874139G00
ref: 32
BRACKET,HEADLAMP RELAY
€ 6.00
33
015500612B
ref: 33
BOLT
015500612B
€ 2.50
34
3714641F10
ref: 34
KEY,BLANK
3714641F10
€ 26.00
35
3714641FA0
ref: 35
KEY,BLANK(BOULEVARD)
€ 64.50
