FOOTREST

VZ800 BOULEVARD M50 2005 (K5) USA (E03) BOULEVARDM50 BOULEVARD-M

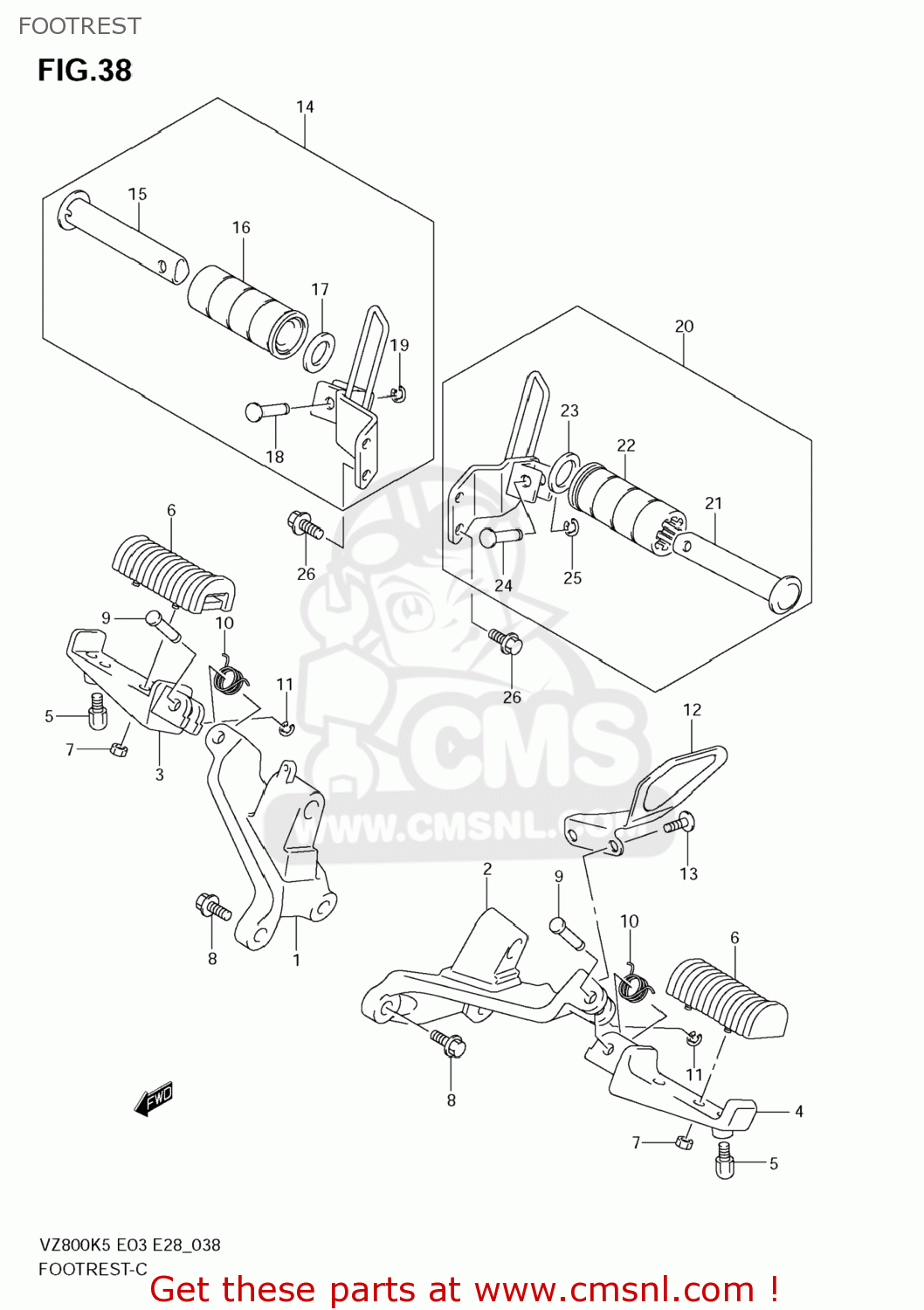

Footrest diagram VZ800 BOULEVARD M50 2005 (K5) USA (E03) BOULEVARDM50 BOULEVARD-M

FOOTREST VZ800 BOULEVARD M50 2005 (K5) USA (E03) BOULEVARDM50 BOULEVARD-M

FOOTREST VZ800 BOULEVARD M50 2005 (K5) USA (E03) BOULEVARDM50 BOULEVARD-M

prices are in EUR

ref

part #

description

quantity

1

4351141F00
ref: 1

BRACKET,FR FOOTREST,R

€ 100.50

2

4352141F01
ref: 2

BRACKET,FR FOOTREST,L

€ 110.50

3

4353141F00
ref: 3
43531-41F01

BAR,FRONT FOOT

€ 35.50

4

4354141F00
ref: 4
43541-41F01

BAR,FRONT FOOT

€ 35.50

5

4357607D01
ref: 5

BOLT,BANK SENSOR

€ 8.00

6

4355041F00
ref: 6

RUBBER,FR FOOTREST

€ 14.50

7

083192106B
ref: 7

NUT

€ 2.50

8

015801030B
ref: 8

BOLT

€ 3.50

9

0920808010
ref: 9

PIN(8X33.2)

€ 3.00

10

0944818022
ref: 10

SPRING

€ 3.50

11

083321106B
ref: 11

E RING

€ 2.00

12

4357139G00
ref: 12

GUARD,FR FOOTREST

€ 60.50

13

0913906108
ref: 13

SCREW(6X12)

€ 3.00

14-1

4360039G00
ref: 14-1

FOOTREST ASSY,PILLION,R

€ 85.00

14-2

4360041F50
ref: 14-2

FOOTREST ASSY,PILLION,R

€ 54.50

15

4361039G00
ref: 15

BAR,PILLION FOOTREST

€ 13.00

16

4361239G00
ref: 16

RUBBER,PILLION FOOTREST

€ 5.00

17

0916019024
ref: 17

WASHER(19.5X32X2)

€ 2.00

18

4363625D00
ref: 18

PIN,PILLION FOOTREST

€ 5.50

19

083321104B
ref: 19

E RING

€ 2.00

20-1

4370039G00
ref: 20-1

FOOTREST ASSY,PILLION,L

€ 85.00

20-2

4370041F50
ref: 20-2

FOOTREST ASSY,PILLION,L

€ 54.50

21

4361039G00
ref: 21

BAR,PILLION FOOTREST

€ 13.00

22

4361239G00
ref: 22

RUBBER,PILLION FOOTREST

€ 5.00

23

0916019024
ref: 23

WASHER(19.5X32X2)

€ 2.00

24

4363625D00
ref: 24

PIN,PILLION FOOTREST

€ 5.50

25

083321104B
ref: 25

E RING

€ 2.00

26

0910308412
ref: 26

BOLT(8X16)

€ 2.50
