STEERING STEM

VZ800 BOULEVARD M50 2005 (K5) USA (E03) BOULEVARDM50 BOULEVARD-M

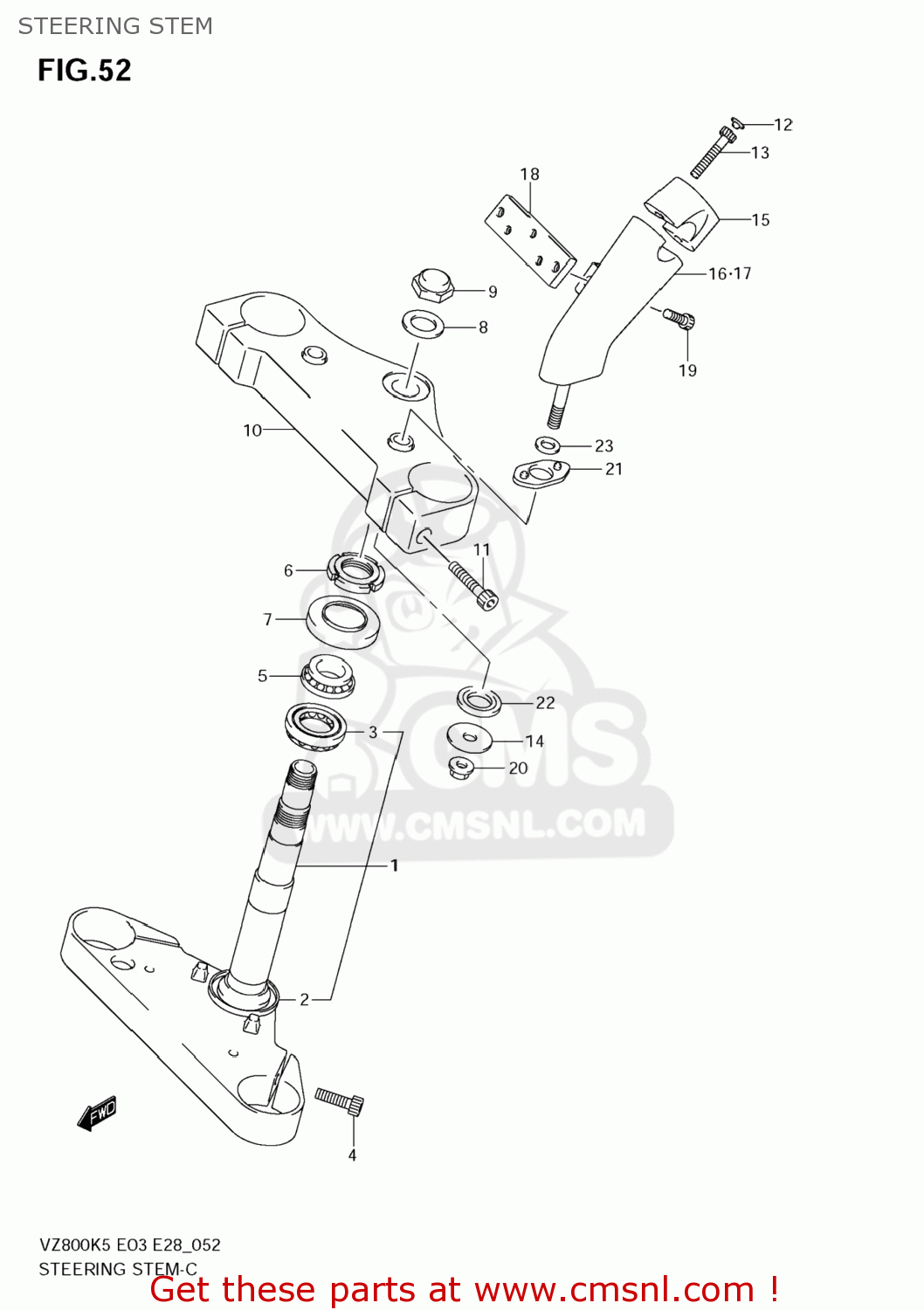

Steering stem diagram VZ800 BOULEVARD M50 2005 (K5) USA (E03) BOULEVARDM50 BOULEVARD-M

STEERING STEM VZ800 BOULEVARD M50 2005 (K5) USA (E03) BOULEVARDM50 BOULEVARD-M

STEERING STEM VZ800 BOULEVARD M50 2005 (K5) USA (E03) BOULEVARDM50 BOULEVARD-M

prices are in EUR

ref

part #

description

quantity

1

5141039G00
ref: 1

BRACKET,UNDER

€ 834.50

2

5164412C00
ref: 2

SEAL,STEERING LWR

€ 5.50

3

0926730010
ref: 3

BEARING(30X55X17)

€ 46.50

4

5145139G00
ref: 4

BOLT

€ 7.50

5

0926725009
ref: 5

BEARING(25X47X15)

€ 40.00

6

5163128000
ref: 6

NUT,STEERING STEM(25X44X10)

€ 12.50

7

5164340502
ref: 7

DUST SEAL,STEERING UPR

€ 8.00

8

5135610D03
ref: 8

WASHER(22.5X35.9X1.6)

€ 3.00

9

5135324B00
ref: 9

NUT,CAP

€ 21.50

10

5131139G00
ref: 10

BRACKET,UPR

€ 502.00

11

5138148E10
ref: 11

BOLT,LWR

€ 6.00

12

0925006011
ref: 12

CAP(OD:11)

€ 2.50

13

5145132E40
ref: 13

BOLT,BRACKET LOW

€ 4.00

14

5135516G00
ref: 14

WASHER

€ 3.50

15

5621139G00
ref: 15

HOLDER,HANDLE

€ 67.50

16

5622439G00
ref: 16

HOLDER,HANDLE,R

€ 215.00

17

5622539G00
ref: 17

HOLDER,HANDLE,L

€ 215.00

18

5622639G00
ref: 18

BRIDGE

€ 34.00

19

071300820B
ref: 19

BOLT

€ 3.00

20

0831931107
ref: 20

NUT

€ 3.00

21

5624539G00
ref: 21

RUBBER,HANDLE HOLDER

€ 5.00

22

5624516G00
ref: 22

RUBBER,HANDLE HOLDER

€ 4.00

23

0832201107
ref: 23

WASHER

€ 2.50
