Buy Suzuki VZ Parts Online


FRONT FENDER

VZ800 BOULEVARD M50 2005 (K5) USA (E03) BOULEVARDM50 BOULEVARD-M

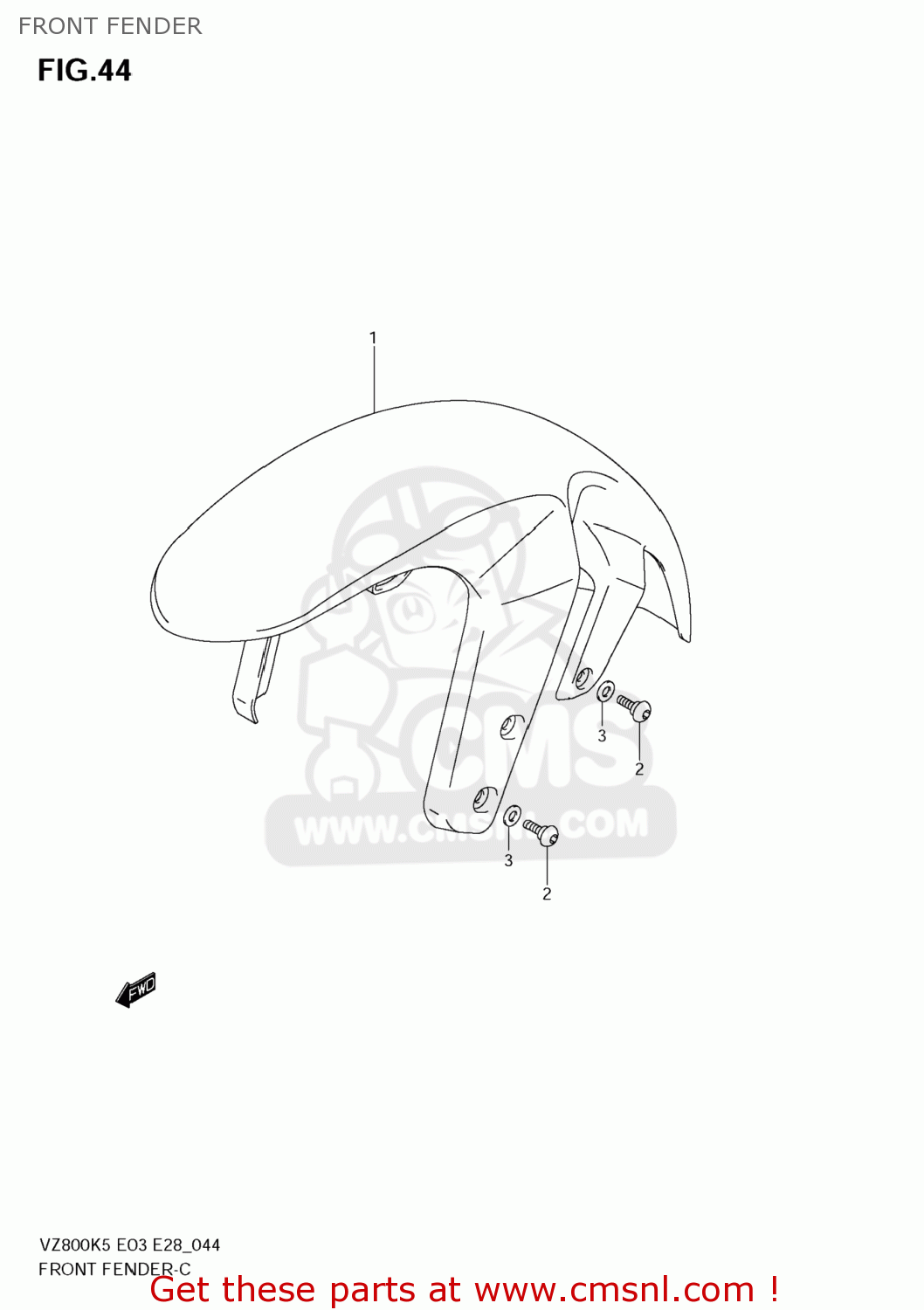

Front fender diagram VZ800 BOULEVARD M50 2005 (K5) USA (E03) BOULEVARDM50 BOULEVARD-M

FRONT FENDER VZ800 BOULEVARD M50 2005 (K5) USA (E03) BOULEVARDM50 BOULEVARD-M
FRONT FENDER VZ800 BOULEVARD M50 2005 (K5) USA (E03) BOULEVARDM50 BOULEVARD-M
FRONT FENDER VZ800 BOULEVARD M50 2005 (K5) USA (E03) BOULEVARDM50 BOULEVARD-M
prices are in EUR
ref
part #
description
quantity
1-1
5311039G00YAY
ref: 1-1
FENDER,FR
5311039G00YAY
€ 217.50
1-2
5311039G00YU7
ref: 1-2
FENDER,FR
€ 91.00
1-3
5311039G00YBA
ref: 1-3
FENDER,FR
€ 152.50
1-4
5311039G00YC2
ref: 1-4
FENDER,FR
€ 91.00
1-5
5311039G00YHG
ref: 1-5
FENDER,FR
€ 217.50
1-6
5311039G00YLD
ref: 1-6
FENDER,FR
€ 217.50
1-7
5311039G00YHG
ref: 1-7
FENDER,FR
€ 217.50
1-8
5311039G00YAY
ref: 1-8
FENDER,FR
5311039G00YAY
€ 217.50
2
0913906149
ref: 2
SCREW(6X16)
0913906149
€ 4.00
3
5312139G10
ref: 3
WASHER,FR FENDER
5312139G10
€ 4.00
