AIR FLOW METER

XN85 1983 (D) (1 2 4 6 15 16 17 18 21 22 24 25 26 27 30 34 39 48

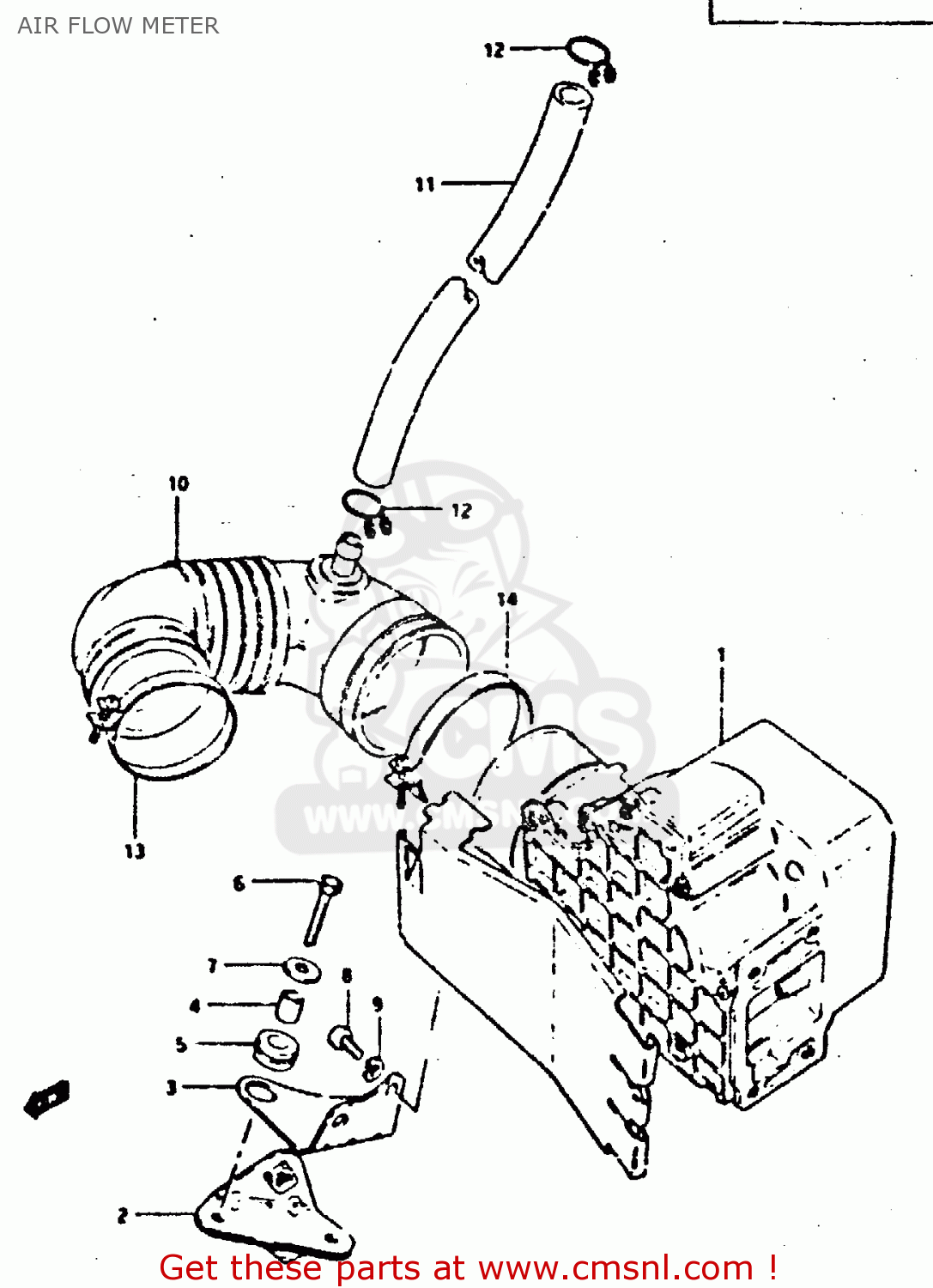

Air flow meter diagram XN85 1983 (D) (1 2 4 6 15 16 17 18 21 22 24 25 26 27 30 34 39 48

prices are in EUR

ref

part #

description

quantity

1560009300
ref: 1

METER ASSEMBLY,AIR FLOW

€ 1,106.50

1564009300
ref: 2

BRACKET (1)

€ 9.00

1564609300
ref: 3

BRACKET (2)

€ 3.50

0918006030
ref: 4

SPACER (6.8X10X10)

€ 2.00

0932010015
ref: 5

CUSHION

€ 2.50

0110706258
ref: 6

BOLT

€ 2.00

0916006007
ref: 7

WASHER

€ 2.00

0211206128
ref: 8

SCREW 6X12

€ 2.00

0832121068
ref: 9

LOCK WASHER

€ 2.50

1565009300
ref: 10

HOSE ASSY, AIR FLOW METER

€ 75.50

1365109300
ref: 11

HOSE, BREATHER (L:420)

€ 0.00

1382837300
ref: 12

CLIP

€ 3.00

0940254303
ref: 13

CLAMP

€ 4.00

0940268306
ref: 14

CLAMP

€ 4.00
