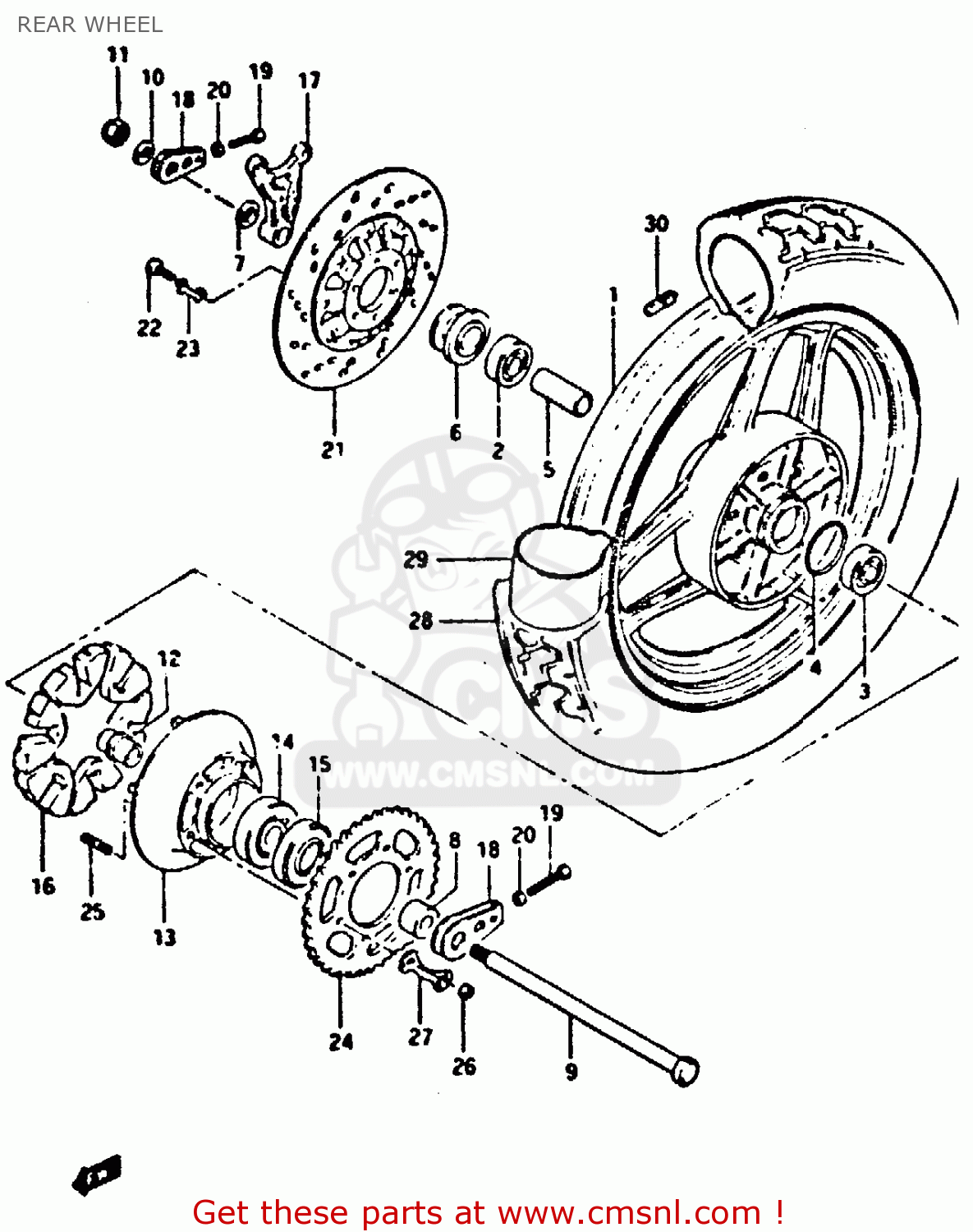

REAR WHEEL

ref

part #

description

quantity

1

6411109301291
ref: 1

WHEEL,REAR

€ 379.00

2

0813362047
ref: 2

BEARING WHEEL REAR(20X47X14)

€ 22.50

3

0815362047
ref: 3

BEARING, LH

€ 21.00

4

0928058003
ref: 4

O RING(D:2.4,ID:57.6)

€ 3.00

5

0918020087
ref: 5

SPACER

€ 0.00

6

6474045001
ref: 6

SPACER,REAR AXLE

€ 15.00

7

0918020086
ref: 7

SPACER

€ 0.00

8

6475109300
ref: 8

SPACER,REAR AXLE,LEFT

€ 0.00

9

6471109300
ref: 9

AXLE,REAR

€ 36.00

10

0916019008
ref: 10

WASHER(19X34X4)

€ 3.00

11

0915918006
ref: 11

NUT

€ 5.00

12

6473309300
ref: 12

RETAINER,REAR SPROCKET

€ 10.50

13

6461109302
ref: 13

DRUM,REAR SPROCKET MOUNT

€ 115.00

14

0926232004
ref: 14

BALL BEARING 32X75X20

€ 60.50

15

0928540001
ref: 15

OIL SEAL

€ 5.50

16

6465109300
ref: 16

CUSHION,REAR DRUM

€ 7.00

17

6972147011
ref: 17

BRACKET,RR,CALIPER

€ 29.00

18

6141009300
ref: 18

ADJUSTER,CHAIN

€ 8.00

19

0910408018
ref: 19

BOLT 8X50

€ 3.00

20

0831012088
ref: 20

NUT

€ 2.00

21

5921018450
ref: 21

DISC,RR BRAKE

€ 446.00

22

0910008207
ref: 22

BOLT

€ 0.00

23

0916908029
ref: 23

WASHER

€ 3.50

FIG. 67 (I-7)

REARWHEEL
ref: FIG. 67 (I-7)

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

24

6451109310
ref: 24

SPROCKET, REAR (NT:38)

€ 73.00

25

0910510001
ref: 25

BOLT(10X35.5)

€ 3.50

26

0914010026
ref: 26

NUT

€ 2.00

27

0916910015
ref: 27

WASHER

€ 1.50

28

6510009395
ref: 28
MICHELIN

TIRE

€ 0.00

29

6520009395
ref: 29
MICHELIN

TUBE ASSEMBLY,WHEEL,INNER

€ 0.00

30-1

5541145100
ref: 30-1

BALANCER,WHEEL

€ 7.00

30-2

5541245100
ref: 30-2

BALANCER,WHEEL

€ 4.00

30-3

5541345100
ref: 30-3

BALANCER,WHEEL

€ 6.50

all assemblies
