Buy Suzuki XN Parts Online


REAR FENDER

XN85 1983 (D) (1 2 4 6 15 16 17 18 21 22 24 25 26 27 30 34 39 48

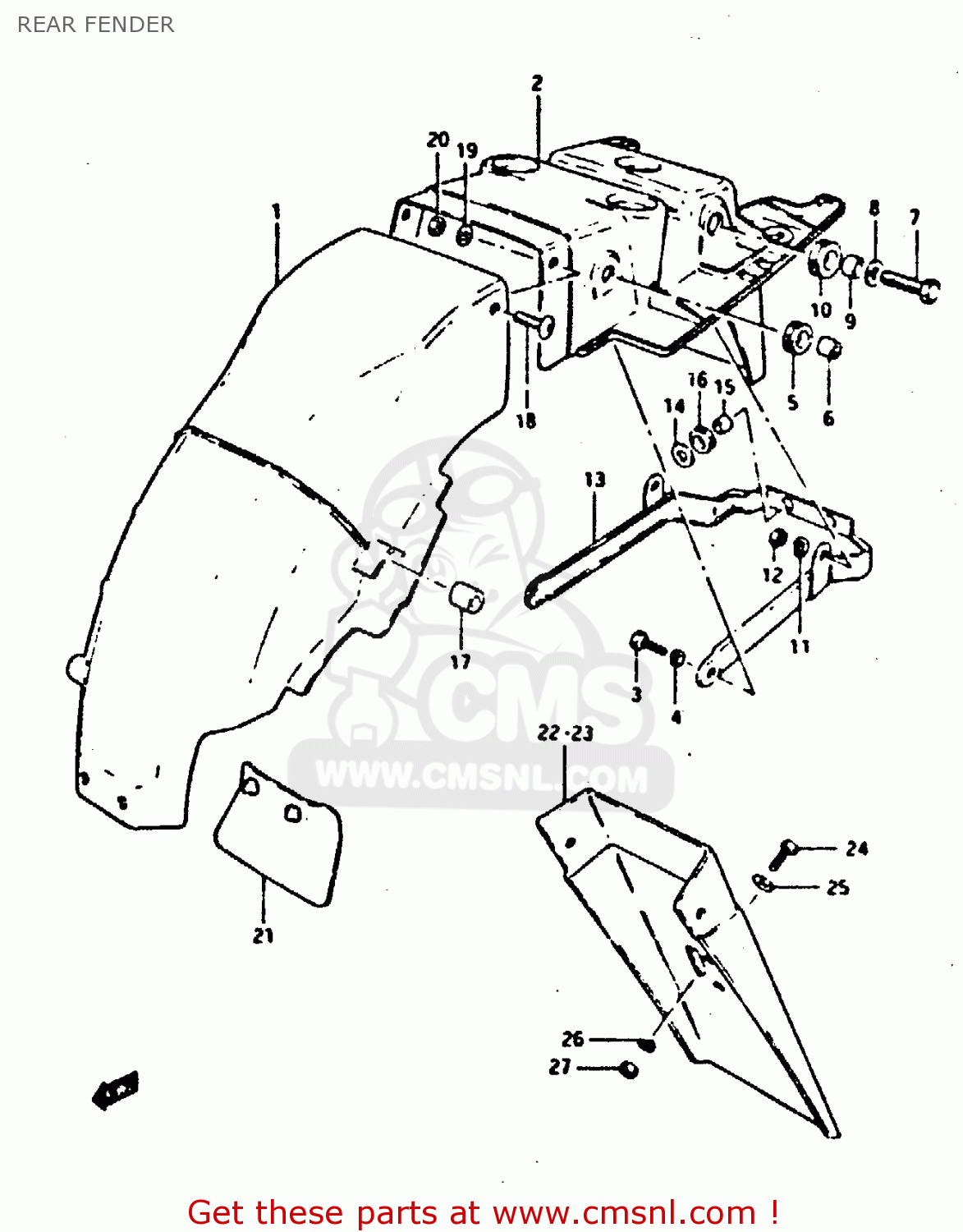

Rear fender diagram XN85 1983 (D) (1 2 4 6 15 16 17 18 21 22 24 25 26 27 30 34 39 48

REAR FENDER XN85 1983 (D) (1 2 4 6 15 16 17 18 21 22 24 25 26 27 30 34 39 48
REAR FENDER XN85 1983 (D) (1 2 4 6 15 16 17 18 21 22 24 25 26 27 30 34 39 48
REAR FENDER XN85 1983 (D) (1 2 4 6 15 16 17 18 21 22 24 25 26 27 30 34 39 48
prices are in EUR
ref
part #
description
quantity
1
6311209300
ref: 1
FENDER,REAR
€ 0.00
2-1
6311309300
ref: 2-1
BODY,REAR FENDER,REAR
€ 102.00
2-2
6311309310
ref: 2-2
E15, E16, E17, E18,
BODY, REAR FENDER REAR
€ 102.00
3
0110706208
ref: 3
BOLT
0110706208
€ 2.00
4
0832121068
ref: 4
LOCK WASHER
0832121068
€ 2.50
5
0932008007
ref: 5
CUSHION
0932008007
€ 4.00
6
0918006038
ref: 6
SPACER(6.1X9X7.5)
0918006038
€ 2.00
7
0110708308
ref: 7
BOLT (8X30)
0110708308
€ 2.50
8
0832211088
ref: 8
WASHER
0832211088
€ 2.00
9
0918008021
ref: 9
SPACER (8.2X12X7.5)
0918008021
€ 3.00
10
0932012011
ref: 10
CUSHION
0932012011
€ 3.00
11
0832121088
ref: 11
LOCK WASHER
0832121088
€ 2.00
12
0831012088
ref: 12
NUT
0831012088
€ 2.00
13
6312009300
ref: 13
REINFORCEMENT,REAR FENDER
€ 22.50
14
0916006012
ref: 14
WASHER(6,5X22X1.6)
€ 2.00
15
0918006011
ref: 15
SPACER (6.1X9X9)
0918006011
€ 2.00
16
0932008013
ref: 16
CUSHION
0932008013
€ 4.00
17
0932905003
ref: 17
CUSHION
0932905003
€ 4.50
18
0214205128
ref: 18
SCREW
0214205128
€ 1.50
19
0916005017
ref: 19
WASHER (5.5X16X1.2)
0916005017
€ 2.50
20
0831011058
ref: 20
NUT
0831011058
€ 2.50
21
6341131900
ref: 21
GUIDE,RR FENDER MUD
6341131900
€ 8.00
22
6331109300
ref: 22
E15, E16, E18
EXTENSION, REAR FENDER
€ 0.00
23
6331109310
ref: 23
E17, E22, E25
EXTENSION, REAR FENDER
€ 0.00
24
0912506039
ref: 24
E15, E16, E17, E18,
SCREW
€ 0.00
25
0916006028
ref: 25
E15, E16, E17, E18,
WASHER(6.5X18X1)
0916006028
€ 1.50
26
0832121068
ref: 26
E15, E16, E17, E18,
LOCK WASHER
0832121068
€ 2.50
27
0831022068
ref: 27
E15, E16, E17, E18,
NUT 6MM
€ 2.50
