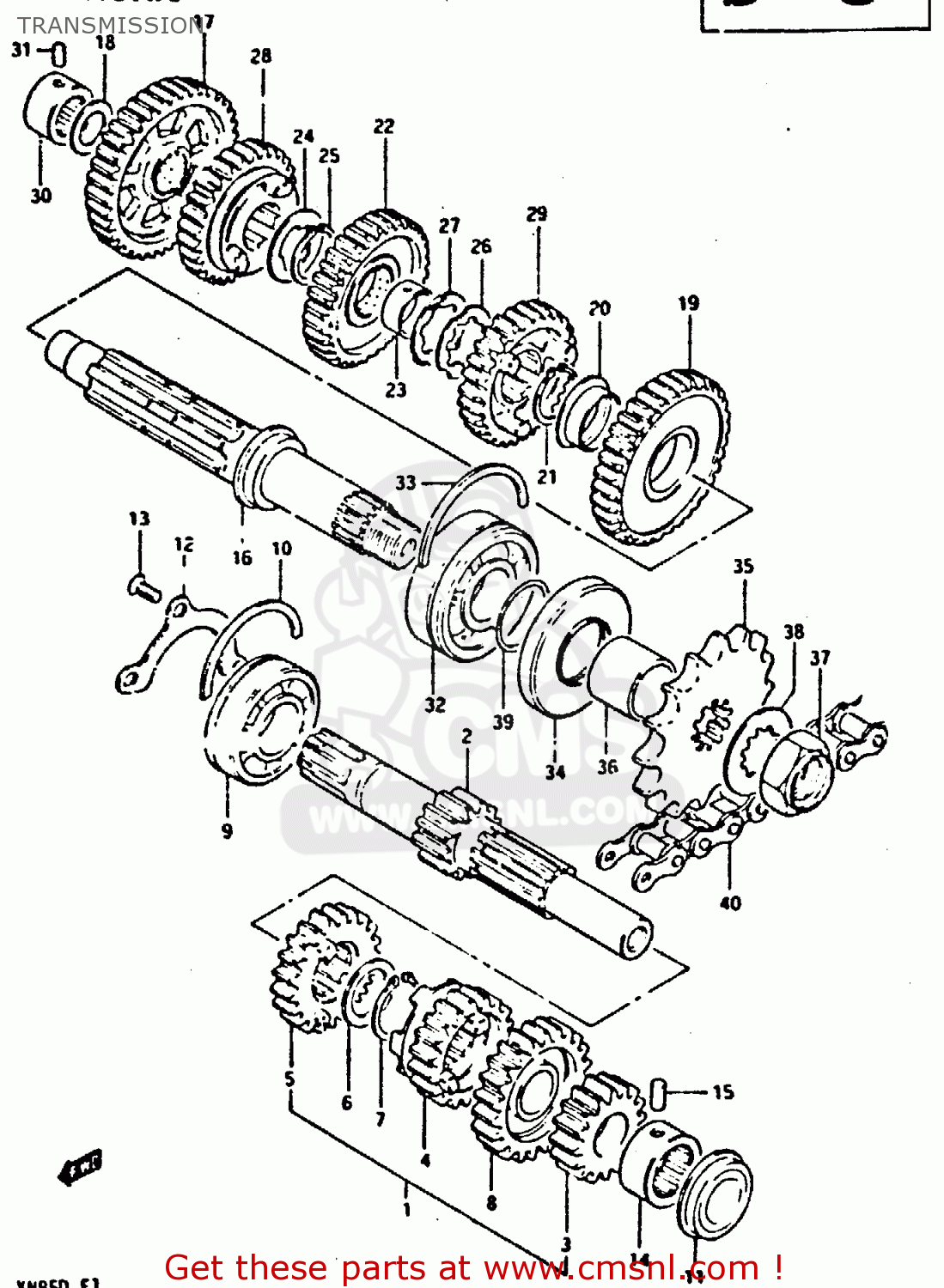

TRANSMISSION

ref

part #

description

quantity

1

2412009302
ref: 1

SHAFT,COUNTER

€ 419.50

2

2412109302
ref: 2

SHAFT,COUNTER

€ 104.00

3

2422109301
ref: 3

GEAR,SECOND DRIVE

€ 0.00

4

2423109304
ref: 4

GEAR,THIRD DRIVE

€ 92.50

5

2424009302
ref: 5

GEAR,FOURTH DRIVE

€ 75.50

6

0916725012
ref: 6

WASHER,LOCK

€ 3.50

7

0938025010
ref: 7

CIRCLIP

€ 3.00

8

2425009304
ref: 8

GEAR,FIFTH DRIVE

€ 75.50

9

0926225051
ref: 9

BEARING(25X62X17)

€ 59.50

10

0939062006
ref: 10

C-RING

€ 5.00

11

0924134003
ref: 11

PLUG

€ 8.50

12

2474145000
ref: 12

RETAINER,CNTR SHAFT BEARING

€ 8.00

13

0212206168
ref: 13

SCREW

€ 2.00

14

0926320044
ref: 14

BEARING

€ 37.50

15

0422107129
ref: 15

PIN

€ 1.50

16

2413109301
ref: 16

SHAFT,DRIVE

€ 104.00

17

2431009301
ref: 17

GEAR,FIRST DRIVEN

€ 102.00

18

0821120321
ref: 18

WASHER,THRUST

€ 3.00

19

2432109301
ref: 19

GEAR,SECOND DRIVEN

€ 112.00

20

0930128001
ref: 20

BUSH(28X32X2)

€ 19.50

21

0833111289
ref: 21

CIRCLIP

€ 2.50

22

2433109302
ref: 22

GEAR,THIRD DRIVEN

€ 102.00

23

2433249000
ref: 23

BUSH,3RD DRIVEN GEAR

€ 13.50

24

0916728001
ref: 24

WASHER,LOCK

€ 3.00

25

0833111289
ref: 25

CIRCLIP

€ 2.50

26

0916728002
ref: 26

WASHER,LOCK

€ 3.00

27

0916928001
ref: 27

WASHER

€ 3.00

28

2434109300
ref: 28

GEAR,FOURTH DRIVEN

€ 112.00

29

2435109302
ref: 29

GEAR,FIFTH DRIVEN

€ 112.00

30

0926320040
ref: 30

BEARING(20X34X20)

€ 42.50

31

0422107129
ref: 31

PIN

€ 1.50

32

0926225065
ref: 32

BALL BEARING 25X62X17

€ 59.50

33

0939062006
ref: 33

C-RING

€ 5.00

34

0928332012
ref: 34

SEAL,OIL(32X62X7)

€ 19.00

35

2751144000
ref: 35

SPROCKET,ENGINE(NT:16)

€ 49.00

36

0918025060
ref: 36

SPACER

€ 0.00

37

0915920001
ref: 37

NUT

€ 12.00

38

0916725014
ref: 38

WASHER

€ 2.50

39

0928025001
ref: 39

O RING(D:1,ID:24.5)

€ 2.50

40

2760009330
ref: 40

CHAIN ASSEMBLY,DRIVE

€ 0.00
