FRONT FENDER

XN85 1983 (D) (1 2 4 6 15 16 17 18 21 22 24 25 26 27 30 34 39 48

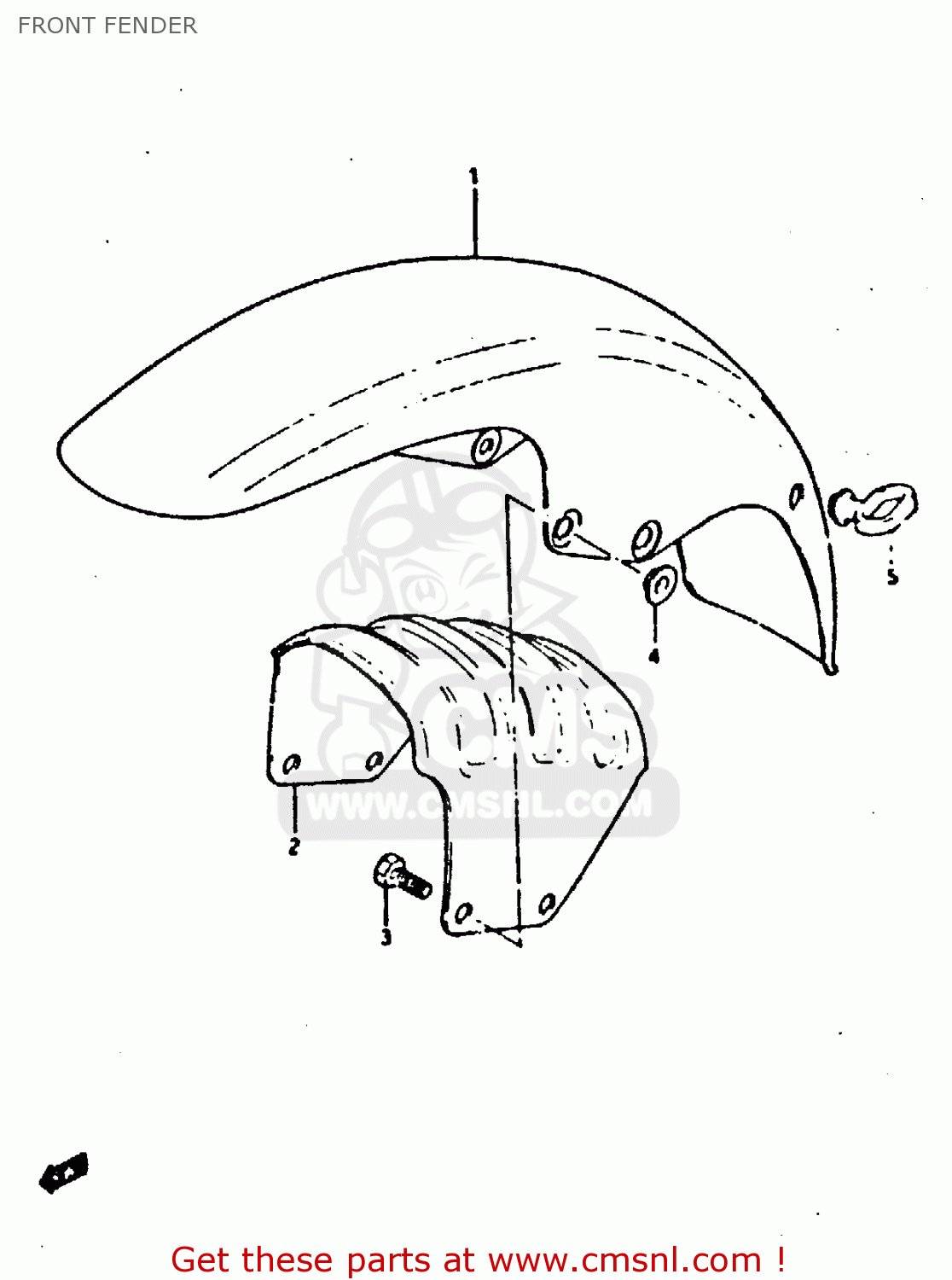

Front fender diagram XN85 1983 (D) (1 2 4 6 15 16 17 18 21 22 24 25 26 27 30 34 39 48

FRONT FENDER XN85 1983 (D) (1 2 4 6 15 16 17 18 21 22 24 25 26 27 30 34 39 48

FRONT FENDER XN85 1983 (D) (1 2 4 6 15 16 17 18 21 22 24 25 26 27 30 34 39 48

prices are in EUR

ref

part #

description

quantity

1

531110930015K
ref: 1

FENDER,FRONT

€ 144.00

2

5311409300
ref: 2

BRACE,FRONT FENDER

€ 19.00

3

0910008135
ref: 3

BOLT 8X16

€ 3.00

4

0916908032
ref: 4

WASHER

€ 11.50

5

5862121203A
ref: 5

GUIDE,CABLE

€ 7.50
