BATTERY

XN85 1983 (D) (1 2 4 6 15 16 17 18 21 22 24 25 26 27 30 34 39 48

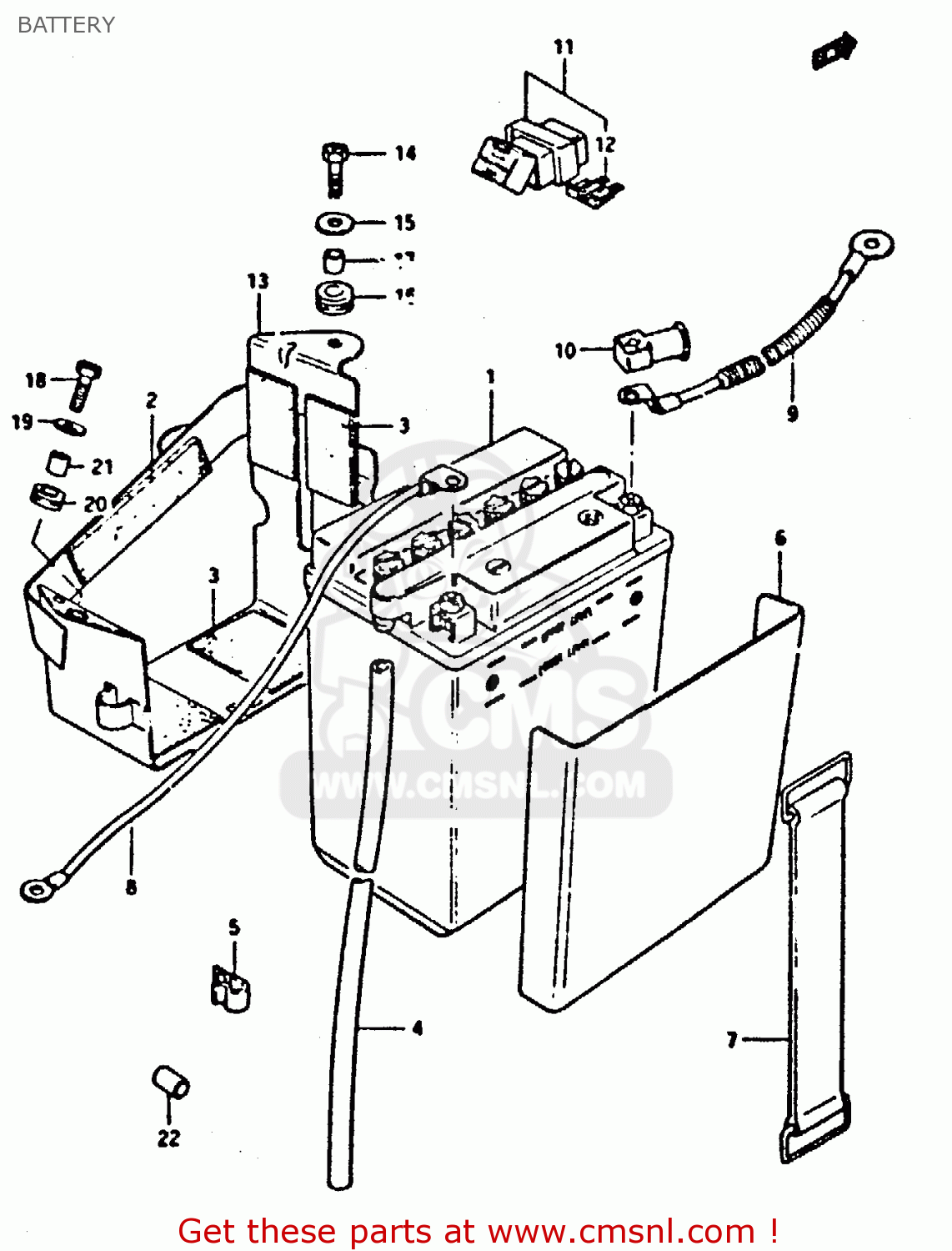

Battery diagram XN85 1983 (D) (1 2 4 6 15 16 17 18 21 22 24 25 26 27 30 34 39 48

BATTERY XN85 1983 (D) (1 2 4 6 15 16 17 18 21 22 24 25 26 27 30 34 39 48
BATTERY XN85 1983 (D) (1 2 4 6 15 16 17 18 21 22 24 25 26 27 30 34 39 48
BATTERY XN85 1983 (D) (1 2 4 6 15 16 17 18 21 22 24 25 26 27 30 34 39 48
prices are in EUR
ref
part #
description
quantity
1
3361049210
ref: 1
BATTERY ASSY (12V)
€ 110.00
2
3365249000
ref: 2
PROTECTOR(20X90)X4
3365249000
€ 2.00
3
3365208410
ref: 3
PROTECTOR,BATTERY
€ 5.00
4
3368031003
ref: 4
HOSE,BATTERY EXHAUST
€ 4.50
5
0940309303
ref: 5
CLAMP
€ 5.50
6
3366134200
ref: 6
COVER,BATTERY
3366134200
€ 6.50
7
0946200009
ref: 7
BAND
0946200009
€ 6.50
8
3385009300
ref: 8
WIRE,STARTER MOTOR LEAD
€ 0.00
9
3382009300
ref: 9
WIRE,BATTERY PLUS
€ 0.00
10
3362409300
ref: 10
CAP,BATTERY PLUS TERMINAL
€ 0.00
11
3674009300
ref: 11
BOX ASSEMBLY,FUSE
3674009300
€ 18.00
12
0948120101
ref: 12
FUSE(20A)
0948120101
€ 2.00
13
4154009300
ref: 13
HOLDER,BATTERY
€ 0.00
14
0912806002
ref: 14
BOLT L:16
0912806002
€ 2.50
15
0916006004
ref: 15
WASHER (6.5X24X1.6)
0916006004
€ 1.50
16
0932008018
ref: 16
CUSHION
0932008018
€ 4.00
17
0918006092
ref: 17
SPACER(6.2X8.3X6.1)
0918006092
€ 4.00
18
0912806006
ref: 18
BOLT(6X20)
0912806006
€ 2.00
19
0916006020
ref: 19
WASHER
0916006020
€ 2.00
20
0932008007
ref: 20
CUSHION
0932008007
€ 4.00
21
0918006038
ref: 21
SPACER(6.1X9X7.5)
0918006038
€ 2.00
22
0932905006
ref: 22
CUSHION
0932905006
€ 2.00
