CYLINDER

XN85 1983 (D) (1 2 4 6 15 16 17 18 21 22 24 25 26 27 30 34 39 48

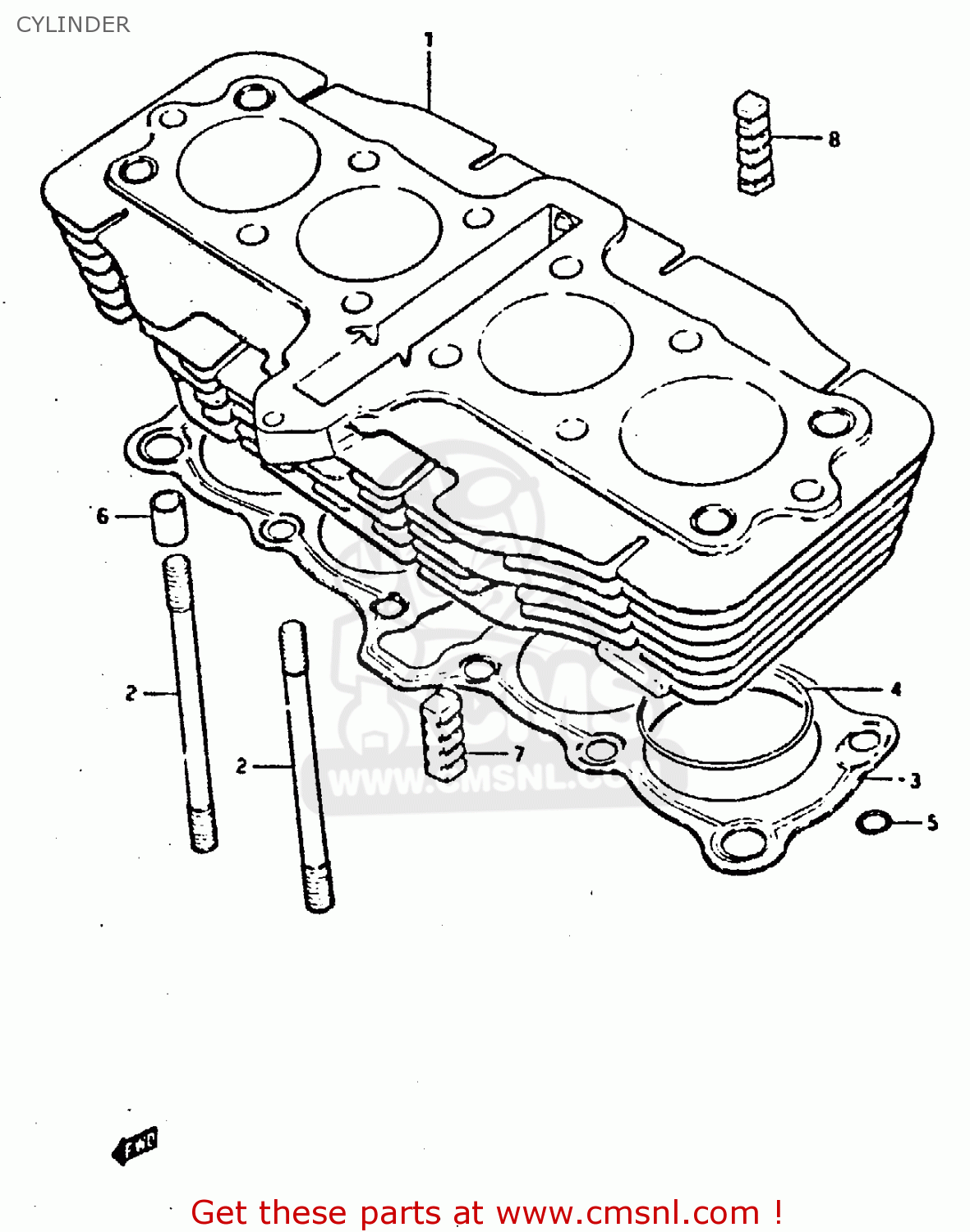

Cylinder diagram XN85 1983 (D) (1 2 4 6 15 16 17 18 21 22 24 25 26 27 30 34 39 48

CYLINDER XN85 1983 (D) (1 2 4 6 15 16 17 18 21 22 24 25 26 27 30 34 39 48

CYLINDER XN85 1983 (D) (1 2 4 6 15 16 17 18 21 22 24 25 26 27 30 34 39 48

prices are in EUR

ref

part #

description

quantity

1

1121009303
ref: 1

CYLINDER

€ 0.00

2

0910810047
ref: 2

STUD

€ 8.50

3

1124109302
ref: 3

GASKET,CYLINDER

€ 20.50

4

0928061001
ref: 4

O RING(D:2,ID:61)

€ 4.00

5

0928012008
ref: 5

O RING(D:2.4,ID:12.3)

€ 3.00

6

0920613001
ref: 6

PIN

€ 2.50

7

1125234200
ref: 7

PAD,CYLINDER

€ 6.50

8

1125334200
ref: 8

PIN,EXHAUST VALVE

€ 6.50
