GEAR SHIFTING

XN85 1983 (D) (1 2 4 6 15 16 17 18 21 22 24 25 26 27 30 34 39 48

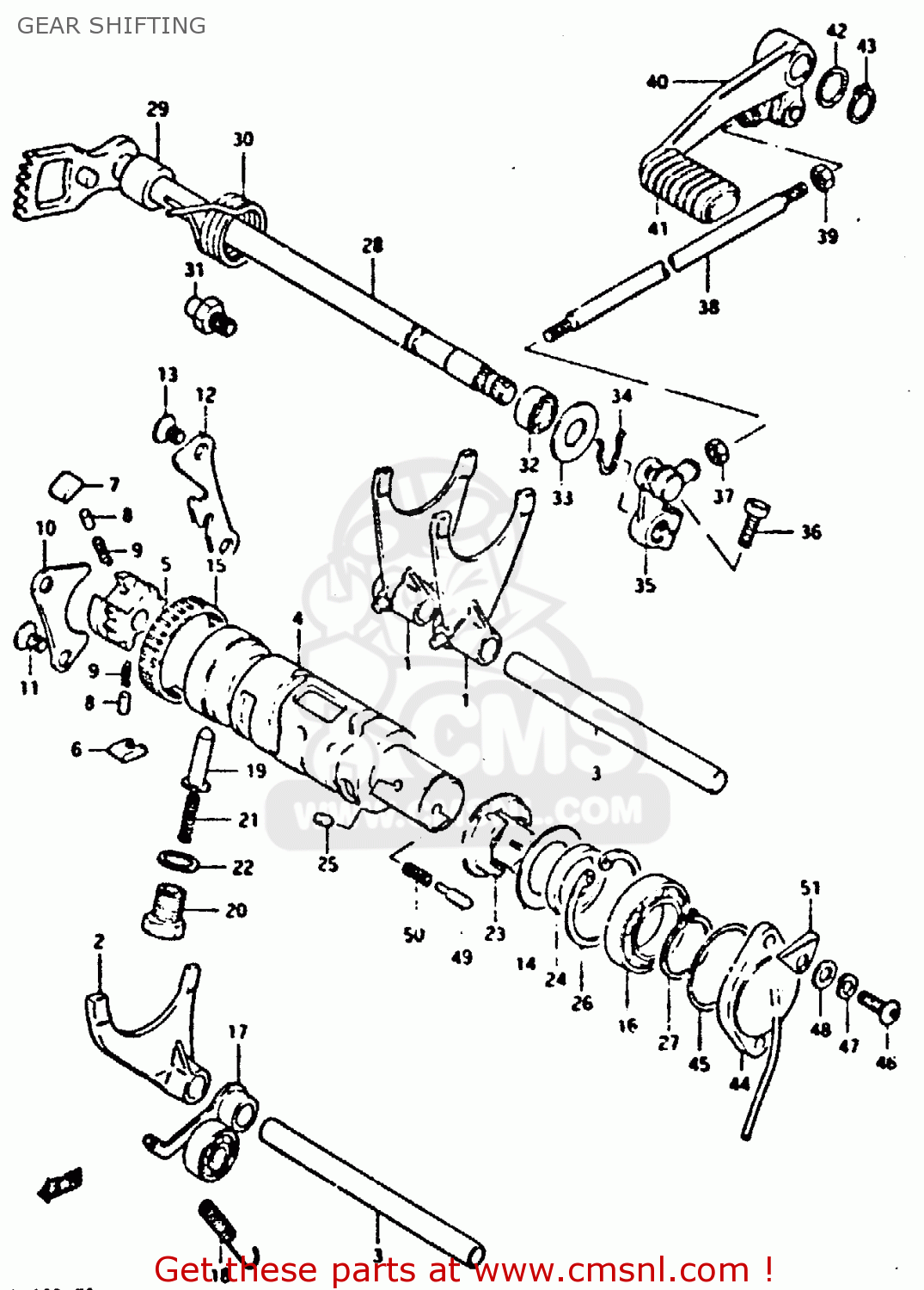

Gear shifting diagram XN85 1983 (D) (1 2 4 6 15 16 17 18 21 22 24 25 26 27 30 34 39 48

GEAR SHIFTING XN85 1983 (D) (1 2 4 6 15 16 17 18 21 22 24 25 26 27 30 34 39 48
GEAR SHIFTING XN85 1983 (D) (1 2 4 6 15 16 17 18 21 22 24 25 26 27 30 34 39 48
GEAR SHIFTING XN85 1983 (D) (1 2 4 6 15 16 17 18 21 22 24 25 26 27 30 34 39 48
prices are in EUR
ref
part #
description
quantity
1
2521109300
ref: 1
FORK,GEAR SHIFT NO.1
€ 0.00
2
2523109300
ref: 2
FORK,GEAR SHIFT NO.3
€ 0.00
3
2541109300
ref: 3
SHAFT,GEAR SHIFT FORK
€ 16.50
4
2531009302
ref: 4
CAM,GEAR SHIFT
€ 0.00
5
2532234200
ref: 5
SHIFTER,GEAR SHIFT CAM
2532234200
€ 14.50
6
2532334200
ref: 6
PAWL,GEAR SHIFT NO.1
€ 6.00
7
2532434200
ref: 7
PAWL,GEAR SHIFT NO.2
€ 6.00
8
0926105003
ref: 8
PIN(5X8)
0926105003
€ 1.50
9
0944004003
ref: 9
SPRING
0944004003
€ 1.50
10
2533109300
ref: 10
LIFTER, PAWL
€ 0.00
11
0212206128
ref: 11
SCREW
0212206128
€ 3.00
12
2534109300
ref: 12
GUIDE,GEAR SHIFT CAM
€ 6.00
13
0212206128
ref: 13
SCREW
0212206128
€ 3.00
14
0821125401
ref: 14
WASHER,THRUST
0821125401
€ 2.50
15
0926343001
ref: 15
BEARING(43X49X12)
0926343001
€ 30.00
16
0811069050
ref: 16
BALL BEARING
0811069050
€ 36.00
17
2535009301
ref: 17
STOPPER,GEAR SHIFTING
€ 23.00
18
0944308019
ref: 18
SPRING
0944308019
€ 2.50
19
2535109300
ref: 19
STOPPER,GEAR SHIFTING
€ 0.00
20
2535430000
ref: 20
HOLDER,GEAR SHIFT CAM STOP SPR
2535430000
€ 6.50
21
0944006020
ref: 21
SPRING
0944006020
€ 14.00
22
0916814004
ref: 22
GASKET(14X19.2X2) (NAS)
0916814004
€ 2.50
23
2538149200
ref: 23
PLATE,GEAR SHIFT CAM STOPPER
2538149200
€ 19.00
24
0918025061
ref: 24
SPACER
€ 0.00
25
0621104063
ref: 25
PIN 4X6
0621104063
€ 2.00
26
0833141428
ref: 26
CIRCLIP,42MM
€ 1.50
27
0833131258
ref: 27
CIRCLIP,25MM
€ 2.00
28
2551009300
ref: 28
SHAFT,GEAR SHIFT
€ 0.00
29
0918012068
ref: 29
SPACER(12X20X15.3)
0918012068
€ 3.00
30
0944426013
ref: 30
SPRING
0944426013
€ 3.50
31
2567101000
ref: 31
STOPPER,GEAR SHIFT CAM
2567101000
€ 3.00
32
0928512002
ref: 32
OIL SEAL
0928512002
€ 7.00
33
0916012020
ref: 33
WASHER (12.5X27X1.6)
0916012020
€ 2.00
34
0938412001
ref: 34
SPRING,RETAINER
0938412001
€ 2.00
35
2552009301
ref: 35
ARM,GEAR SHIFT SHAFT
2552009301
€ 53.50
36
0110706208
ref: 36
BOLT
0110706208
€ 2.00
37
0831011068
ref: 37
NUT
0831011068
€ 2.50
38
2552509300
ref: 38
ROD,GEAR SHIFT LINK
€ 6.50
39
0914006011
ref: 39
NUT
0914006011
€ 1.50
40
2560009302
ref: 40
LEVER ASSEMBLY,GEAR SHIFTING
€ 46.00
41
2565249300
ref: 41
RUBBER,PEDAL
2565249300
€ 5.50
42
0916012011
ref: 42
WASHER(12.5X20X1)
0916012011
€ 1.50
43
0833131128
ref: 43
CIRCLIP
0833131128
€ 2.00
44
3772009300
ref: 44
TERMINAL BASE,NEUTRAL SWITCH
3772009300
€ 54.00
45
0928036001
ref: 45
O RING(D:2.4,ID:36.5)
0928036001
€ 4.50
46
0211205128
ref: 46
SCREW
€ 2.50
47
0832121058
ref: 47
LOCK WASHER
0832121058
€ 2.00
48
0832221058
ref: 48
WASHER
€ 2.50
49
0920905011
ref: 49
PIN(5X15.5)
0920905011
€ 2.00
50
0944004010
ref: 50
SPRING
0944004010
€ 1.50
51
3665109300
ref: 51
CLAMP,WIRING HARNESS
€ 0.00
